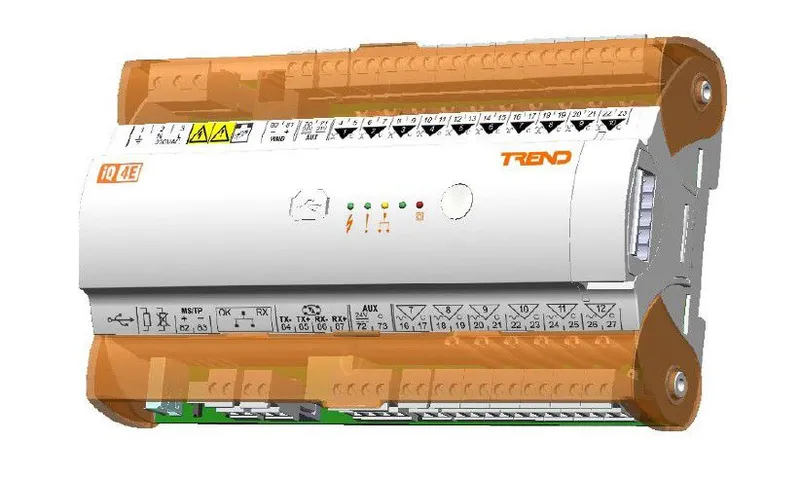

Honeywell – IQ4E -20400561000 IQ™4E Controller

The IQ™4E controller has 10 universal inputs and 6 analogue voltage outputs and is expandable up to 192 points (depending on the controller variant) by adding I/O modules. This flexibility makes it suitable for a broad range of applications. The IQ4E controller uses Ethernet and TCP/IP networking technologies with embedded XML and is fully compatible with other Trend IQ controllers. The IQ4E supports BACnet over IP as standard. Trend communications over a current loop LAN is available as an option. A local PC or display (e.g. IQView4) can be connected to the RS232 port. A Wall bus port is also provided for use with room displays.

Features & Benefits:

I/O bus length up to 300 m (328 yards)

Ethernet 10/100 Mbps main network with TCP/IP protocol

Trend current loop LAN option

Embedded XML Web Services as standard

Wall bus for connection of room displays

RS232 and USB local supervisor/engineering ports

Automatic time synchronization and daylight saving via SNTP

DIN rail mounting, DIN 19 size 2 standard enclosure

Optional IQ Interfacing to Serial and IP MODBUS devices

Certifications:

BACnet™

EN61326-1:2013

230VAC EN61010-1:2010

24VAC UL 60730-1 4th Edition

IQ4E/LAN/230 NO90303

IQ4E/230 NO90304

Honeywell Trend IQ4E -20400561000 — The IQ™4E controller has 10 universal inputs and 6 analogue voltage outputs and is expandable up to 192 points (depending on the controller variant) by adding I/O modules. Discontinued by Honeywell — no longer in the current range. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
