Honeywell IFP-1100U

ULTRA SERIES

MPN
IFP-1100U
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Honeywell parts? We buy surplus →

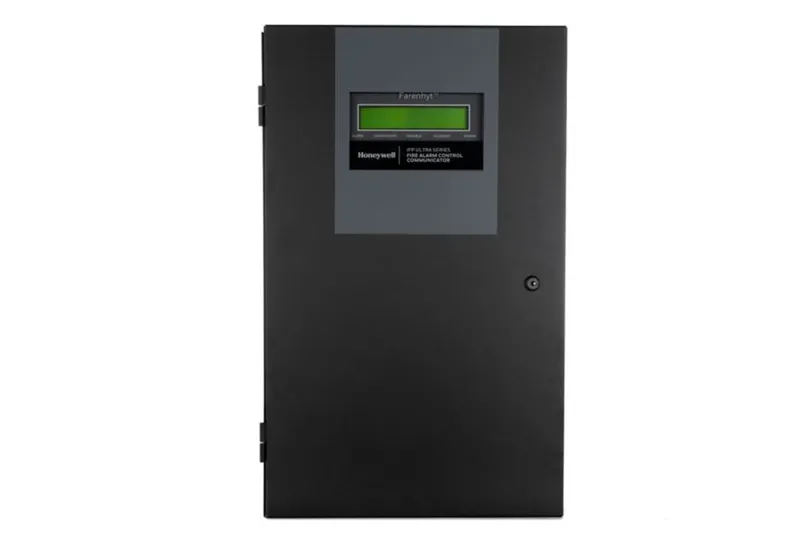

What is the Honeywell IFP-1100U?

The IFP-1100U (red) and IFP-1100B (black) are the latest intelligent addressable FACPs (Fire Alarm Control Panels) from Honeywell’s Farenhyt™ line and are direct replacements for the IFP-1000 and IFP-2000 FACPs. The FACPs have one built-in SLC (signaling line circuit), which can support 159 System Sensor® IDP/SK detectors and 159 IDP/SK modules, or 127 Hochiki® SD protocol devices. Additional SLC loops can be added for a maximum of 1100 (IDP/SK) or 2032 (SD) points per panel.

Features & Benefits:

Complies with UL 864 10th Edition and UL 2572 2nd Edition Standards

Expandable SLC loops to 1100 (IDP/SK) or 2032 (SD) point capacity

Eight Flexput circuits that can be setup for NAC outputs, auxiliary power, soundbase power, or conventional detector zone

Selectable strobe synchronization for Amseco®, System Sensor, Wheelock®, and Gentex® devices

Built-in DACT with IP and optional cellular reporting

Built-in USB interface for quick and easy programming

JumpStart® auto programming reduces installation time

999 software zones and 999 output groups for flexible design options

23 preset notification cadence patterns (including ANSI® 3.41)

Allows up to 63 SBUS devices

Four line LCD display with 40 characters per line

Four programmable function keys

Two programmable relays and one fixed trouble relay

Compatible with SWIFT® wireless devices

Convenient field-upgradeable firmware

Network support for up to 32 Farenhyt Series Black panels

Network card allows copper network connection with a multi-mode or single mode fiber connection

Real-time clock/calendar with automatic daylight savings control

History file with 1,000 event capacity

Available in a red cabinet

Surface mounting or flush mounting cabinet

Honeywell IFP-1100U — The IFP-1100U Series is an addressable fire alarm panel that features an expandable SLC circuit up to 1100 points, eight Flexput circuits, dual-line DACT, powerful software features, and networkability for up to 32 panels. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive

Ordering codes

Part numbers on this product pageIFP-1100U, IFP-1100UB

IFP-1100U: frequently asked questions

When can IFP-1100U be shipped?

IFP-1100U is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up IFP-1100U in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for IFP-1100U and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IFP-1100U, subject to availability and destination.
