Honeywell IDP-MONITOR-10

IDP Intelligent Addressable Monitor Module

MPN
IDP-MONITOR-10
Price and lead time confirmed within 1 business day

Discontinued by Honeywell — we can still source the original IDP-MONITOR-10 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Honeywell parts? We buy surplus →

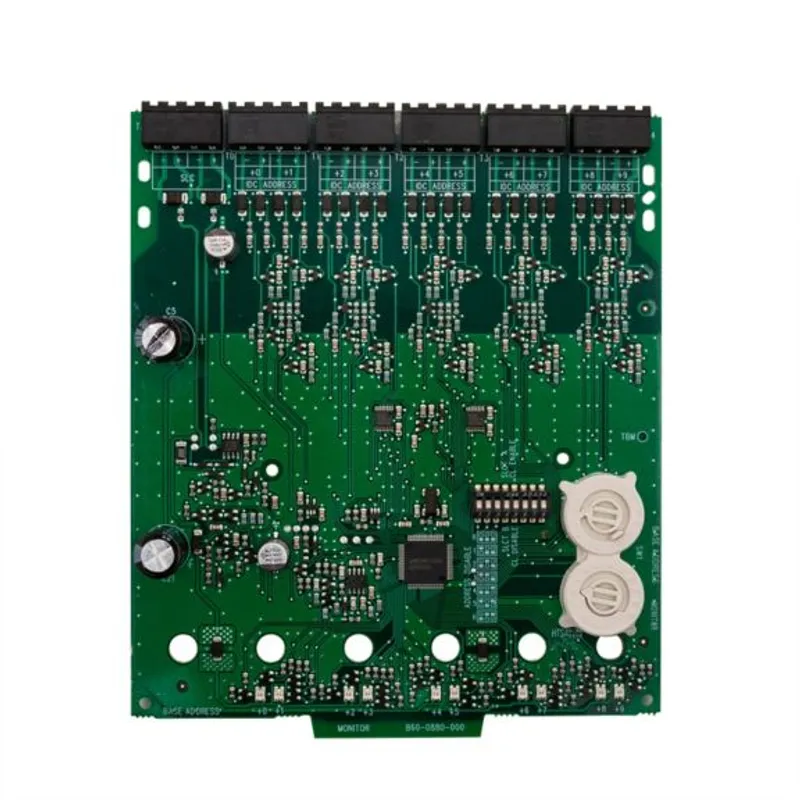

What is the Honeywell IDP-MONITOR-10?

IDP intelligent addressable monitor modules are intended for use in an intelligent alarm system. Each monitor module is intended to interface between a control panel and normally open contact devices, such as pull stations. A common signaling line circuit (SLC) input is used for all modules and the initiating device loops share a common supervisory supply and ground. Otherwise, each monitor operates independently from the others. Each module has its own unique address. A pair of rotary code switches is used to set the address of the first module from 01 to 90. The remaining modules are automatically assigned to the next nine higher addresses. Provisions are included for disabling a maximum of two unused modules to release the addresses to be used elsewhere. Each module also has panel controlled green LED indicators. The panel can cause the LEDs to blink, latch on, or latch off. Features & Benefits:

10 contact monitor

Support for Class A and Class B wiring

Fully supervised

LED indicator for each input

Disable unused addresses

Mount up to two modules in one accessory cabinet (PN IDPACB)

Rotary address switches for fast installation

Removable 12 to 18 AWG plug-in terminal blocks for easy wiring and troubleshooting

Mounting hardware includedCertifications:

UL

CSFM

MEA

Honeywell Farenhyt IDP-MONITOR-10 — IDP intelligent addressable monitor modules are intended for use in an intelligent alarm system. Each monitor module is intended to interface between a control panel and normally open contact devices, such as pull stations. Discontinued by Honeywell — no longer in the current range. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleDiscontinued by Honeywell
Brand lineFarenhyt

Others

BrandFarenhyt
Product TypeModule

IDP-MONITOR-10: frequently asked questions

Can I still buy the IDP-MONITOR-10 now that it is discontinued?

Yes. Honeywell has discontinued the IDP-MONITOR-10, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can IDP-MONITOR-10 be shipped?

IDP-MONITOR-10 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up IDP-MONITOR-10 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for IDP-MONITOR-10 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IDP-MONITOR-10, subject to availability and destination.
