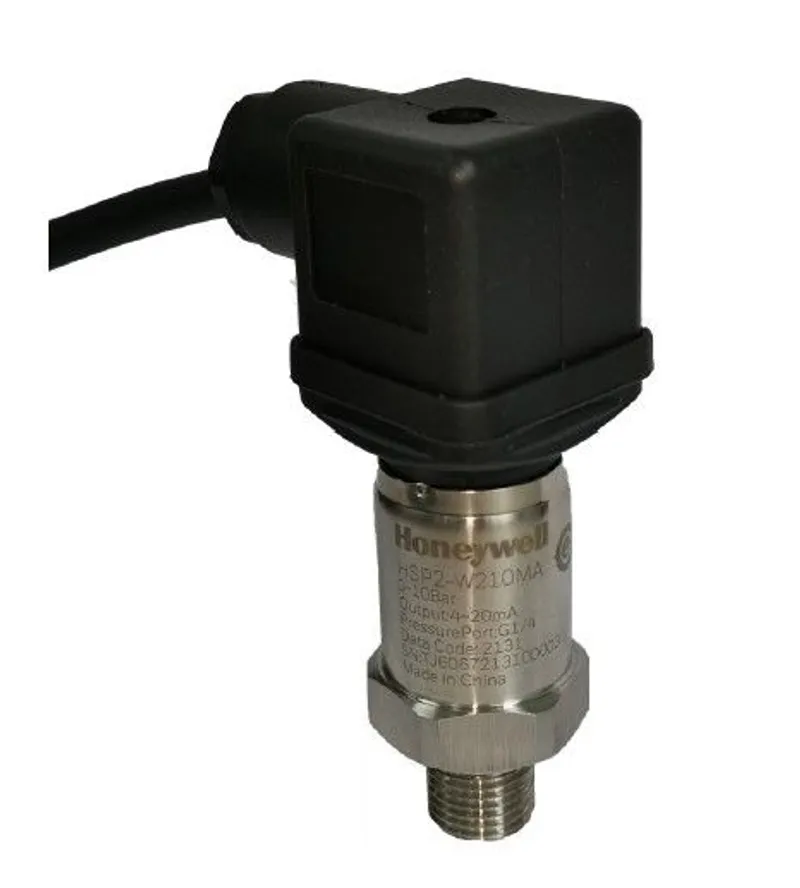

Honeywell – HSP2-W110MA HSP2-W Series Pressure Sensors

HSP2-W series pressure sensors have a standard threaded structure in the lower portion which can be mounted directly on a pipe. High precision sensing components of the sensors make direct contact with media for pressure measurement. The power supply is 12-32Vdc (with output 0-10v) or 8-32Vdc (with output 4-20mA); the measuring range is optional, up to 40Bar; the precision is available in 1% and 0.5%

Features & Benefits:

High-precision, high-quality sensing components

Compact design

Good heat performance

1m extension cable for easy cabling, ensuring the overall IP class

Honeywell HSP2-W110MA — HSP2-W pressure sensors are primarily used for central air-conditioning water systems, as well as for pressure measurement of other liquids or gases with matched properties of temperature, pressure and interfacing materials. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications
