Honeywell – HPF24S6 HPFF8 & HPFF12 Series Notification Appliance Circuit Expander/Power Supply
Discontinued by Honeywell — we can still source the original HPF24S6 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Honeywell Fire Alarm Panels & Modules |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the HPF24S6 now that it is discontinued?
Yes. Honeywell has discontinued the HPF24S6, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can HPF24S6 be shipped?
HPF24S6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up HPF24S6 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for HPF24S6 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for HPF24S6, subject to availability and destination.
Notification Appliance Circuit (NAC) expanders/power supplies are designed to extend the power capabilities of existing NACs (to support ADA requirements and NAC synchronization) and provide power for auxiliary devices. They connect to fire alarm control panels (FACPs) or operate standalone.
Features & Benefits:
UL Listed NAC synchronization using System Sensor®, Wheelock™, or Gentex® appliances
Supports Class A and Class B circuit configuration
Fully supervised NACs
Two fully independent supervised input/output control circuits
Selectable earth-fault detection
AC trouble report selectable for immediate or delayed release
Provides auxiliary continuously-supplied output
Primary Input Power: 120VAC, 60Hz, 3.6A standard; 240VAC, 50Hz, 2.1A on units with E suffix.
Secondary Power: 24 volt operation: two 7-26 AH batteries.
Battery Charging Capacity: 7 to 26 AH batteries. Up to 26 AH batteries.
HPFF8 Cabinet: Holds up to two 18AH batteries
HPFF12 Cabinet: Holds up to two 18AH batteries
Certifications:
HPFF8 Series:
UL Listed: S24562
FM Approved
CSFM: 7315-1637:0102
NYFD: COA#6032
HPFF12 Series:
UL Listed: S24562
Seismic Certification of Non-Structural Electrical Components and Systems
FM Approved
CSFM: 7315-1637:0102
Honeywell HPF24S6 — Notification Appliance Circuit (NAC) expanders/power supplies are designed to extend the power capabilities of existing NACs (to support ADA requirements and NAC synchronization) and provide power for auxiliary devices. Discontinued by Honeywell — no longer in the current range. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Discontinued by Honeywell |
Ordering codes
| Part numbers on this product page | HPF24S6, HPF24S6C, HPF24S6E, HPF24S8, HPF24S8C, HPF24S8E, HPF602ULADA, HPF902ULADA, HPFF12, HPFF12CM, HPFF12CME, HPFF12E, HPFF8, HPFF8CM, HPFF8CME, HPFF8E |
More Honeywell parts
Available on requestHPF01020PHDSNGBD50 Pressure SWITCHES-TRANS Pressure Switch
Available on requestHPF01600PHDSNFAA01 Pressure SWITCHES-TRANS Pressure Switch
Available on requestHPF02400PHDSNFAA01 Pressure SWITCHES-TRANS Pressure Switch
Available on requestHPF02550PHDSNFAD01 Pressure SWITCHES-TRANS Pressure Switch
Available on requestHPGINT HORNET™ Series Paging InterfaceAvailable on requestHPL624 6-12-24V DC General Purpose Power Supply

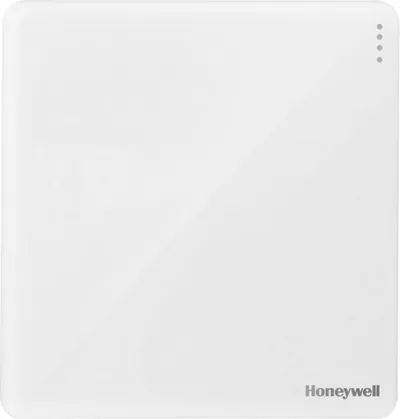

Available on requestHPM1Q/1Y HPM Boshi Bezel-Free Panel Series
