The DS Dialer provides dual telephone line communication between a standalone FACP

or network of FACPs to a central receiving station to report system status. The DS Dialer

mounts in a red enclosure external to a fire panel It uses modular jacks to interface the

primary and secondary phone lines to the public switched telephone network.

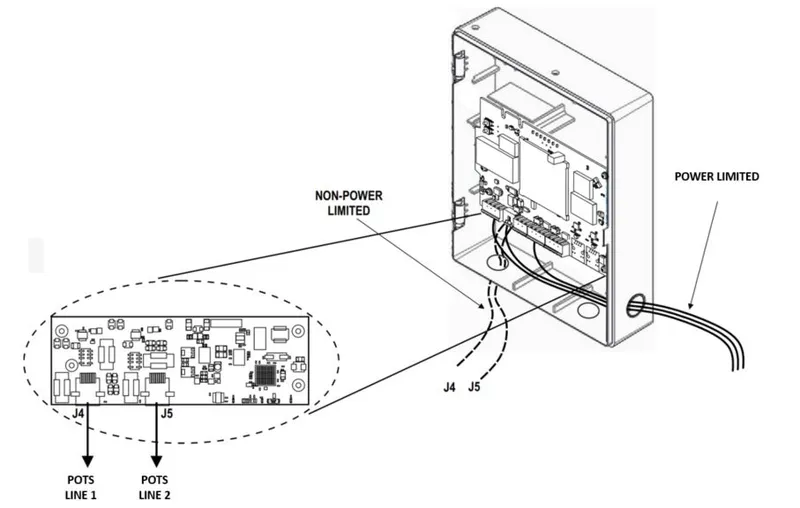

The DS Dialer consists of a main circuit board and telephone (POTS) card enclosed

in a red box.

Features & Benefits:

COMPATIBLE PANELS

NOTIFIER INSPIRE PANELS: N16E, N16X

NOTIFIER ONYX PANELS: NFS-320, NFS-640, NFS2-640, NFS-3030, NFS2-3030

GAMEWELL-FCI E3 SERIES PANEL: ILI-MB-E3, ILI95-MB-E3

GAMEWELL-FCI S3 SERIES PANELS: SLP-E3

COMPATIBLE RECEIVERS

Ademco™ 685 (with 685-8 Line card with Rev. 4.4d software)

Ademco MX8000 (with 124060V206B and 124063 Line Card Rev. B)

Silent Knight® 9500 (with version V2.4 receiver and 126047 Line Card Rev. G)

Silent Knight 9800 (with 124077V2.00 receiver and 126047 Line Card Rev. M)

Honeywell® FBI CP220FB (with software version 3.9)

Osborne Hoffman 2000E® (with receiver software version 7301)

Radionics 6600 (with 01.01.03 receiver software and 01.01.03 line card)

SurGard MLR2 (with software version 1.86)

SurGard System III (with software 1.72)

SurGard MLR-2000 (with DSP4016 and version 1.6 Line Card)

COMMUNICATION FORMATS

Ademco Contact ID

FEATURES AND BENEFITS

Collects system data from the connected FACP and sends it to the central receiving station

Serves as a fire alarm communicator to the central station

Provides dual telephone lines (primary and backup) to ensure communication

Provides dual telephone line voltage detection

Employs Ademco® Contact ID protocols

Recognizes dial tones (350 and 440 hertz typical in most networks)

Automatically dials programmed central station phone numbers

Automatic line seizure takes control and disconnects any local premises phones on the same line

Generate Central Station reports using CLSS Site Manager

LED status indicators for Lost Panel Connection, and Central Station Handshake Signal, and Communication

Failure

Communicates vital system status including:- Independent zone/point alarm, trouble and supervisory- Security, panel off-normal, NAC trouble- AC (main) power loss (2-hour report delay)

Certifications:

AGENCY LISTINGS & APPROVALS

The listings and approvals below apply to the HON-DACT-DS.

In some cases, certain modules may not be listed by certain approval agencies, or listing may be in process. Contact Honeywell for the latest listings.

ETL: Control Number - 5025335, Conforms to UL STD 864

STANDARDS & CODES

FCC ID: DS Dialer - 1W6AL02ACGWMB

National Fire Protection Association:- NFPA 70- NFPA 72
