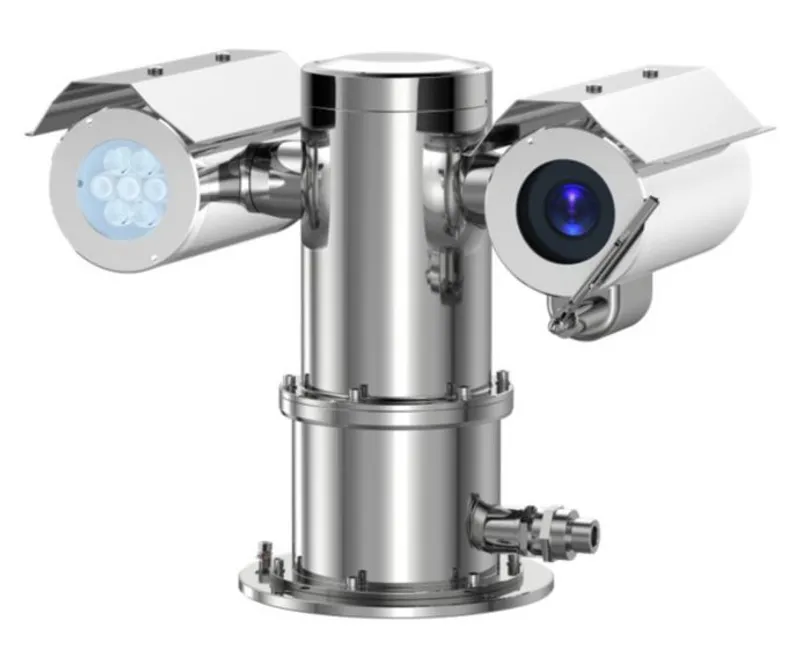

Honeywell – HAS1CNME-C S1 Series Explosion-Proof Camera

The S1 series Explosion proof camera features a 316L stainless steel housing certified for hazardous areas according to ATEX, IECEx. The housing prevents any interior sparks or explosions from escaping and igniting the gases or dust in the surrounding air. The cameras provide extremely crisp video with up to 5MP resolution, 30x optical zoom, and True Day/Night WDR for continuous surveillance in both hazardous and safe area applicationsThe cameras offer exceptional picture clarity even in low light conditions and include smart motion detection based on humans and vehicles to reduce false alarms. They feature flexible system integration, easy installation, and secure data transmission to reduce regulatory compliance, installation and operating costs and increase productivity and efficiency.

Features & Benefits:

5MP resolution available in fixed IR bullet and IR PTZ models and 4MP Non IR speed dome model

30x optical zoom (Bullet/PTZ), 18x optical zoom (dome)

Smart IR technology with detection up to 200m provides even distribution of IR LEDs in dimly lit or nighttime scenes (Bullet/PTZ)

Excellent low-light performance with 2D/3D noise reduction, saving storage and bandwidth together with smart codec

True WDR (120dB) ensures glare-free images

ONVIF Profile S, G, T, M compliant

Input Power options: 100-240Vac, 24Vac, POE++, 24Vdc

Armoured and Unarmoured cable options- 3m, 5m, 10m

Built-in Fiber optic converter: 100base-T Single mode, 1000Base-T Single mode (Duplex)

Optional anti-corrosion coating to further enhance the corrosion resistance of the camera body (-AC/-BC/-CC/-DC)

Fully NDAA compliant camera containing no content or material from any companies or their subsidiaries prohibited under US National Defense Authorization Act (NDAA) Section 889

Certifications:

CE

ATEX

IECEx

IP66,IP68,IP69The cameras are certified for use in

Gas Zone 1 & 2 (Class IIA, IIB, IIC) and

Dust Zone 21 & 22 (Class IIIA, IIIB, IIIC)

Honeywell Honeywell Security HAS1CNME-C — Honeywell’s latest S1 series explosion-proof cameras is a good fit for onshore, offshore, marine, and heavy industrial installations in hazardous and challenging environments. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications
