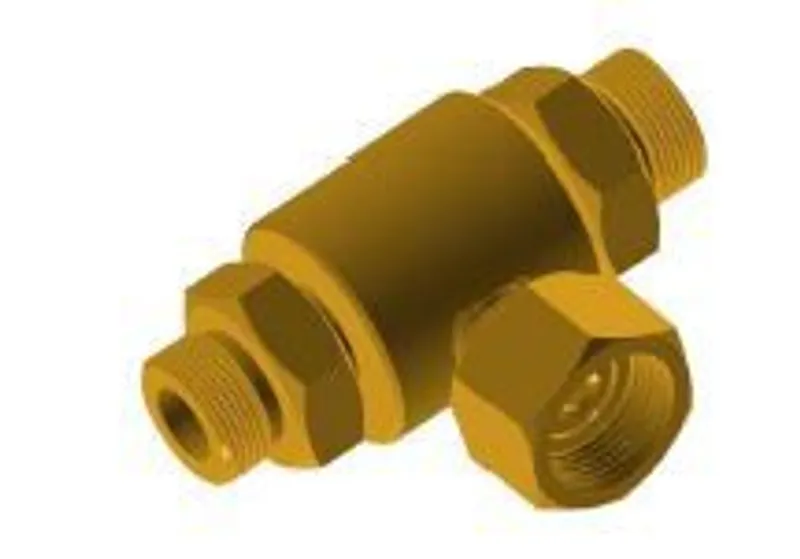

Honeywell H-304042

Discharge Valve

MPN
H-304042
Price and lead time confirmed within 1 business day

Discontinued by Honeywell — we can still source the original H-304042 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Honeywell parts? We buy surplus →

What is the Honeywell H-304042?

Discharge valve for use in Inert fire extinguishing systems. The valve has built-in pneumatic activation for inter-system activation, back pressure activation and mechanical activation interface.

The discharge outlet is connected internally to the Pneumatic Actuator (PA) via a check valve (the check valve allows pressure from the discharge side to enter the actuator side), this allows for the

discharge port to be used as activation port also (back pressure), hence eliminating the need for PA circuitry between valves connected to the same manifold. When more than one manifold is used, the PA system must be connected to at least one IV8 valve on each manifold. The port for the PA function works as both inlet and outlet, hence the same connection is used on both pilot and slave cylinders, and the pilot cylinders can be placed anywhere in the line of IV8 valves. All equipment connected to the PA connection must be rated at 300/400 bar. The standard valve is classified as a Type 2 valve, as it has a built-in burst disc which relieves pressure to the open.

Features & Benefits:

200 Bar/ 300 bar

Certifications:

UL & FM

Honeywell H-304042 — Inert Suppression System. Discontinued by Honeywell — no longer in the current range. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleDiscontinued by Honeywell

Ordering codes

Part numbers on this product pageH-304042, H-304043, H-305410, H-305410-60, H-305410-62, H-305411, H-305420, H-305420-60, H-305420-62, H-305421, H-306201, H-508124

H-304042: frequently asked questions

Can I still buy the H-304042 now that it is discontinued?

Yes. Honeywell has discontinued the H-304042, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can H-304042 be shipped?

H-304042 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up H-304042 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for H-304042 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for H-304042, subject to availability and destination.
