Home / Honeywell / Honeywell Gas & Flame Detection / FS20XP-SMGXM FS20X Plus - UV3IR - SS - M25 kit includes marine mount and sunshade

Available on request

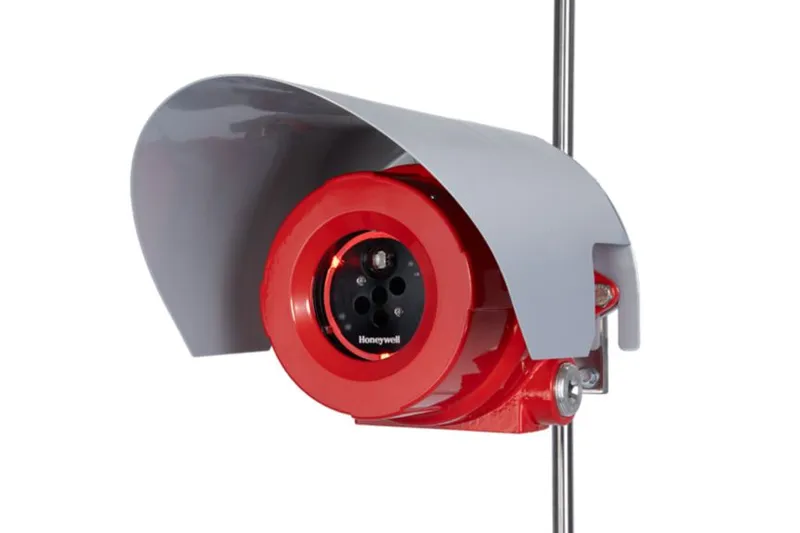

Honeywell – FS20XP-SMGXM FS20X Plus - UV3IR - SS - M25 kit includes marine mount and sunshade

MPN: FS20XP-SMGXM · Brand: Honeywell

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Honeywell Gas & Flame Detection
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can FS20XP-SMGXM be shipped?

FS20XP-SMGXM is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FS20XP-SMGXM in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FS20XP-SMGXM and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FS20XP-SMGXM, subject to availability and destination.

Part of Honeywell's FS20X Plus range. The FS20X Plus UV/3IR flame detector using Honeywell’s WideBand IR infrared technology with the addition of ultraviolet (UV) offers a flexible solution which can quickly and reliably detect Hydrocarbon, non-Hydrocarbon, and Hydrogen fires – with increased ranges of detection – even in the presence of environmental inhibitors like rain, fog and smoke.Often suitable for hazardous locations, the FS20X Plus has several marine certifications and is SIL2 rated for safety instrumented system applications.Features & Benefits:

Reliable Detection

Fast response to a wide range of Hydrocarbon, non-Hydrocarbon, and Hydrogen fires even in low visibility conditions

Advanced diagnostics including window clarity to maintain site protection

Wideband sensing technology can offer safety coverage even in limited visibility

No field calibration required, simple bump with test lamp

Electro-optical module enables quick replacement in the field

PC App allows simple set-up and interrogation including access to Event Logs and FirePics.

HART 7, Modbus, and relay outputs included

New marine mount with graduated movement and 2 axles of movement enables simple mechanical installation and alignment

HazLoc, performance, Marine and safety certified

Comprehensive kit includes detector, enhanced sunshade and mount as standardAt a Glance Instrument Status

High Visibility, Multi Color LED HALO ring provides clear indication of device status from up to 50ft (15m) away, even in bright outdoor environmentsQuick Specs:

Long-range, wide-angle sensors detect fires at 220ft (67m) for 1ft2 (0.1m2) n-Heptane

Communication options such as Modbus, HART7, Relays, mA (source, sink, or isolated) are included as standard

Responds to a wide range of fuel such as n-Heptane, IPA, Methane, Butane, Propane, Ethanol, Methanol, Diesel, Kerosene, JP-4, JP-A, JP-5, JP-8, Class A (Paper), Syngas, Acetylene, Silane, and Hydrogen

Speed of response typically 5 secondsEven the best products deserve expert maintenance!Elevate your gas detectors’ potential with Honeywell's expert maintenance services!Maximize uptime, minimize costs, and ensure timely project completion.Explore our fixed, portable, and high-tech support services now!

Honeywell FS20XP-SMGXM — FS20X Plus - UV3IR - SS - M25 kit includes marine mount and sunshade. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
