Honeywell – E-LGSC1000 Dent Split-Core Current Sensors (Medium/Large)

MPN: E-LGSC1000 · Brand: Honeywell

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Honeywell HVAC Field Devices (valves, actuators, sensors)
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can E-LGSC1000 be shipped?

E-LGSC1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up E-LGSC1000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for E-LGSC1000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for E-LGSC1000, subject to availability and destination.

Ideal for a variety of applications including building automation, tenant submetering, performance verification, energy management, and new technology assessment.

The Split Core Series CTs are CUL/US 2808 listed as recognized components, CE listed, RoHS compliant, and are 600V CAT III rated devices. They are available for current inputs up to 1000 Amps with 3M (9.8′) long, 22 AWG twisted pair leads.

Features & Benefits:

Available in two window sizes: Medium 1.25″ and Large 2.0″

Output is 333mV at rated current

Internal precision burden resistor across secondary

3M (9.8′) twisted pair leads standard, terminated in ferrule for easy connection to Honeywell X-Mon Branch Circuit Meter

Typical accuracy is +/- 1% (measured from 10% to 130%)

Core blades are shrouded for protection during installation

Core is interleaved at joints for accuracy

Certifications:

cULus Listed

CE Mark

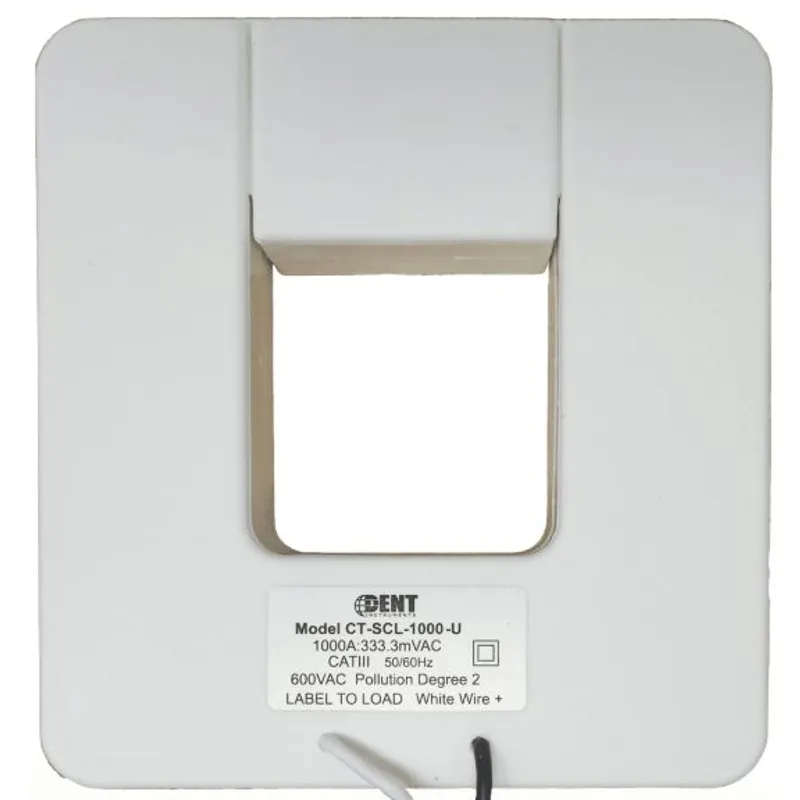

Honeywell E-LGSC1000 — DENT’s Split Core Rectangular Slide-Out Current Transformers are designed for easy installation over existing high-current loads without requiring a line or load disconnect. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
