Honeywell DAX-3525

DAX Series Digital Audio Amplifiers

MPN
DAX-3525
Price and lead time confirmed within 1 business day

Discontinued by Honeywell — we can still source the original DAX-3525 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Honeywell parts? We buy surplus →

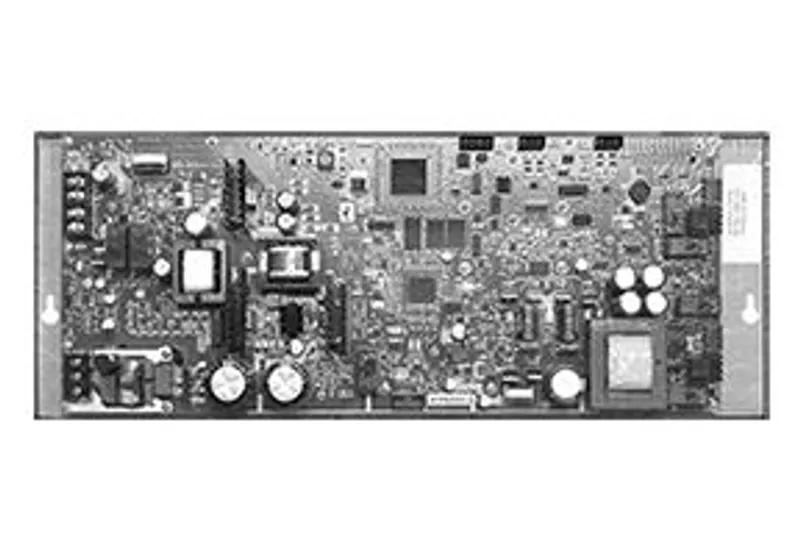

What is the Honeywell DAX-3525?

The DAX Series Amplifiers are multi-featured amplifiers that provide an economical alternative for applications that do not require all of the features of DAA2 or DAA Series Amplifiers. DAX amplifiers come in 35 watt and 50 watt models. The BDA Backup Digital Amplifier can be used with all DAX models to provide one-to-one amplifier backup.

The DAX has two wire digital audio ports to connect to wire DAL segments. Either or both ports may be converted to fiber using DS-FM, DS-SFM or DS-RFM fiber option modules. Up to 32 devices, such as DAX amplifiers, can be connected to the DAL (digital audio loop) on one DVC Digital Voice Command unit. DAX amplifiers may be mixed with DAA2 and DAA series amplifiers on the same DAL. DAX amplifiers can store backup alarm and trouble messages that can be activated in the event of loss of DAL communication. Features & Benefits:

Supports one Class A high-level audio output, or two Class B outputs to distribute one channel of digital audio

Audio output activation via network control-by-event equations resident within the DVC

Two wire digital audio ports that can be converted to fiber using fiber option modules. Support Style 4 or 7 configurations

Isolated alarm bus input, to be used for backup activation of alarm messages when normal digital communication is lost

Programmable through VeriFire® Tools

Up to 106 seconds of backup digital message storage for use in the event of communication loss (from the VeriFire® Tools message library, or created by the installer)

Battery charger with disable function that provides battery sharing option for up to four DAXs.Certifications:

UL Listed: S635

ULC LIsted: S635

CSFM: 7165-0028:0234 (NFS2-640/NFS-320), 7165- 0028:0224 (NFS2-3030)

Fire Dept. of New York: COA#6121 (NFS2-640/NFS-320), COA#6114 (NFS2-3030).

Honeywell NOTIFIER DAX-3525 — Digital Audio Amplifier With Fiber Option Module, DVC Audio Loop, Backup Alarm, Multi-Featured Amplifiers That Provide An Economical Alternative For Applications That Do Not Require All Of The Features Of DAA2 or DAA Series Amplifiers. Discontinued by Honeywell — no longer in the current range. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleDiscontinued by Honeywell
Brand lineNOTIFIER

Others

BrandNOTIFIER

Ordering codes

Part numbers on this product pageDAX-3525, DAX-3525E, DAX-3570, DAX-3570E, DAX-5025, DAX-5025E, DAX-5070, DAX-5070E

DAX-3525: frequently asked questions

Can I still buy the DAX-3525 now that it is discontinued?

Yes. Honeywell has discontinued the DAX-3525, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can DAX-3525 be shipped?

DAX-3525 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up DAX-3525 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for DAX-3525 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DAX-3525, subject to availability and destination.
