Honeywell D4S

InnovairFlex™ 4-Wire Photoelectric Sensor

MPN
D4S
Price and lead time confirmed within 1 business day

Discontinued by Honeywell — we can still source the original D4S (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Honeywell parts? We buy surplus →

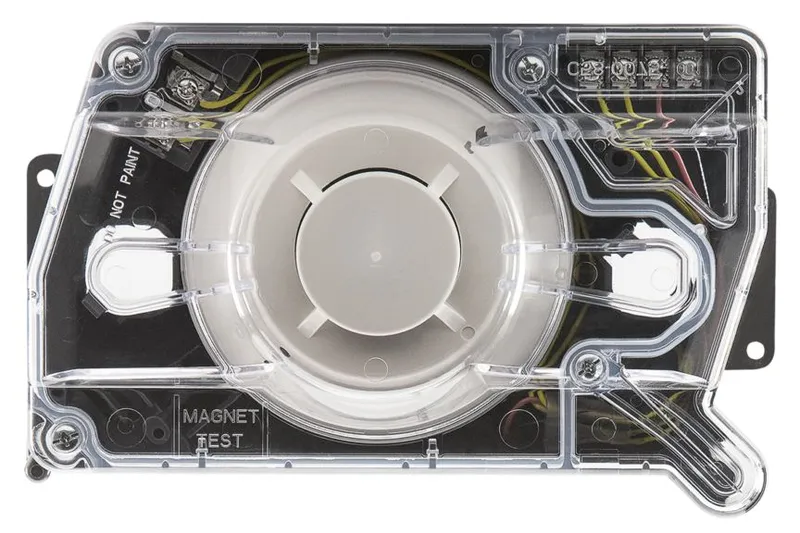

What is the Honeywell D4S?

The InnovairFlex D4120 4-wire photoelectric duct smoke detector features a pivoting housing that fits both square and rectangular footprints and mounts to round or rectangular ductwork. This unit senses smoke in the most challenging conditions, operating in airflow speeds of 100 to 4,000 feet per minute, temperatures of –4°F to 158°F, and a humidity range of 0 to 95 percent (non-condensing). A plug-in sensor head offers improved false alarm immunity and simple installation, testing, and maintenance. An improved cover design isolates the sensor head from the low-flow feature for simple maintenance.

The InnovairFlex housing provides ample wiring space, a ¾-inch conduit knockout, and built-in short circuit protection to prevent damage to sensitive components during installation. High contrast terminal designations make wiring easy. With its 2:1 sensor-to-power capability, the power board of the D4120 may be used to monitor a second sensor, D4S, simultaneously (i.e., supply and return side). As many as 50 InnovairFlex detectors can be interconnected. When one unit senses smoke, all interconnected detectors will switch their relays; only the detector sensing smoke will go into alarm, thus pinpointing the fire source.

Features & Benefits:

4-Wire Photoelectric, integrated low-flow technology

Air velocity rating from 100 ft/min to 4,000 ft/min (0.5 m/s to 20.32 m/sec)

Versatile mounting options: square or rectangular configuration

Plug-in sensor offers superb false alarm immunity and the latest sensor technology

Broad ranges for operating temperature (–4°F to 158°F) and humidity (0% to 95% non-condensing)

Rotary address switches

Patented sampling tube installs from front or back of the detector with no tools required

Increased wiring space with a newly added ¾-inch conduit knockout

One easy-access Test/Reset button and improved LED status

Patented interconnect feature for multi-fan shutdown

New high contrast terminal designations

Built-in short circuit protection from operator wiring errors

Field selectable settings for configuring the detector

Two DPDT Form-C relay contacts

24 VAC/DC or 120 VAC

Backward compatibility with existing Innovair products, including remote accessories

Certifications:

UL S911

FM 3033744

CSFM 3242-1653:0207

Honeywell Farenhyt, Gamewell-FCI, NOTIFIER D4S — The InnovairFlex™ Series are the only duct smoke detectors flexible enough to fit configurations from square to rectangular and everything in between. Discontinued by Honeywell — no longer in the current range. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleDiscontinued by Honeywell
Brand lineFarenhyt, Gamewell-FCI, NOTIFIER

Others

BrandFarenhyt, Gamewell-FCI, NOTIFIER
