Honeywell D2XS2FDC024CN1A1R

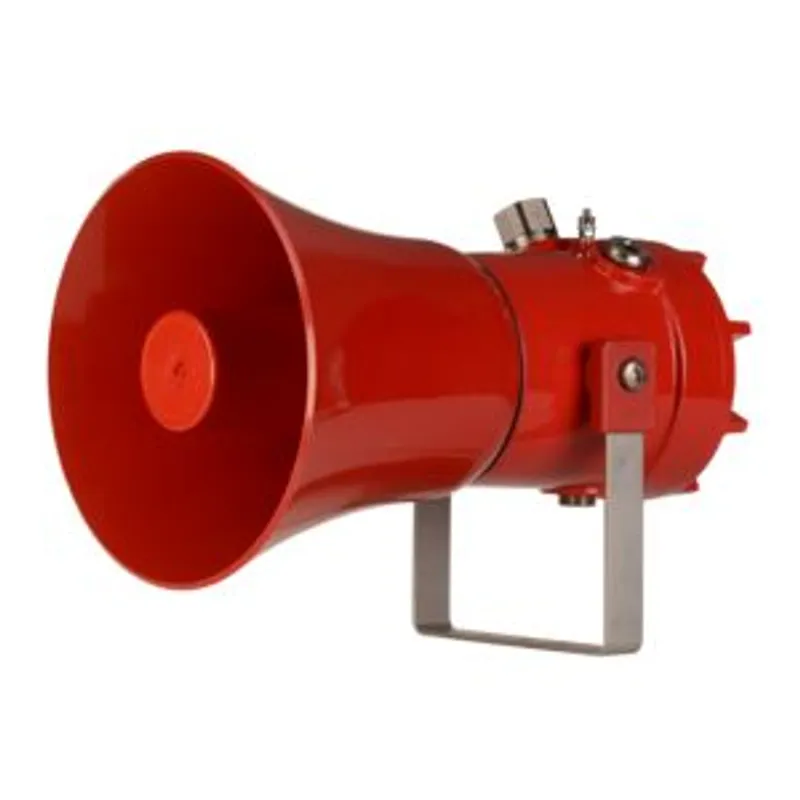

D2xS2F Alarm Horn Sounder 123dB +/-3dB at 10'

MPN
D2XS2FDC024CN1A1R
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Honeywell parts? We buy surplus →

What is the Honeywell D2XS2FDC024CN1A1R?

The D2xS2F is a high performance globally certified alarm horn sounder featuring a sound output of up to 123dB(A). The robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure is approved for Class I & II Div 2, Zone 2 & 22, IECEx and ATEX Zone 2 & 22 hazardous location signalling applications.

Featuring 64 alarm tones, each of the 4 stage/channels can be remotely activated. Class D amplification with a choice of two power modes. The threaded enclosure cover, multiple cable entries and duplicated, pluggable termination simplifies installation and routine maintenance. The 24Vdc version is approved for public mode fire alarm use and the 100-240Vac version for general signalling use. SIL1 & SIL2 Route 2H compliant to IEC61508 (2010) as standard.

Features & Benefits:

Maximum sound pressure level output of 123dB(A)

Choice of 64 alarm tone frequencies

4 remotely selectable alarm stages/channels

Positive or negative line stage/channel switching

Automatic synchronisation on multi-sounder system

Stainless Steel mounting bracket included as standard

Triple cable entries

Available with custom tone configurations and frequencies

Robust marine grade aluminium enclosure

UL464 Public mode fire alarm use

CAN/ULC S525 Audible Signaling Devices for Fire Alarm

Certifications:

UL/cUL/ULC File ref: E230764

IECEx Certificate: IECEx ULD 19.0008X

ATEX Certificate: DEMKO 19 ATEX 2141X

UKCA certificate: UL21UKEX2132X

CSFM listing: 7136-2279:0503

SIL1 & SIL2 compliant to IEC61508 (2010)

Honeywell D2XS2FDC024CN1A1R — The D2xS2F is a horn sounder has a sound output of up to 123dB(A). The Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure is approved for Class I & II Div 2, Zone 2 & 22, IECEx and ATEX Zone 2 & 22 hazardous location applications. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive

D2XS2FDC024CN1A1R: frequently asked questions

When can D2XS2FDC024CN1A1R be shipped?

D2XS2FDC024CN1A1R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up D2XS2FDC024CN1A1R in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for D2XS2FDC024CN1A1R and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for D2XS2FDC024CN1A1R, subject to availability and destination.
