Honeywell – D2XC2LD3024BN0H1RC D2xC2LD3 UL464/UL1971 Horn & LED Synchronized

Name: Honeywell – D2XC2LD3024BN0H1RC D2xC2LD3 UL464/UL1971 Horn & LED Synchronized
Brand: Honeywell
SKU: D2XC2LD3024BN0H1RC

MPN: D2XC2LD3024BN0H1RC · Brand: Honeywell

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Honeywell Notification, Voice Alarm & Emergency Lighting
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can D2XC2LD3024BN0H1RC be shipped?

D2XC2LD3024BN0H1RC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up D2XC2LD3024BN0H1RC in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for D2XC2LD3024BN0H1RC and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for D2XC2LD3024BN0H1RC, subject to availability and destination.

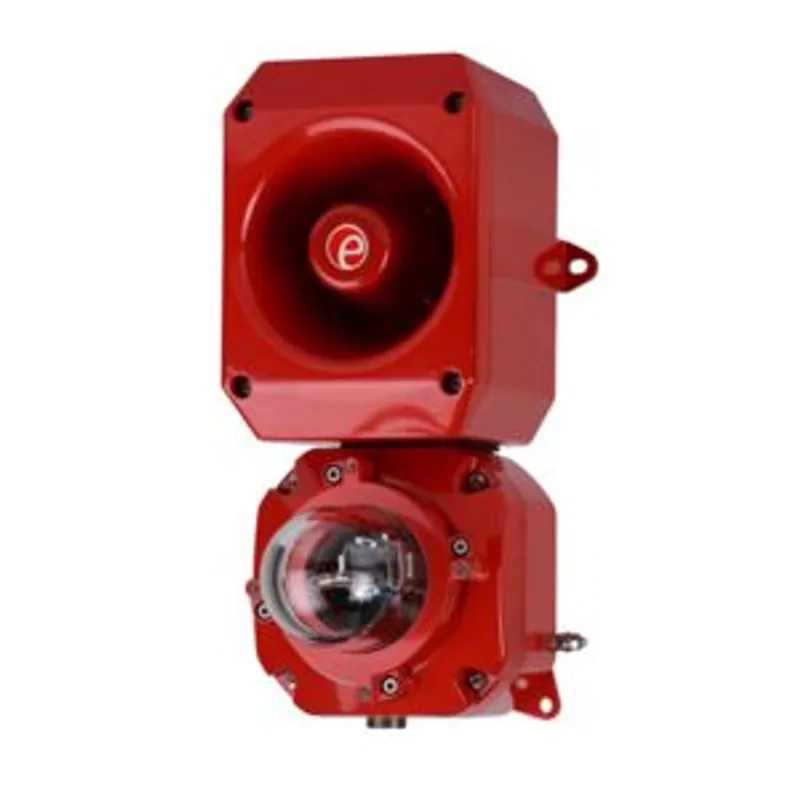

The haz loc D2xC2LD3 is an auto-synchronizing alarm horn & LED warning light / beacon tested to UL464 & UL1971 suitable for public mode fire alarm, ADA compliant, hearing impaired applications. UL1971 rating of 79.3cd. NFPA 72 compliant 20ms pulse.

The D2xC2LD3 utilises an array of super high power Cree® LED’s, orientated to optimise visibility in any direction. The 20ms pulse creates an intense flash comparative to a Xenon strobe. Multiple D2xC2LD3 units will auto-synchronize when powered from the same power source removing the need for any additional sync modules on the circuit. The horn & LED light can be powered from the same source, simplifying installation and reducing cabling costs. UL1971 effective candela rating of 79.3cd. The unit is UL/cUL, ULC, IECEx and ATEX approved for hazardous locations.

Features & Benefits:

Public mode fire use UL1971 & CAN/ULC-S526

Private mode fire use UL1638

Auto-synchronized for over 2 hours per UL1971

79.3 eff. candela – UL1971 Public mode fire

107.5 eff. candela – UL1638 Private mode fire

252.0 eff. candela – UL1638 General signaling

107dB(A) @ 10ft/3m max. sound output

64 alarm tones, 4 remotely selectable alarm stages/channels

Choice of four UL1971 tested flash rates: 1Hz, 1.3Hz, 1.5Hz & 2Hz

Marine grade aluminium enclosure

Ingress protection Type 4/4X/3R/13, IP66

High impact resistant Borosilicate glass lens

Duplicate, pluggable cable terminations

Supervisory diode

Dual 1/2"NPT entries

Supplied with haz loc rated stopping plugs/adaptors

Certifications:

UL File ref: E230764

IECEx cert: IECEx ULD 14.0004X

ATEX cert: DEMKO 14 ATEX 4786493904X

Honeywell D2XC2LD3024BN0H1RC — The haz loc D2xC2LD3 is an auto-synchronizing alarm horn & LED warning light / beacon tested to UL464 & UL1971 suitable for public mode fire alarm, ADA compliant, hearing-impaired applications. UL1971 rating of 79.3cd. NFPA 72 compliant 20ms pulse. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
