Home / Honeywell / Honeywell Notification, Voice Alarm & Emergency Lighting / D2XB1LD3024MN0H1RC D2xB1LD3 UL1971 Haz Loc Synchronized LED Light

Available on request

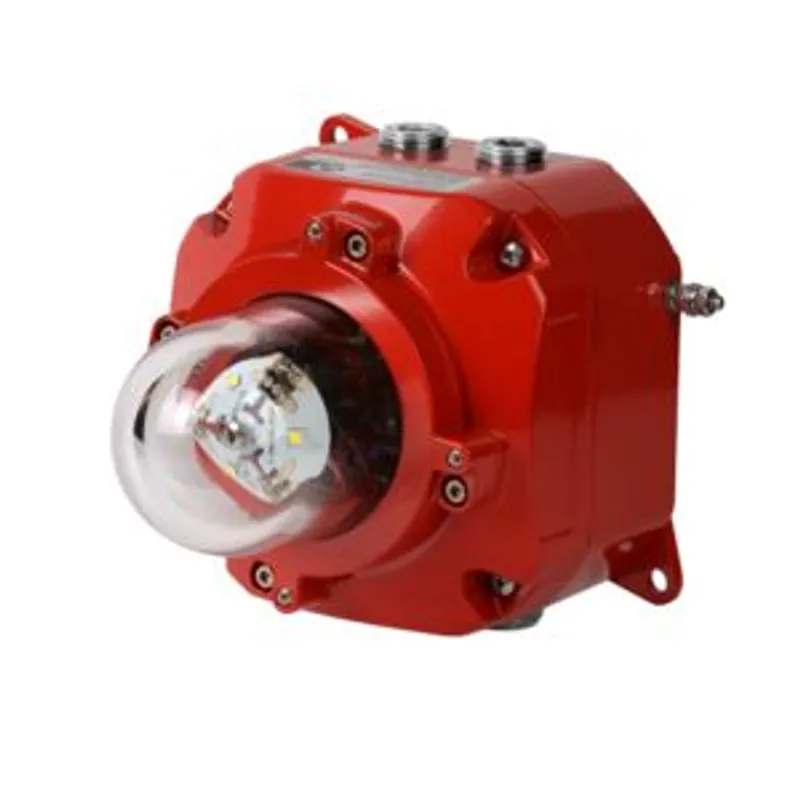

Honeywell – D2XB1LD3024MN0H1RC D2xB1LD3 UL1971 Haz Loc Synchronized LED Light

MPN: D2XB1LD3024MN0H1RC · Brand: Honeywell

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Honeywell Notification, Voice Alarm & Emergency Lighting
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can D2XB1LD3024MN0H1RC be shipped?

D2XB1LD3024MN0H1RC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up D2XB1LD3024MN0H1RC in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for D2XB1LD3024MN0H1RC and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for D2XB1LD3024MN0H1RC, subject to availability and destination.

The haz loc D2xB1LD3 is an auto-synchronizing LED warning light / beacon tested to UL1971 for public mode fire alarm, ADA compliant, hearing impaired applications. UL1971 effective candela rating of 82.1cd. NFPA 72 compliant 20ms pulse.

The D2x1BLD3 utilizes an array of super high power Cree® LED’s, orientated to optimize visibility in any direction. The 20ms pulse creates an intense flash comparative to a Xenon strobe. Multiple D2xB1LD3 units will auto-synchronize when powered from the same power source removing the need for any additional sync modules on the circuit. The D2xB1LD3 contains a supervisory diode and duplicated pluggable terminals that not only simplify installation but also enable a 4 wire connection. The unit is UL, cUL, ULC, ATEX and IECEx approved for hazardous area applications.

Features & Benefits:

Public mode fire use UL1971 & CAN/ULC-S526

Private mode fire use UL1638

82.1 eff. candela – UL1971 Public mode fire

112.5 eff. candela – UL1638 Private mode fire

252.0 eff. candela – UL1638 General signaling

Ultra low operating current of 153mA

In rush limiting circuit: 1.18A

Choice of four UL1971 tested flash rates: 1Hz, 1.3Hz, 1.5Hz & 2Hz

Marine grade aluminum enclosure

Ingress protection Type 4/4X/3R/13, IP66

High impact resistant Borosilicate glass lens

Duplicate, pluggable cable terminations, supervisory diode

Surface mounting via user installed lugs

Pendant mounting via 3/4"NPT conduit entry

Dual 1/2"NPT and M20 cable entries

Supplied with haz loc rated stopping plugs/adaptors

UL Marine approved

Certifications:

UL/cUL File ref: E245313

IECEx certficate: IECEx ULD 14.0004X

ATEX certificate: DEMKO 14 ATEX 4786493904X

Honeywell D2XB1LD3024MN0H1RC — The haz loc D2xB1LD3 is an auto-synchronizing LED warning light / beacon tested to UL1971 for public mode fire alarm, ADA compliant, hearing-impaired applications. UL1971 effective candela rating of 82.1cd. NFPA 72 compliant 20ms pulse. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
