Home / Honeywell / Honeywell Notification, Voice Alarm & Emergency Lighting / D1XS1FDC024CN1A1R D1xS1F Alarm Horn Sounder 115dB +/-3dB at 10'

Available on request

Honeywell – D1XS1FDC024CN1A1R D1xS1F Alarm Horn Sounder 115dB +/-3dB at 10'

Name: Honeywell – D1XS1FDC024CN1A1R D1xS1F Alarm Horn Sounder 115dB +/-3dB at 10'
Brand: Honeywell
SKU: D1XS1FDC024CN1A1R

MPN: D1XS1FDC024CN1A1R · Brand: Honeywell

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Honeywell Notification, Voice Alarm & Emergency Lighting
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can D1XS1FDC024CN1A1R be shipped?

D1XS1FDC024CN1A1R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up D1XS1FDC024CN1A1R in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for D1XS1FDC024CN1A1R and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for D1XS1FDC024CN1A1R, subject to availability and destination.

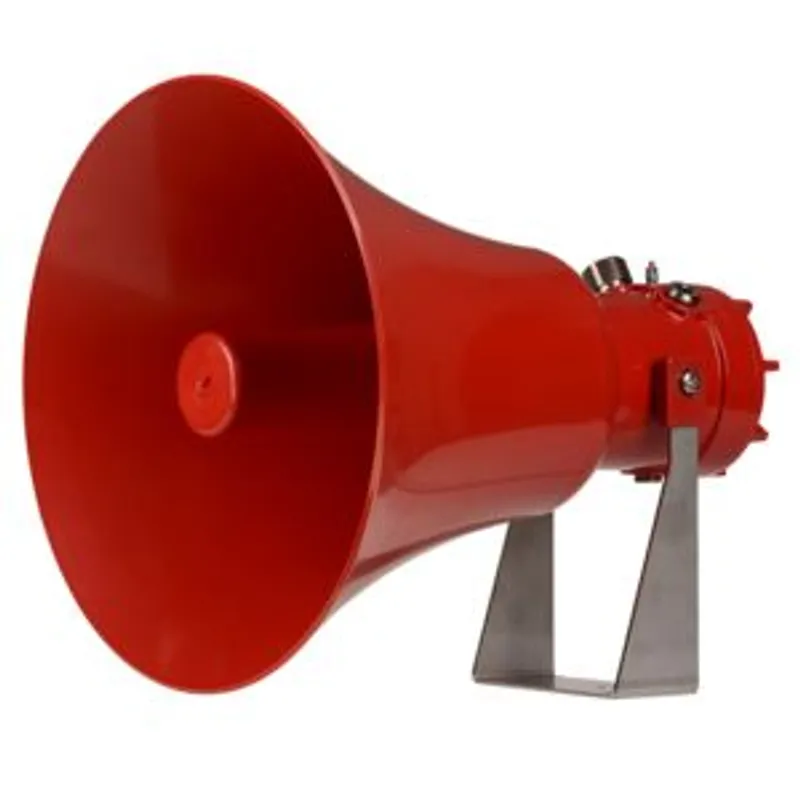

The D1xS1F is a high performance globally certified alarm horn sounder featuring a sound output of up to 115dB(A). The robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure is approved for Class I & II Div 1, Zone 1 & 20, IECEx and ATEX Zone 1, 2, 21 & 22 explosion proof signalling applications.

Featuring 64 alarm tones with 4 remotely activated stage/channels. The threaded flameproof joint, multiple cable entries and duplicated, pluggable termination simplifies both installation and routine maintenance. The 24Vdc version is EN54-3 EU, UK CPR, MED and MER compliant, plus UL464 NFPA compliant for public mode fire alarm use. SIL1 & SIL2 Route 2H to IEC61508 (2010), with optional diagnostics for Route 1H SIL2 compliance.

Features & Benefits:

Maximum sound pressure level output of 115dB(A)

Choice of 64 alarm tone frequencies

4 remotely selectable alarm stages/channels

Positive or negative line stage/channel switching

Automatic synchronisation on multi-sounder system

Ratchet adjustable 316 stainless steel bracket

Triple cable entries

Robust marine grade aluminium enclosure

EN54-3 tested – EU & UK CPR compliant

UL464 Public mode fire alarm use

CAN/ULC S525 Audible Signaling Devices for Fire Alarm

Certifications:

UL/cUL/ULC File ref: E230764

IECEx Certificate: IECEx ULD 19.0008X

ATEX Certificate: DEMKO 19 ATEX 2141X

CSFM listing: 7136-2279:0506

UKCA certificate: UL21UKEX2132X

CCCEx certificate: 2022122310115173

EU CPR certificate: 2831-CPR-F4858

UK CPR certificate: 0832-UKCA-CPR-F1782

MED, MER certificate: MEDB000085K, MERB000085K

INMETRO IEx 24.0158X

SIL1 & SIL2 compliant to IEC61508 (2010)

Honeywell D1XS1FDC024CN1A1R — The D1xS1F is a horn sounder with a sound output of up to 115dB(A). The Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure is approved for Class I & II Div 1, Zone 1 & 20, IECEx and ATEX Zone 1, 2, 21 & 22 explosion proof applications. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
