Honeywell CPO-VAV2A

CPO VAV with Actuator Controller

MPN
CPO-VAV2A
Price and lead time confirmed within 1 business day

Discontinued by Honeywell — we can still source the original CPO-VAV2A (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Honeywell parts? We buy surplus →

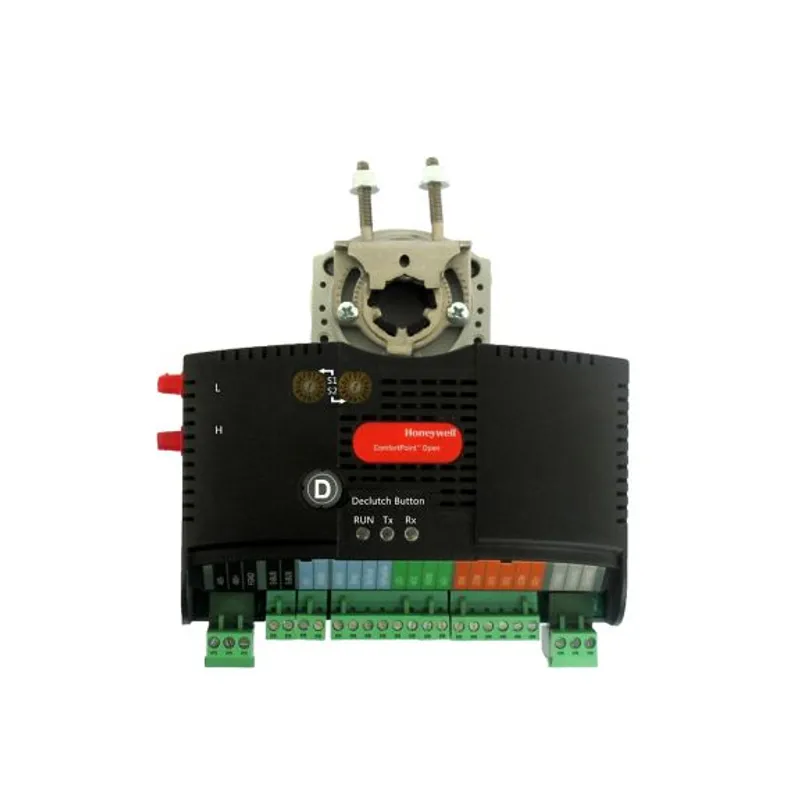

What is the Honeywell CPO-VAV2A?

CPO-VAV2A-US firmware is based on B-AAC BACnet profile, it is a native BACnet series of controllers with direct-coupled damper actuator and de-clutch mechanism with outstanding performance with 32 bit technology. It uses standard VAV application or flexible custom programming, supports Sylk communication and has a built-in real time clock. It connects to one of three BACnet MS-TP channels of a ComfortPoint Open Plant Controller and is fully integrated with ComfortPoint Open Manager and Enterprise Buildings Integrator (EBI). It is flexible and has easy configuration with ComfortPoint OpenStudio and quick VAV Balancing with ComfortPoint Open online tool.

Features & Benefits:

Freely Programmable Native BACnet Controller - CPO-VAV2A-US is a freely programmable native BACnet controller.

Onboard Input and Outputs - CPO-VAV2A-US comes with 4 UI, 3 AO and 6 DO (2 DO reserved for internal actuator) with an integrated air flow sensor.

Sylk® communication port - Two-wire polarity-insensitive bus interface provided to connect Sylk® devices.

Actuator integrated - Vertically integrated with series 60 actuator with Torque Rating 5 Nm, 95 degree stroke, and 110 sec. Timing at 50 Hz and 90 sec at 60 Hz. Supports de-clutch mechanism to enable the installer to open or close the VAV box damper manually without power or software tool. Support round (8mm to 16 mm) or square (6mm to 13 mm) shafts. Noise 35 dBA at 1 meter maximum.

VAV Applications - ComfortPoint Open Studio tool comes with predefined VAV Applications which can be downloaded to CPO-VAV2A-US. The Tool allows spare points programming as per user needs.

Programming and Balancing - CPO-VAV2A-US can be programmed using ComfortPoint Open Studio. Balancing is done via ComfortPoint Open Online which allows online discovery of VAV devices on the BACnet MSTP channel.

Easy installation - The ComfortPoint Open plant controllers have a built in BACnet router which eliminates the need for additional BACnet routers for the system. ComfortPoint Open Manager and EBI can access all MSTP Unitary controllers via CPO-PC-6A, CP-IPC, or CP-Core BACnet router built-in ComfortPoint Open plant controller.

Certifications:

CE declarations according to LVD Directive 2006/95/EC (product standards EN 60730-1 and EN 60730-2-14) and EMC Directive 2004/108/EC (product standards EN 60730-1, EN 60730-2-9 and EN 60730-2-14)

BTL

UL 916

FCC Part15, Subpart B, Class B

ICES-003

UL2043: Plenum Rated (without additional enclosure)

UUKL Smoke Control Application

Honeywell CPO-VAV2A — Native BACnet series of controllers with direct-coupled damper actuator. Discontinued by Honeywell — no longer in the current range. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleDiscontinued by Honeywell

Ordering codes

Part numbers on this product pageCPO-VAV2A, CPO-VAV2A-US

CPO-VAV2A: frequently asked questions

Can I still buy the CPO-VAV2A now that it is discontinued?

Yes. Honeywell has discontinued the CPO-VAV2A, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can CPO-VAV2A be shipped?

CPO-VAV2A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CPO-VAV2A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CPO-VAV2A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CPO-VAV2A, subject to availability and destination.
