Honeywell CPO-IO830A

CPO Mixed I/O Module

MPN
CPO-IO830A
Price and lead time confirmed within 1 business day

Discontinued by Honeywell — we can still source the original CPO-IO830A (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Honeywell parts? We buy surplus →

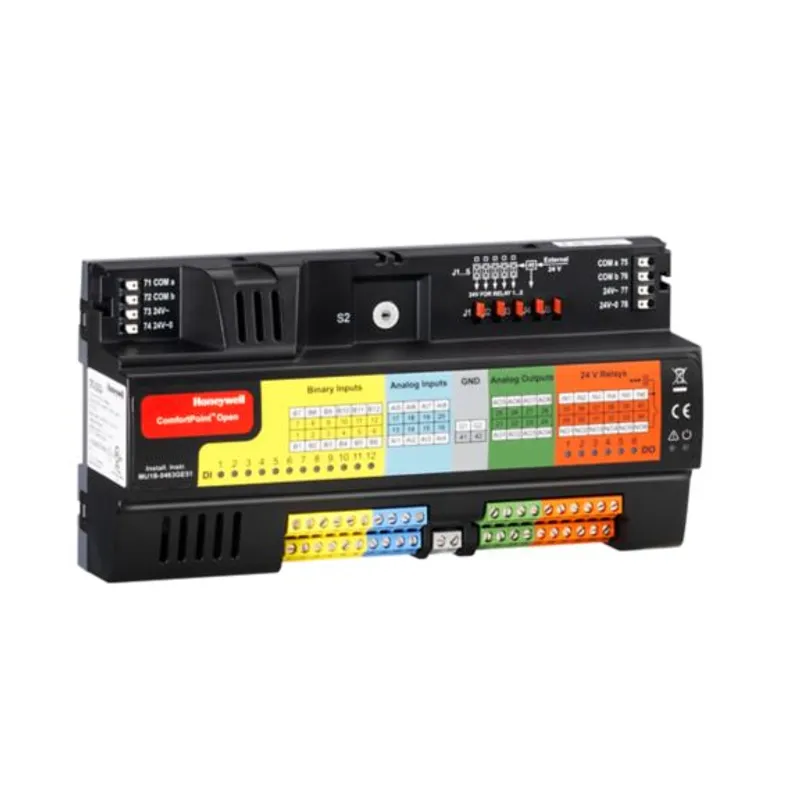

What is the Honeywell CPO-IO830A?

The ComfortPointTM Open Mixed I/O Module CPO-IO830A is an independently mounted electronic module which is designed for use in home (residential, commercial, and lightindustrial) environments. Specifically, it conforms with DIN 43880, with a max. slot height of 45 mm, and is thus suitable for mounting in fuse boxes. But it is also suitable for mounting on 35 mm standard panel rails (both vertical and horizontal mounting possible). The CPO-IO830A features a large complement of different inputs and outputs which are automatically commissioned (with firmware download) by the ComfortPointTM Open Plant Controllers CPO-PC-6A, CPO-PC400, and CPO-PC200. The CPO-IO830A communicated via the Panel Bus, and thus employs the Panel Bus communication protocol. It can be stationed up to 1,000 meters away from the controller (provided it is then supplied with power by a separate, nearby transformer). The CPO-IO830A also features 20 inputs, 14 outputs, and 18 status LEDs. Up to 16 Mixed I/O Modules can communicate with the controller. The CPO-IO830A features both push-in terminals (for connection of other modules using the XS816 Bridge Connector) and screw-type terminals. Clearly visible LED control lamps convey important status and alarm information. The CPO-IO830A has a durable, anthracite-colored plastic housing conforming with DIN 43880. It is thus suitable for mounting in fuse boxes, but can also be mounted on 35 mm standard panel rails (both vertical and horizontal mounting possible).

Features & Benefits:

24 Vac (+/- 20%) or 21…30 Vdc power supply (from external transformer).

Overvoltage protection: All inputs and outputs are protected against overvoltages (24 Vac ± 20%; 30 Vdc) as well as against short-circuiting.

In the event of communication problems, the relay outputs move to safety positions configured in ComfortPointTM Open Studio.

Push-in terminals for quick and convenient connection to neighboring modules using the XS816 Bridge Connector (regular cabling also possible).

Status LED, service LED, power LED.

Hex switch for setting Panel Bus address.

Certifications:

protection class - IP20

product standards - EN 60730-1, EN 60730-2-9, UL6730-1, CAN/CSA-E60730-1:02

testing electrical components - IEC68

certification - CE, cUL 60730

Honeywell CPO-IO830A — The ComfortPointTM Open Mixed I/O Module CPO-IO830A is an independently mounted electronic module which is designed for use in home (residential, commercial, and lightindustrial) environments. Discontinued by Honeywell — no longer in the current range. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleDiscontinued by Honeywell

CPO-IO830A: frequently asked questions

Can I still buy the CPO-IO830A now that it is discontinued?

Yes. Honeywell has discontinued the CPO-IO830A, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can CPO-IO830A be shipped?

CPO-IO830A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CPO-IO830A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CPO-IO830A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CPO-IO830A, subject to availability and destination.

More Honeywell parts

Honeywell CPA150-A0-000 – CPA150, 4D Cell Pack,intern ANT
Honeywell
CPA150-A0-000

CPA150, 4D Cell Pack,intern ANT

Honeywell CPCSE20025 – Schede ELETTR. X SERVO-COMBI(DBI)
Honeywell
CPCSE20025

Schede ELETTR. X SERVO-COMBI(DBI)

Honeywell CPCSE20026 – Scheda ELETTR. X SERVO-COMBI (ip)
Honeywell
CPCSE20026

Scheda ELETTR. X SERVO-COMBI (ip)

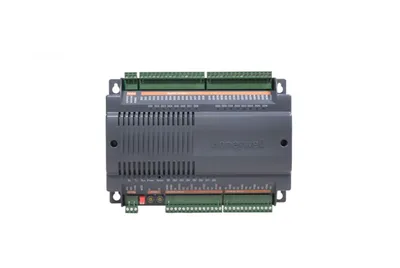

Honeywell CPO-DIO – CPO Digital I/O Controller
