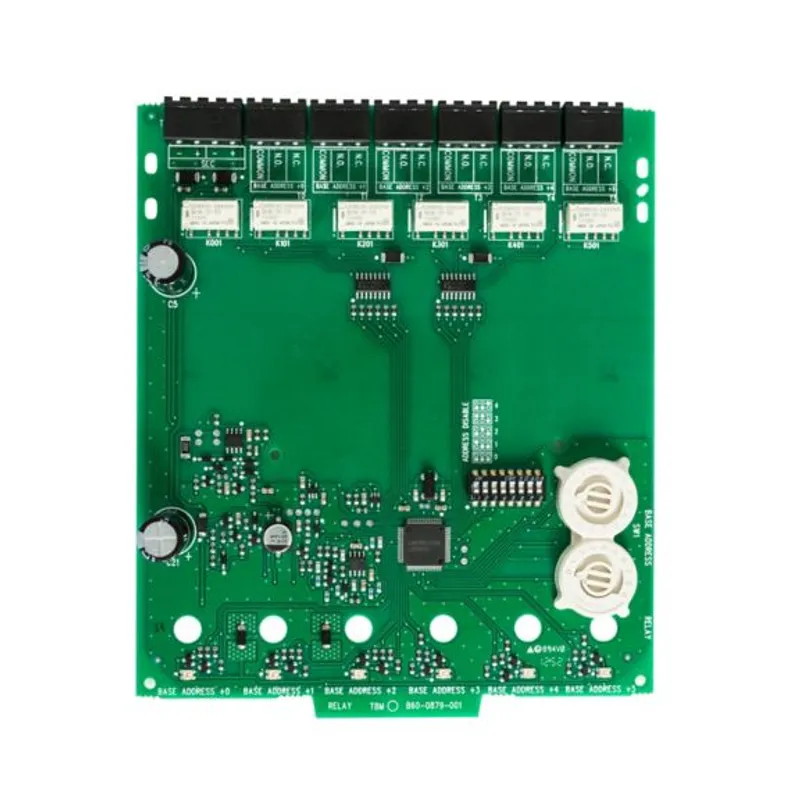

Honeywell APCR-6
Six Relay Control Module
- MPN
- APCR-6
Discontinued by Honeywell — we can still source the original APCR-6 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Honeywell APCR-6?
The Six Relay Control module consists of six Form-C relays. A single isolated set of dry relay contacts is provided for each module address which is capable of being wired for either a normally open or normally closed operation. The module allows the control panel to switch these contacts on command. No supervision is provided for the controlled circuit. The multi-module provides short circuit isolators to prevent shorts on the fire detection and alarm system loop from disabling more than one device on the intelligent loop. Jumpers have been replaced by dip switches to disable addresses and set Class A or Class B operation. Relay multi-modules can disable up to four addresses when operating in CLIP protocol. Advanced Protocol models only use 1 address per multi-module.
Features & Benefits:
Removable 12 to 18 AWG plug-in terminal blocks
Individual LED indicators
Unused addresses may be disabled
Rotary address switches
Class A or B operation
Mount up to two modules in BB-2 enclosure (optional)
Mount up to six modules in BB-6 enclosure with CH-6 chassis (optional)
Mounting hardware included
Certifications:
UL and/or ULC Listed S7305
FM
CSFM
Honeywell Morley-IAS, System Sensor APCR-6 — System Sensor multiple input and output modules are designed to meet a range of applications in which numerous single modules are used. Discontinued by Honeywell — no longer in the current range. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Discontinued by Honeywell |
| Brand line | Morley-IAS, System Sensor |
Others
| Brand | Morley-IAS, System Sensor |
Ordering codes
| Part numbers on this product page | APCR-6, CR-6, CR-6A, CR-6EA |
No matching specifications
APCR-6: frequently asked questions
Can I still buy the APCR-6 now that it is discontinued?
Yes. Honeywell has discontinued the APCR-6, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can APCR-6 be shipped?
APCR-6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up APCR-6 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for APCR-6 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for APCR-6, subject to availability and destination.
