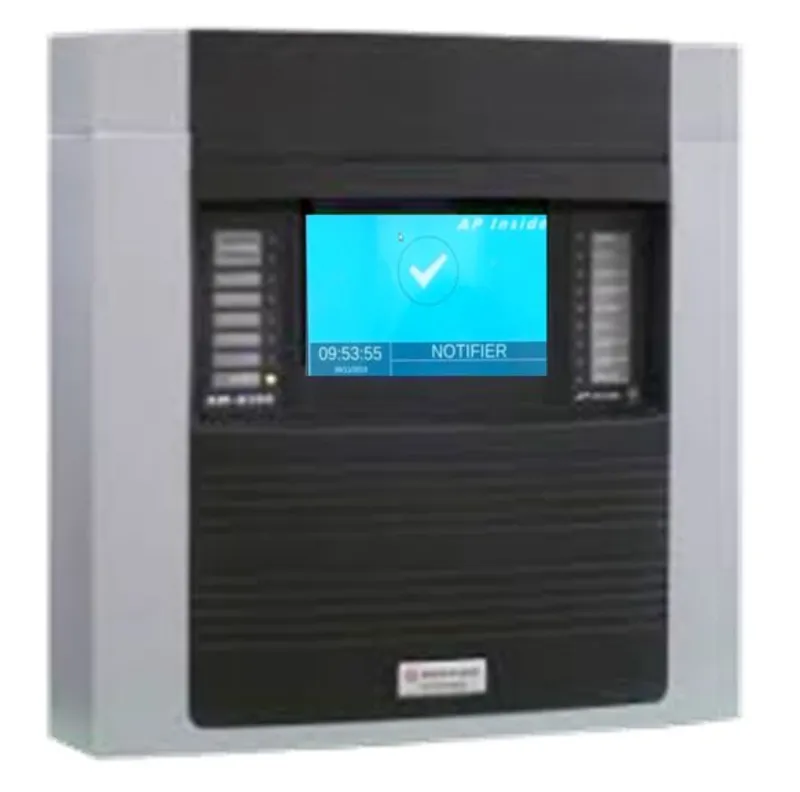

What is the Honeywell AM-8200G?

Addressable Gas Detection System capable to manage 4-20 mA explosive and toxic gas detectors on the loops, thanks to the addressable analogue interfaces. On the same lopps, it is possible to additionally connect audio-visual alarm devices and input and output modules, to execute emergency plans in accordance with the requirements of the protected site and local regulations. The solution is completed by the remote touch screen panel for displaying events in one or more management and supervision stations.

Features & Benefits:

3 password levels (Operator - Maintenance - Configuration).

4 total access levels in compliance with EN54 standards.

Programmable texts: 32-character device description; 32-character zone description.

400 physical zones and 400 logical groups for the stand alone control unit.

CBE control equations for activations with logical operators (AND, OR, DEL, etc.).

Event history archive with the last 10.000 events in non-volatile memory.

Real time clock.

Self-programming of the line with automatic recognition of the type of connected devices.

Automatic recognition of devices with the same address.

Decision algorithms for alarm and fault criteria.

Programmable alarm and Pre-Alarms thresholds for sensors.

Programming of predefined software functions for different devices in the field.

Walk-Test function for zones.

Siren functionality with programming of different tones

Synchronization of sirens and flashing lights

Technical specifications:

Display resolution of 800 x 480 pixels and 256 color touchscreen

Number of loops 2 expandable to 4 with LIB-8200G

Number of zones 400

Number of groups 400

Max. devices per line 99 detectors and 99 modules

Address 396 for each LIB

Mains input 230 VAC +/- 15% +10%/60 50Hz

Nominal system voltage 19 to 29 Vdc

Power supply 4A 27.6VDC

Charging current 1 A for batteries up to 18Ah

Outputs for alarm devices 1 output 30Vdc 1A

External user outputs 28VDC 1.5A

Alarm relay output 30VDC 2A changeover contact

Fault relay output changeover contact 30VDC 2A

User 1 and 2 outputs changeover contact 30VDC 2A

Serial outputs 1 x RS485 standard / 1 x RS-232/RS-485 configurable

Dimensions (H x W x D) 369.8 x 445.7 x 111 mm

Honeywell NOTIFIER AM-8200G — Gas Detection Saddressable solution capable to manage on SLC loops, 4-20mA Explosive and Toxic Gas Detectros thanks to addressable analogue loop interfaces. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Brand lineNOTIFIER

Others

BrandNOTIFIER

Ordering codes

Part numbers on this product pageAM-8200G, AM-LCDG, LIB-8200G
