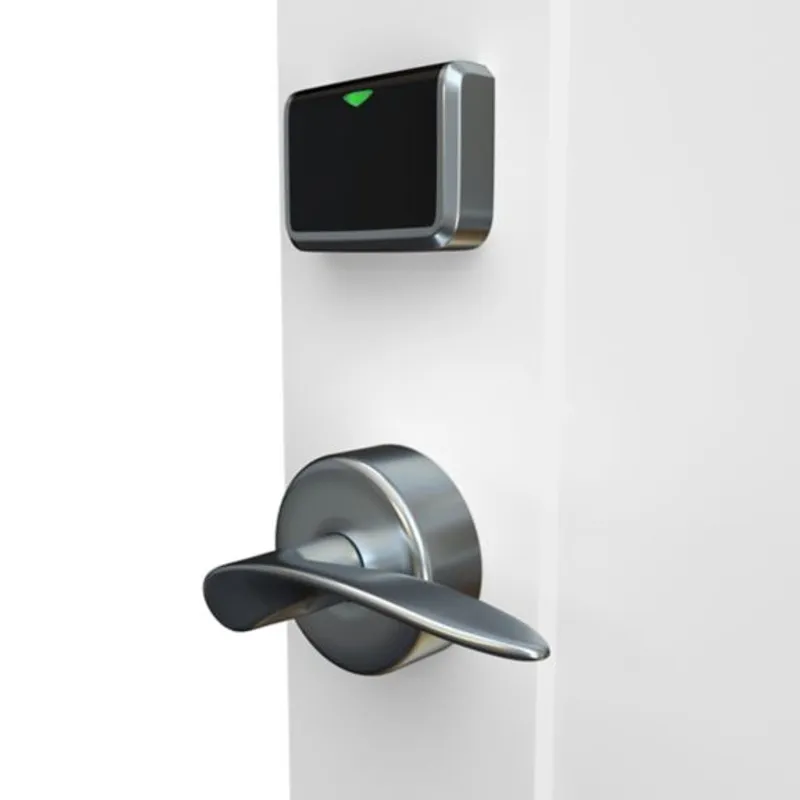

Honeywell – ADV TRL LK_90008 Advance Trillium Lock

Designed for today’s modern aesthetics, Onity’s ADVANCE lock is available in a slim two-piece module design with a low profile reader, RFID and optional Bluetooth® Low Energy (BLE) configurations. ADVANCE locks can be operated using Onity’s DirectKey™ technology enabling guests to use an approved smartphone app to securely download their assigned key for easy access to controlled areas.

Features & Benefits:

Simple to use

Ideal for new installations and available for retrofit

applications

Compatible with Onity OnPortal™ system software

Lock LEDs indicate lock status, including low

battery level

Powered by four AA batteries with a two year

normal life

Mobile access compatible

Provides a wide range of design options for

finish and levers

DirectKey-ready: Optional on-board DirectKey

module provides secure wireless communication of

credentials from a user’s smartphone to a locking

device via Bluetooth Smart communications

Supports MIFARE Classic®, MIFARE Plus®, MIFARE

Ultralight®, and MIFARE Ultralight C cards

Reading technology: contactless RFID (ISO14443A,

NFC)

Multiple opening devices available: cards,

wristbands, keychains, etc.

Non-volatile memory: records last 500 openings

including date, time and card used

Programmable to customer needs (meeting rooms,

offices, housekeeping, etc.)

Corrosion-treated for normal atmospheric conditions

NXP CRYPTO1 or AES-128 card encryption

Certifications:

FCC, CE, NOM, ANATEL, RoHS, REACH, ISO 14443 A, NFC

Honeywell ADV TRL LK_90008 — With a two-piece design, the Trillium lock enhances functionality, ensuring efficient access control and exceptional convenience for guests. Trillium locks provide advanced security and reliability, with the ability to use mobile access. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
