What is the Honeywell 790M150?

Part Number: 790M150

Systevo Tel Connect system server as a gateway for connecting mobile communication systems. Basic platform designed for a facility size of 80 rooms, 4 wards and 5 nursing staff per ward (20 in total). Extension licences required depending on system functions/size. Equipped with interfaces to IP-PABX (ETH/LAN), DECT system, BMS system (partly optional). Gateway with different configuration options to adapt the system to the requirements of the care facility. Incl. logging function. Compatible with Systevo Call Ackermann, equipped with system release V12.

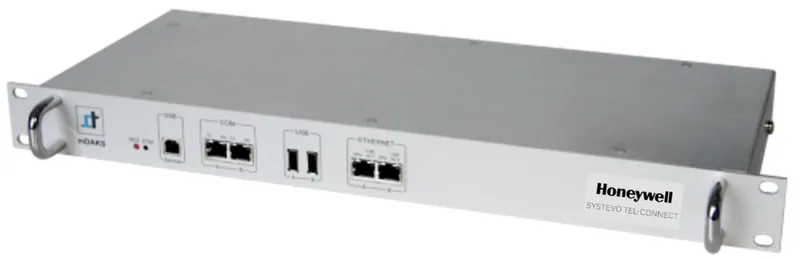

Hardware = STC-200 Server including accessories:

19" rack mounting (1 U)

Power supply from 24/48 VDC and 115/230VAC (simultaneously usable for redundant power supply)

2x serial port RS232/RS422

System error relay output

CF card for software, data and licenses

Accessories: Serial connection kit, AC/DC connection cable, USB cable and service CD

Software/Licenses = Systevo Tel-Connect V1.0 basic license:

SIP trunk to a PBX

SIP-based alarm calls, text transmission and confirmation option via DTMF (if supported by the PBX)

Call control via ESPA-X by the Systevo Nurse Call System (= SNCS) and via telephone

20 broadcast groups with up to 5 participants can be set up

100 information (announcements/texts) can be set up

8 parallel communication channels

Up to 10 broadcast call processes active simultaneously

NTP synchronization

SNMPv1/v3 agent software

Honeywell 790M150 — Systevo tel connect system server for 80 rooms as a gateway for connecting mobile communication systems. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Brand lineHoneywell

Overview

BrandHoneywell
Product TypeTel-Connect Gateway for 80 Rooms

Technical Specifications

Technical Data100 Pieces of Information (Announcements/Texts) can be Set Up, 20 Broadcast Groups with Up To 5 Participants can be Set Up, 8 Parallel Communication Channels, Call Control via ESPA-X Through The Systevo Nurse Call System (= SNCS) and via Telephone, NTP Synchronization, SIP Trunk to a PBX, SIP-Based Alarm Calls, SNMPv1/v3 Agent Software, Up to 10 Broadcast Processes Active At The Same Time, text Transmission and Confirmation Option via DTMF (If From the PBX Supported)
InterfaceEquipped with Interfaces to IP-PABX (ETH/LAN) DECT System and BMA System (Partly Optional)
FirmwareV12

Features

License Support80 Rooms. 4 Wards. 5 Nurses per Ward (20 in Total)
License ExtensionExtension Licenses Depending On The System Functions/Size Required
IncludesHardware: STC-200 Server Including Accessories 19 in Rack Installation (1 U). Power Supply From 24/48 V DC and 115/230 V AC (can be Used Simultaneously for Redundant Power Supply). 2x Serial Port RS232/RS422. System Error Relay Output. CF Card for Software. Data and Licenses. Accessories - Serial Connection Kit. AC/DC Connection Cable. USB Cable and Service CD., Software/Licenses: Systevo Tel-Connect V1. 0 Basic License - SIP Trunk to a PBX. SIP-Based Alarm Calls. Text Transmission and Confirmation Option via DTMF (If Supported by The PBX). Call Control via ESPA-X Through the Systevo Nurse Call System (= SNCS) and via Telephone. 20 Broadcast Groups with up to 5 Participants can be Set Up. 100 Pieces of Information (Announcements/Texts) can be Set Up. 8 Parallel Communication Channels. Up to 10 Broadcast Processes Active At The Same Time. NTP Synchronization. SNMPv1/v3 Agent Software.
FunctionsGateway with Different Configuration Options To Adapt The System To The Requirements of The Care Facility (Incl. Logging Function), Systevo Tel Connect System Server as a Gateway for Connecting Mobile Communication Systems

Applications & Compatibility

CompatibilityCompatible with Systevo Call Ackermann (Equipped with System Release V12)

Others

IndustryHealthcare
