Honeywell – 77-01648-11 JSE1KGC:MODEL JS, 1K PSI

MPN: 77-01648-11 · Brand: Honeywell

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Honeywell Test & Measurement
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 77-01648-11 be shipped?

77-01648-11 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 77-01648-11 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 77-01648-11 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 77-01648-11, subject to availability and destination.

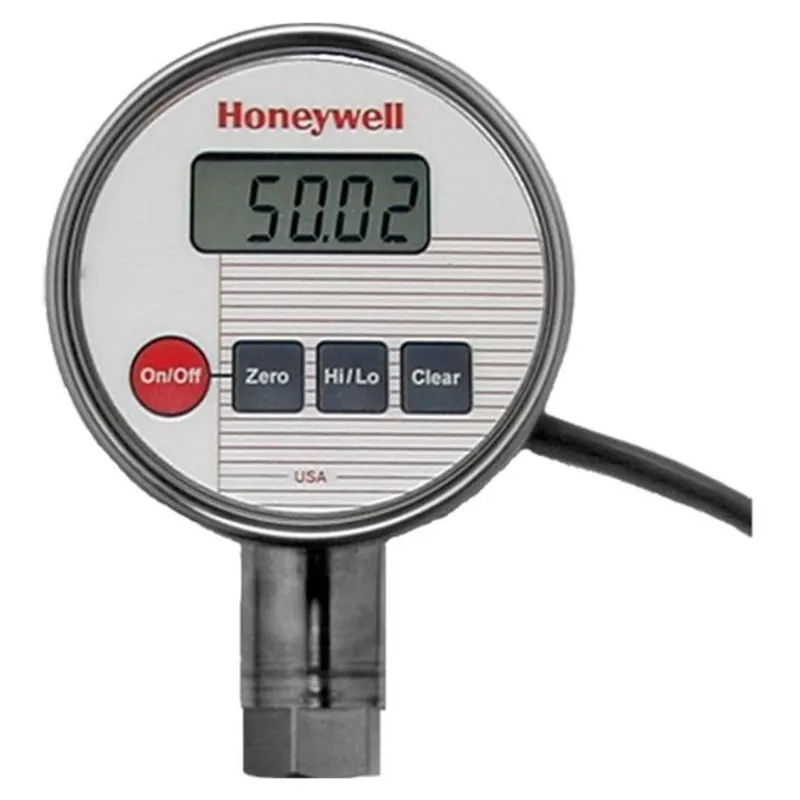

Part of Honeywell's Model JS Digital Pressure Gauge range. The Model JS digital pressure test gauge with 0.2 % full scale accuracy uses transducer technology and is manufactured from Ha C276/316 Stainless Steel wetted material for ranges up to 1,500 psi or 15-5 PH Stainless Steel wetted material for ranges 1,500 psi and above for high over pressure protection.

The transducer technology provides enhanced accuracy over the entire pressure range. The JS has no moving parts and thus, may provide a long life with fewer re-calibrations. The stainless steel NEMA construction also provides EMI and RFI protection. The JS provides high resolution with an easy to read digital display. There are no operator errors due to interpolation of hash marks or parallax errors. The units can be scaled to read in various engineering units such as in-hg, ft-water, etc.

The Model JSB provides a 4 mA to 20 mA, two-wire output. The Model JSE provides a 0 Vdc to 5 Vdc output. The Model JSR has two programmable limits and relays with no analog output. The Model JSX provides a 0 Vdc to 5 Vdc output with two programmable limits and relays for process control or alarm indication.Each unit has a membrane face with raised buttons and tactile feedback for setup and operation. The high, low, and clear buttons are easily accessible on this front membrane.

Zero adjustment and zero offset/tare functions are standard on each unit. Calibration and setup parameters are stored on a memory chip to protect from loss even when power is interrupted. Unauthorized set ups and calibrations are also blocked with internal security. Various combinations of the front panel buttons can be de-activated.

Features

4 mA to 20 mA (two-wire) and 0 Vdc to 5 Vdc analog outputs

Two programmable limits and relays (optional)

Test gauge accuracy - 0.2 % full scale

High and low detection - Microprocessor based

Ranges to 10000 psi - gage, absolute, vacuum, or compound

4½ digit display with 0.5 in height

Customer recalibration

Zero offset/tare

On/off switch disable feature

Optional carrying case and panel mounting ring

Optional pressure port adapters

NEMA 4 rating (optional)

NIST traceable (optional)

Honeywell 77-01648-11 — JSE1KGC:MODEL JS, 1K PSI (Model JS Digital Pressure Gauge). PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
