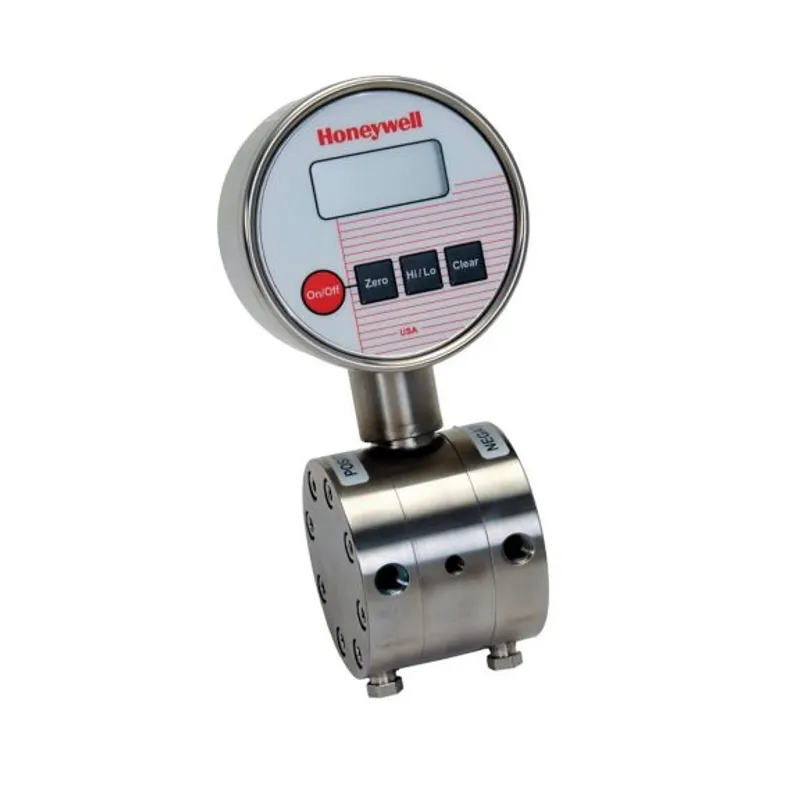

Honeywell – 77-01622-06 JKW100CZ:MODEL JK, 100 PSI

MPN: 77-01622-06 · Brand: Honeywell

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Honeywell Test & Measurement
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 77-01622-06 be shipped?

77-01622-06 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 77-01622-06 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 77-01622-06 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 77-01622-06, subject to availability and destination.

Part of Honeywell's Model JH Digital Pressure Gauge range. Using high pressure autoclave fittings, the Series JH digital pressure test gauge with 0.2 % full scale accuracy uses transducer technology and is manufactured from 15-5 PH Stainess Steel wetted material for high over pressure protection. The transducer technology provides enhanced accuracy over the entire pressure range.

The JH has no moving parts and thus, may provide a long life with fewer re-calibrations. The stainless steel NEMA construction also provides EMI and RFI protection. The JH provides high resolution with an easy to read digital display. There are no operator errors due to interpolation of hash marks or parallax errors. The units can be scaled to read in various engineering units. PSI pressures are read x 10 with the 4½-digit display.

The Model JHB provides a 4 mA to 20 mA, two-wire output. The Model JHE provides a 0 Vdc to 5 Vdc output. The Model JHR has two programmable limits and relays with no analog output. The Model JHX provides a 0 Vdc to 5 Vdc output with two programmable limits and relays for process control or alarm indication. The Model JHW is powered by one or two common 9 V alkaline batteries. The Model JHT is powered by a 110 Vac adapter. The JHV, JHB, JHE, JHR and JHX models are powered by an 11 Vdc to 32 Vdc power supply.

Each unit has a membrane face with raised buttons and tactile feedback for setup and operation. The high, low, and clear buttons are easily accessible on this front membrane. Zero adjustment and zero offset/tare functions are standard on each unit. Calibration and setup parameters are stored on a memory chip to protect from loss even when power is interrupted. Unauthorized set ups and calibrations are also blocked with internal security. Various combinations of the front panel buttons can be deactivated.

Features

Pressure ranges from 15000 psi to 60000 psi gage

Two programmable limits and relays (optional)

Accuracy - 0.2 % full scale

High and low detection - Microprocessor based

4 mA to 20 mA (two-wire) and 0 Vdc to 5 Vdc analog outputs (optional)

Customer recalibration

4½ digit display with 0.5 in height

Zero offset/tare

On/off switch disable feature

Two programmable limits and relays (optional)

NEMA 4 rating (optional)

NIST statement (standard)

NIST traceable (optional)

Optional carrying case and panel mounting ring

Honeywell 77-01622-06 — JKW100CZ:MODEL JK, 100 PSI (Model JH Digital Pressure Gauge). PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
