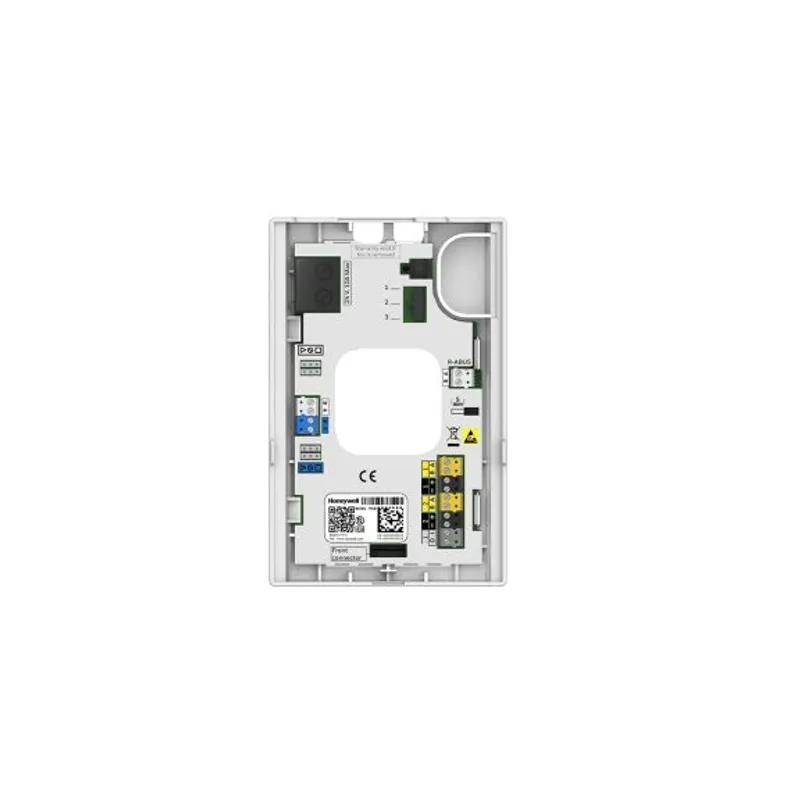

Honeywell 74920Z1

Room Terminal Connection Board for SRT/SRD

MPN
74920Z1
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Honeywell parts? We buy surplus →

What is the Honeywell 74920Z1?

Connection board for Systevo Room Terminal (SRT) or Systevo Room Display (SRD) to provide the required nurse call system and control functions in the resident/patient room according to the nurse call standards. Serves as a control unit for additional functions in the corresponding room and as a gateway to the overriding central unit (via Data bus). Monitoring and synchronization of the entire data traffic to other rooms within the organizational unit, and coordination of communication with the central units and other room devices via data bus. Configuration data of the room and used profiles (functions, I/O, device services) are managed via the system workstation/server and stored locally (redundant local flash storage), for increased safety. Associated multifunctional room units as well as the corridor lamp, can be connected to the room controller via the integrated data bus (DBUS) as well as using the integrated call inputs (I/O). Integration into the corridor data bus (ZBUS). Includes a user-friendly installation technology with color-coded connection terminals for each individual device and control functions, for a more efficient cabling and for an optimized commissioning process. In combination with SRT, supports bed-wise speech communication in combination with an optional bed/speech unit and hand-held device at the bed. Upgradable to future system firmware thanks to advanced flash storage technologies. Possibility for automated software update during operation. A multi-level security concept enables local call signaling in the case of a lack of communication with the central unit of the system. Support of the cyber security requirements of modern data bus infrastructures. System functions subject to license are provided by corresponding software licenses. Special material properties: • High quality plastic surface with antimicrobial compound for reduction of existing microorganisms and prevent their reproduction. • Good mechanical properties with high resistance to daily use (operation, cleaning, disinfection, impacts, etc.). • Suitable for use in care facilities with high demands on hygiene, stability, longevity and durability. • Plastic (PC + ABS-FR), matt • UV-resistant, impact-resistant • Heat resistance, stability • Longevity, durability, halogen free • Flame protection (fire protection class V0) System architecture: • Processor/OS: Embedded µC system • Cyber-Security: Firewall, secured boot loader function • Configuration: via data service Inputs/Outputs: • 24V DC power supply • DBUS: 2x RS487 (200 m each) for up to 4 participants each • ABUS/ZBUS: 1x RS487 (500 m) each • Call input/output: 1x I/O • Connection terminals: color-coded for up to 3x 0.6 mm (2 x 0.8 mm) wires (rigid) • Galvanic isolation of the control functions according to EN 60601.1.1 through external protective measures

Honeywell 74920Z1 — Connection board for Systevo Room Terminal (SRT) or Systevo Room Display (SRD) to provide the required nurse call system and control functions in the resident/patient room according to the nurse call standards. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Brand lineHoneywell

Operating Characteristics

Air Humidity< 10% RH
Storage Temperature-20 to 70°C
Ambient Temperature5 to 40°C

Dimensions & Weight

Weight (g)111
DimensionsW: 94.3 mm H: 146 mm D: 25.5 mm

Standards & Certifications

Type Of ProtectionFire Protection Class V0

Technical Specifications

RequirementsConfiguration: via Data Service, Cyber Security: Firewall, Secure Boot Loader Function, System Architecture: Processor/OS: Embedded µC System
InputsABUS/ZBUS: 1x RS487 (500m each), Call Input/Output: 1x I/O, DBUS: 2x RS487 (200m Each) for 4 Participants Each, RABUS: 1x RS487 (200m Each)
Connection terminalColor-Coded for up to 3x 0.6mm (2x 0.8mm) Rigid

Electrical Specifications

Quiescent current @ 24 V DC (mA)21
Power Supply24 VDC
Current consumption @ 24 V DC (mA)< 21

Material Specifications

MaterialPC + ABS - FR

Features

Features & BenefitsCall Input/Output: 1x I/O, Configuration: via Data Service, Connection Terminals: Color-Coded for Up to 3X 0.6 mm (2 X 0.8 mm) Wires (Rigid), Cyber-Security: Firewall and Secured Boot Loader Function, Durability, Fire Protection Class V0, Galvanic Isolation of the Control Functions According to EN 60601.1.1 Through External Protective Measures, Good Mechanical Properties with High Resistance to Daily Use (Operation, Cleaning, Disinfection, Impacts, etc.), Halogen-Free, Heat-Resistant, High Quailty Plastic Surface with Antimicrobial Compound for Reduction of Existing Microorganisms and Prevent Their Reproduction, Impact-Resistant, Inputs/Outputs: 24 VDC Power Supply, Longevity, Plastic Compound (PC + ABS-FR) with Matt Finish, Stability, Suitable for Use In Care Facilities with High Requirements In Terms of Hygiene, Stability, Longevity and Durability (Continuous Operation), System Architecture: Processor/OS: Embedded µc System, UV-Resistant
ColorWhite (RAL 9016)

Applications & Compatibility

CompatibilitySystevo Room Display (SRD), Systevo Room Terminal (SRT)

Overview

BrandHoneywell

Others

IndustryHealthcare

74920Z1: frequently asked questions

When can 74920Z1 be shipped?

74920Z1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 74920Z1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 74920Z1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 74920Z1, subject to availability and destination.

More Honeywell parts

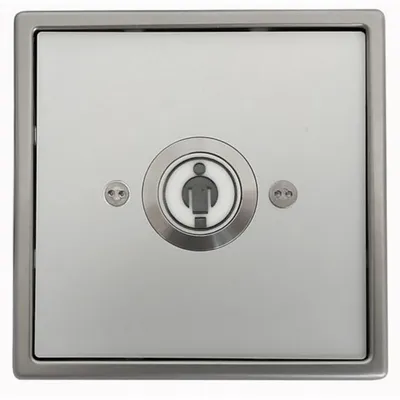

Honeywell 74913EJ – Vandalism Protected Call Unit V2A
Honeywell
74913EJ

Vandalism Protected Call Unit V2A

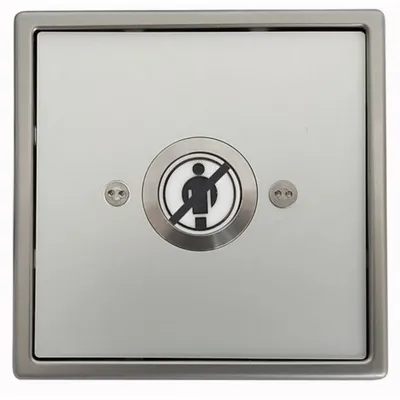

Honeywell 74913FJ – Vandalism Protected Cancel Unit V2A
