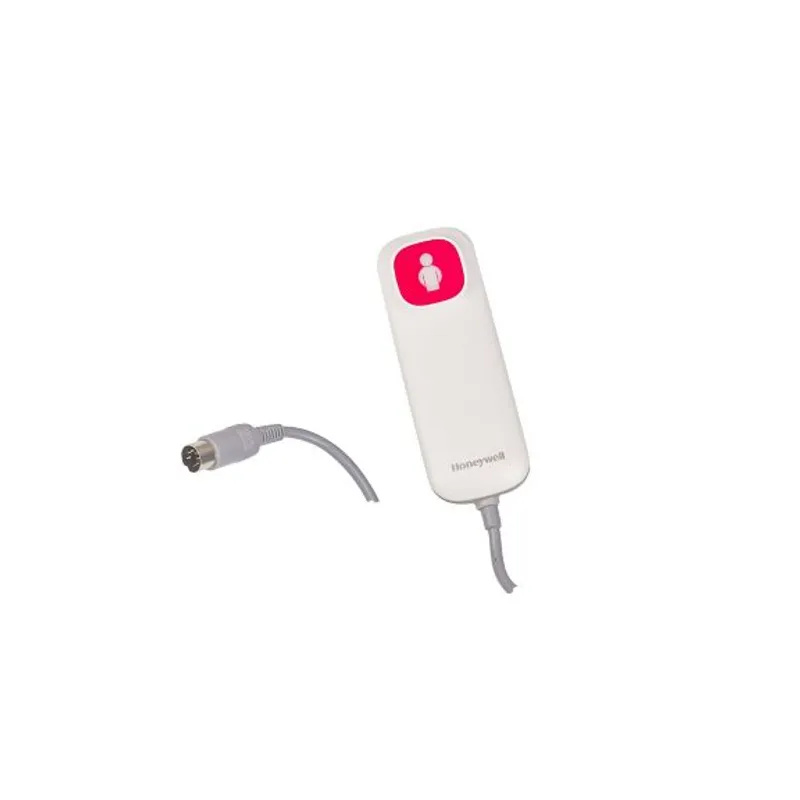

What is the Honeywell 74140B1?

Part Number: 74160B1

Systevo Call Easy handset with ergonomic design, for easy operation by patients and residents in care facilities. Equipped with large call button with easily recognizable as well sensible pressure point is the device prepared for safe call initiation.

Housings without dust edges for avoiding the deposition of bacteria or dirt elements and with easy to be cleaned and disinfected surface to fulfill the highest hygienic requirements in care facilities.

Equipped with antimicrobial compound for reduction of existing bacteria or preventing their reproduction.

Suitable for cleaning or wipe disinfection according to specifications of quality systems of care facilities. Tested by hygiene labs and approved for the usage of listed disinfectants (alcohols, aldehydes Quaternary ammonium compounds).

Robust housing with surrounding rubber coating for shock protection and safe handling during daily usage.

Features

Plastic housing in antimicrobial compound, colored in white/gray

Front call button with pictogram and LED reassurance light / finding light in accordance with VDE 0834

Buttons are colored according opera ting functions, with pressure point

Version in IP54

Surrounding rubber coating for shock-proof and safe handling

7-pole connector (DIN)

Special material properties:

High quality plastic compound with antimicrobial surface for reduction of microorganisms and to inhibiting the growth of germs.

Good mechanical properties with high resistance to the daily stress (operation, cleaning, disinfection, shocks etc.).

Suitable for use in care facilities with high Requirements for hygiene, stability, Longevity and durability.

Plastic compound (PC + ABS-FR)

UV-resistant

Matt finish

Antimicrobial surface

impact resistance

heat resistance

Strength

longevity

durability

Flame protection (fire protection class V0)

Halogen free

Max. Permissible cable tensile force: 40kg (Cable entry of housing: 20kg)

NCC

Accessories

74160Z3 - Wall mounting kit, Systevo Call Easy.

74160Z2 - Mounting, Systevo Call Easy.

74160Z1 - Fixing-Clip, Systevo Call Easy.

Honeywell 74140B1 — Systevo call easy patient handset with DIN-Plug, cable length 3m, protection class IP54. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive

Features

ColorFront in White (RAL9003), Housing Back in Gray, Light Gray Cable
Features & Benefits7-Pole Connector (DIN), Antimicrobial Surface, Buttons are Colored According Operating Functions with Pressure Point, Durability, Front Call Button with Pictogram and LED Reassurance Light/Finding Light in Accordance with VDE 0834, Good Mechanical Properties with High Resistance to the Daily Stress (Operation, Cleaning, Disinfection, Shocks etc.), Halogen Free, Heat Resistance, High Quality Plastic Compound with Antimicrobial Surface for Reduction of Microorganisms and to Inhibiting the Growth of Germs, Impact Resistance, Longevity, Matt Finish, Max. Permissible Cable Tensile Force: 40kg (Cable Entry of Housing: 20kg), NCC, Plastic Compound (PC + ABS-FR), Plastic Housing in Antimicrobial Compound Colored in White/Gray, Strength, Suitable for Use in Care Facilities with High Requirements for Hygiene, Stability, Longevity and Durability, Surrounding Rubber Coating for Shockproof and Safe Handling, UV-Resistant
Coating TypeRubber

Electrical Specifications

Current consumption @ 24 V DC (mA)10 to 30
Power Supply24 VDC

Operating Characteristics

Minimum storage temperature (°C)-20°C
Minimum ambient temperature (°C)-10°C
Storage Temperature-20 to 60°C
Ambient Temperature-10 to 50°C
Air humidity (%)< 90% (Non-Condensing)

Standards & Certifications

Type Of ProtectionFire Protection Class V0, IP54
CE certificateUL 1069, VDE 0834
ApprovalMIL-STD-810G

Dimensions & Weight

Cable length (m)3
Weight (g)210
DimensionsW: 47 mm H: 133 mm D: 24 mm

Material Specifications

MaterialPC + ABS-FR (AM, UV)

Others

IndustryHealthcare

Ordering codes

Part numbers on this product page74140B1, 74152B1, 74160B1
