Home / Honeywell / Honeywell Fire Alarm Panels & Modules / 6820UEVS 6820UEVS ULTRA SERIES

Available on request

Honeywell – 6820UEVS 6820UEVS ULTRA SERIES

MPN: 6820UEVS · Brand: Honeywell

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Honeywell Fire Alarm Panels & Modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 6820UEVS be shipped?

6820UEVS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6820UEVS in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6820UEVS and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6820UEVS, subject to availability and destination.

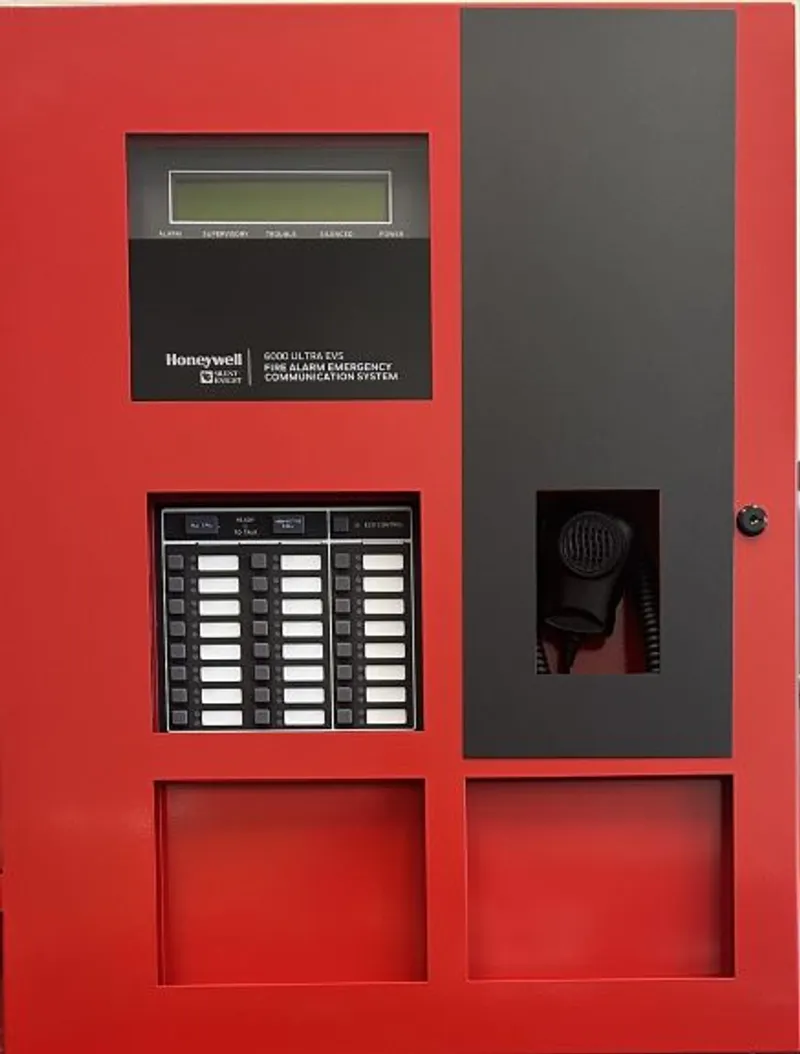

The 6820UEVS is an intelligent addressable Fire Alarm Control Panel combined with an Emergency Voice System (EVS) and are direct replacements for the 6820UEVS/5820XL-EVS FACP. When the EVS features are enabled, they are integrated with the fire alarm and voice evacuation functions of the control panel.

Features & Benefits:

Single enclosure for both fire and emergency voice components

Ability to select EVS messages as priority over fire

15 Recordable one-minute messages that can be mapped to eight EVS buttons

Capable of producing 520 Hz tones to meet NFPA 72 requirements

Support for up to 4 LOC consoles and 8 addressable amplifiers

Expandable SLC loops to 1110 (SK) or 635 (SD) point capacity

Eight Flexput circuits for NAC outputs or auxiliary power

Selectable strobe synchronization for Amseco®, System Sensor®, Wheelock®, and Gentex® devices

Built-in DACT with IP and optional cellular reporting

Built-in USB interface for quick and easy programming

JumpStart® auto programming reduces installation time

999 software zones & 999 output groups for flexible design options

23 preset notification cadence patterns (including ANSI® 3.41)

Allows up to 24 SBUS devices

Four programmable function keys

Two programmable relays and one fixed trouble relay

Compatible with SWIFT® wireless devices

Convenient field-upgradeable firmware

Network support for up to 17 sites

Network card allows copper network connection with a multi-mode or singlemode fiber connection

Real-time clock/calendar with automatic daylight savings control

History file with 1,000 event capacity

Honeywell Silent Knight 6820UEVS — The 6820UEVS panels and accessories provide features to meet the requirements for Mass Notification Systems as described in UL 2572 2nd Edition and UL 864 10th Edition. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
