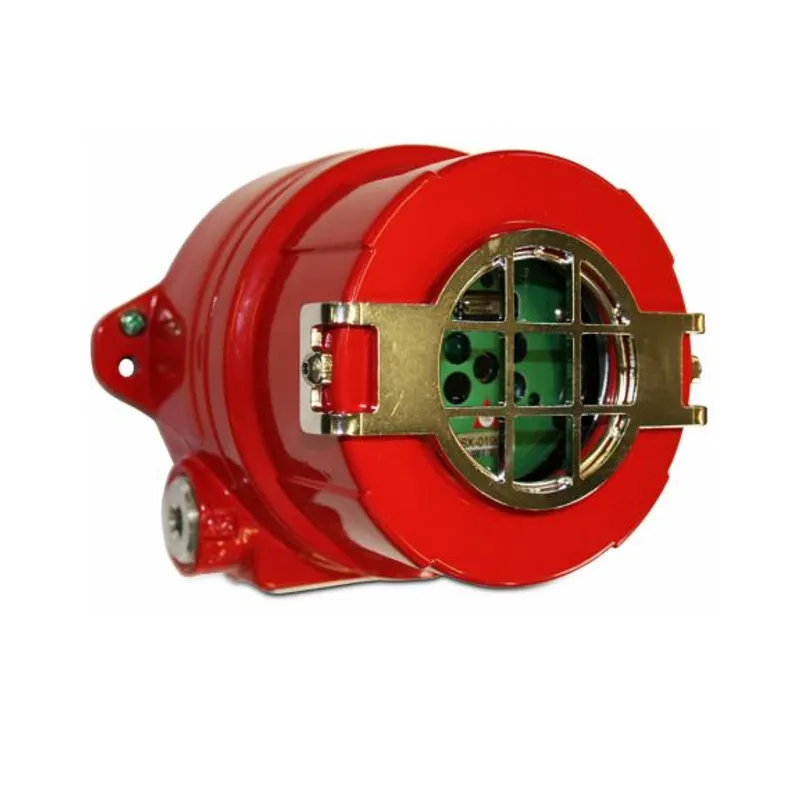

Honeywell – 377-444401-100 FS20X Flame Detector

Product Overview:Based on the foundation of the highly successful and reliable SS4 Flame Detector, the FS20X Flame Detector represents a quantum leap in integrating Infrared and Ultraviolet sensing technologies. The FS20X is a Multi-Spectrum and UV/Dual IR/VIS Flame Detector with a proven UV solar-blind sensor. The FS20X exhibits faster false-alarm free response to fires over a wider temperature range and with a much longer detection range compared to conventional UV/IR detectors.Conventional and older technology UV/IR detectors, using narrow band 4.3 micron IR sensors, will not respond to smoky fires or if the detector lens is contaminated with oil and other substances since both UV and 4.3 micron signals are attenuated, obscured or absorbed by thick smoke or detector lens contaminants. Also, these old technology UV/IR detectors will not alarm to any fire if they are installed behind ordinary window glass.Dual microprocessors provide a high level of fail-safe operation combined with fast and reliable performance. The Master Microprocessor performs high-speed digital sampling and signal processing calculations: while the slave microprocessor handles various sensor data, performs communications, self-diagnostics and provides interface versatility: and additional memory for storing Event Log and FirePic™ data.The FS20X Flame Detector has a detection range in excess of 200 feet (very high sensitivity setting) for the detection of a one square-foot Heptane reference fire and has a cone of vision greater in volumetric coverage than most UV/IR detectors. This means fewer detectors can be used as compared to other manufacturers’ detectors.Additional Features and Benefits:

Patented* WideBand IR™ Infrared combined with Ultraviolet

Detection range greater than 200 feet to 1 sq. ft. heptane fire

Patented* Electronic Frequency Analysis

Visible Sensor for optimum false alarm rejection

Selectable detection sensitivities

Solar blind 90° full 100% cone-of-vision

Dual Microprocessors for reliable performance

Real-time clock for accurate time dating of events

FirePic™ — Up to 6 pre-fire event data storage

Event log — Up to 200 events with date and time stamp

Built-in RS-485 ModBus Communication

Built-in non-isolated 4-20 mA analog output (sink or source)

Alarm, Fault and Fire Verification relays.

Automatic Optical Path and Electronic Self-Test

Widest operating temperature range

Patented* Electronics Module for components protection with plug-in terminations for easy field installation

Two ¾” NPT OR 25mm conduit entries

Low power consumption

High RFI and EMI immunity

FM approvedBenefits:

Detects hydrocarbon and non-hydrocarbon fuel fires in all environmental conditions

Arc welding immunity

False alarm rejection for all environmental conditions

Minimal maintenance for trouble-free operation

PC software and Interface Module (FSIM) for fault diagnostics real-time graphs (RTGs), and downloading of FirePics™ and event log

Suitable for a wide variety of applications.Features & Benefits:

Detects hydrocarbon and non-hydrocarbon fuel fires in all environmental conditions

Range greater than 200 feet to 1 sq. ft. heptane fire

Arc welding immunityQuick Specs:

Field of view: 90° full 100% core of vision, ± 45° from on axis

Operating voltage: 24 VDC nominal (18-32 VDC) - regulated

Sensitivity: Very high, high, medium and low - switch selectable

Even the best products deserve expert maintenance!

Elevate your gas detectors’ potential with Honeywell's expert maintenance services! Maximize uptime, eliminate costs, and ensure on-time, on-budget project completion.

Explore our fixed, portable, and high-tech support services now!

Honeywell Honeywell, Honeywell, Notifier 377-444401-100 — UV + IR flame detector hydrocarbon and non-hydrocarbon fires. Discontinued by Honeywell — no longer in the current range. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications
