Honeywell – 2111-30K 2111-30K,1AD,2U,6AC,15C:MODEL 2110, 30,

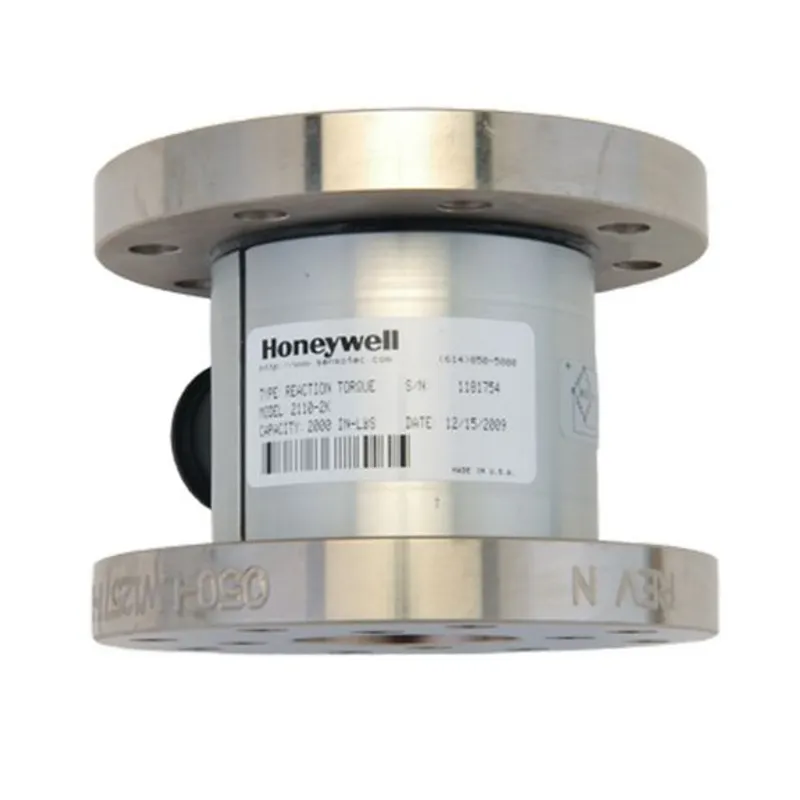

Part of Honeywell's 2110 Series Reaction Torque Sensor range. Model 2110-2116 flanged reaction torque sensor is designed for installation between test pieces such as motors, switches, axles, or shafts and their mounting plate. These models operate and are calibrated in both directions. Nickel-plated alloy steel construction enhances durability in harsh, industrial environments. These models have no moving parts and utilize four bonded strain gages on a special machined portion of the transducer to achieve a maximum non-linearity of 0.1 % over a wide dynamic range. Typical applications include tire braking, motor dynamometers, friction-skid testing, and twist measurement. 2,000 in-lb to 2,400,000 in-lb capacities.

Features

2000 in-lb to 2400000 in-lb capacities

0.1 % non-linearity and hysteresis

High torsional stiffness

Higher resistance to bending moments

Low-end sensitivity due to absence of moving parts

Honeywell 2111-30K — 2111-30K,1AD,2U,6AC,15C:MODEL 2110, 30, (2110 Series Reaction Torque Sensor). PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
