Honeywell – 060-P775-01 Model Plvx, +- 0.1 IN
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Honeywell Test & Measurement |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 060-P775-01 be shipped?
060-P775-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 060-P775-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 060-P775-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 060-P775-01, subject to availability and destination.

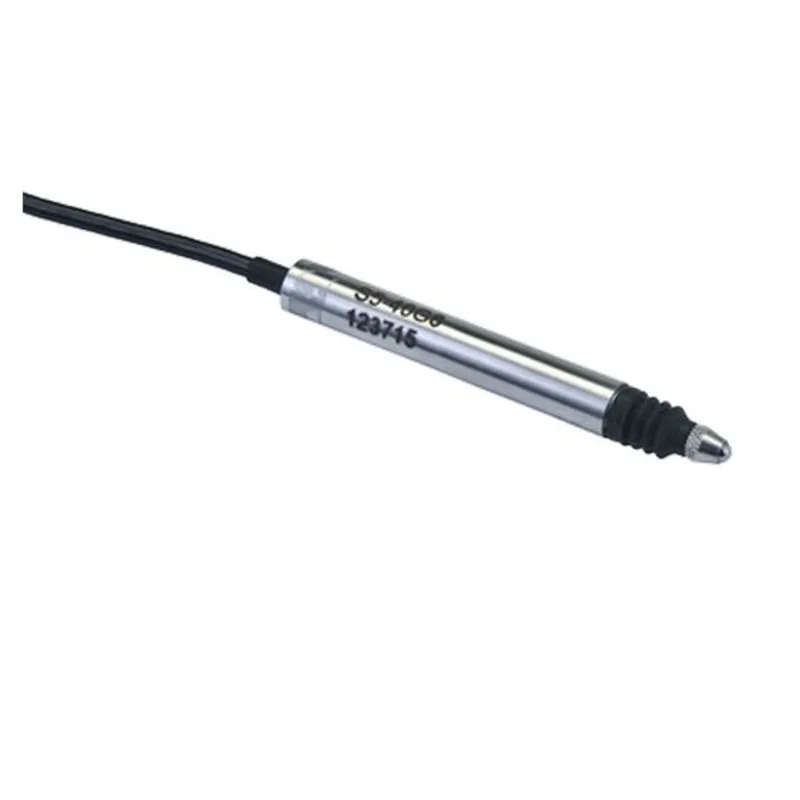

Part of Honeywell's Model S5 Miniature Displacement Transducer range. Model S-5 AC-AC Miniature Displacement Transducer with captive guided spring return armature, ranges from ±0.01 in to ±0.50 in and an accuracy of ±0.25% of full scale. Outputs ranging from 2 mV/V/0.001 in to 4 mV/V/0.001 in depending on the stroke length. Supply that can operate from either a 5 Vdc calibrated power supply or a 1 V to 7 V RMS acceptable power supply. Unit can operate from a temperature of -4°F to +257°F and is constructed with a stainless steel body and has multiconductor shielded cable.
Features
Miniature design
0.25 % non-linearity
Rugged, enhanced accuracy
Enhanced immunity to electrical noise
±0.01 in to ±0.5 in range
-58 °F to 257 °F operating range (standard)
Non-rotating probe
Stainless steel construction
Extended life cycle
Infinite resolution
Captive guided spring return armature
Not RoHS compliant
Honeywell 060-P775-01 — Model Plvx, +- 0.1 IN (Model S5 Miniature Displacement Transducer). PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Description | Model Plvx, +- 0.1 IN |
| Product series | Model S5 Miniature Displacement Transducer |
