Honeywell – 060-G317-02-02 MODEL JEC-C +- 15 mm

Name: Honeywell – 060-G317-02-02 MODEL JEC-C +- 15 mm
Brand: Honeywell
SKU: 060-G317-02-02

MPN: 060-G317-02-02 · Brand: Honeywell

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Honeywell Test & Measurement
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 060-G317-02-02 be shipped?

060-G317-02-02 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 060-G317-02-02 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 060-G317-02-02 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 060-G317-02-02, subject to availability and destination.

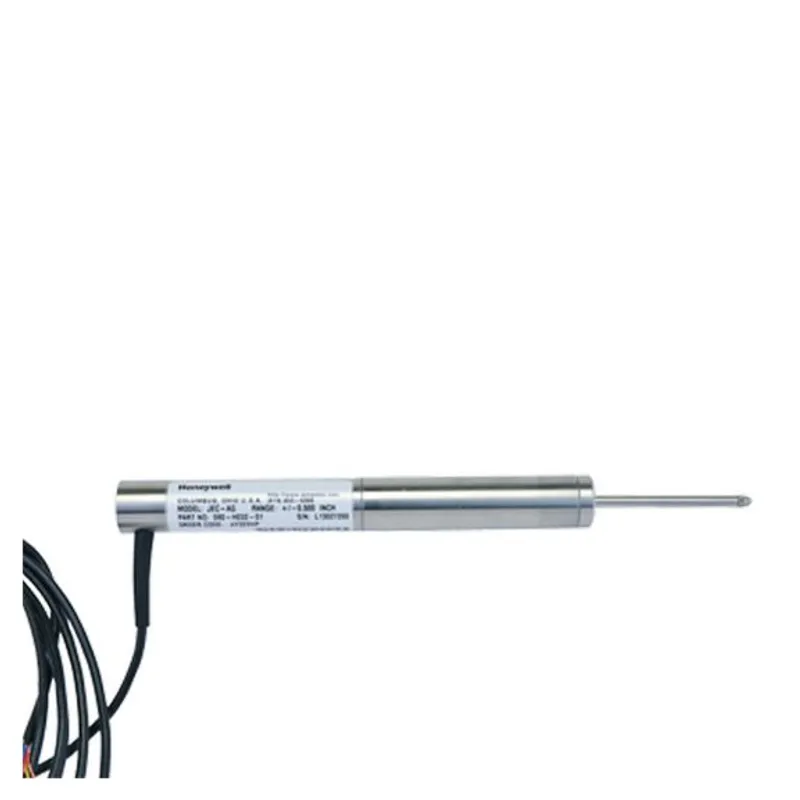

Part of Honeywell's Model JEC-AG Displacement Transducer range. Model JEC-AG DC-DC Long Stroke Displacement Transducer with captive guided spring return armature, ranges from ± 0.5 to ± 3.0 in and an accuracy of ± 0.25% of full scale. Output of either ± 5 vdc or 0 to 10 vdc with supply that can operate with either a dual power supply of ± 12 vdc to ± 20 vdc or a single power supply of 24 to 40 vdc. Unit can operate from a temperature of -58°F to +176°F and is constructed with a stainless steel body and has a 6 ft long multiconductor shielded cable.

Features

Stainless steel construction

Enhanced life cycle

Voltage regulation

Reverse polarity protected

Single or dual supply wiring (field selectable)

Captive guided spring return armature

Honeywell 060-G317-02-02 — MODEL JEC-C +- 15 mm (Model JEC-AG Displacement Transducer). PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
