Honeywell – 060-F508-01 AE601QC,A1:MODEL SC2000, 1 SG CH. RS-231

Name: Honeywell – 060-F508-01 AE601QC,A1:MODEL SC2000, 1 SG CH. RS-231
Brand: Honeywell
SKU: 060-F508-01

MPN: 060-F508-01 · Brand: Honeywell

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Honeywell Test & Measurement
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 060-F508-01 be shipped?

060-F508-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 060-F508-01 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 060-F508-01 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 060-F508-01, subject to availability and destination.

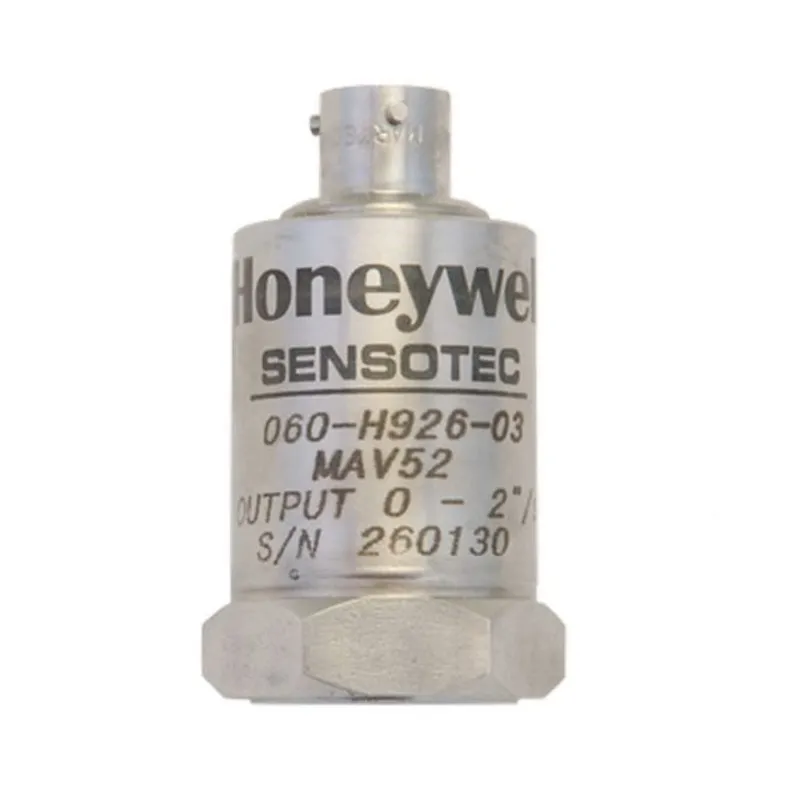

Part of Honeywell's Model MAV52 Accelerometers range. The Model MAV52 amplified piezoelectric accelerometers with velocity output are designed to be used in Industrial test and automation environments: including laboratory testing, modal studies and test cells. The MAV52 is ideal for applications where velocity content of vibration is a more meaningful parameter to measure and where noise issues or system simplicity makes integration of the acceleration signal in the sensor rather than the signal conditioning more attractive. The 4 mA to 20 mA output makes it ideal in applications where noise, cable losses and long cable runs are likely to be an issue.

The seismic element is mechanically isolated from the mounting base, resulting in a low base strain sensitivity. The stainless steel materials are non-magnetic resulting in very low magnetic field susceptibility. These features, together with a sealed body, assure accurate and reliable data. The model MAV52 is available in a number of configurations and options that includes connector or integral stainless steel armored cable (specify length at time of ordering), intrinsically safe option or a submersible format. The mounting hole can be supplied with different threads. The Model MAV52 can be supplied in a number of different sensitivities to suit the expected vibration levels for the application.

Features

Velocity measurement

2 Hz to 10 kHz usable frequency range

4 mA to 20 mA proportional to velocity

Submersible option

Honeywell 060-F508-01 — AE601QC,A1:MODEL SC2000, 1 SG CH. RS-231 (Model MAV52 Accelerometers). PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
