Honeywell – 060-CS99359688915 AD115BL,1B,2U,5H,6A,25A:MODEL KZ Low,

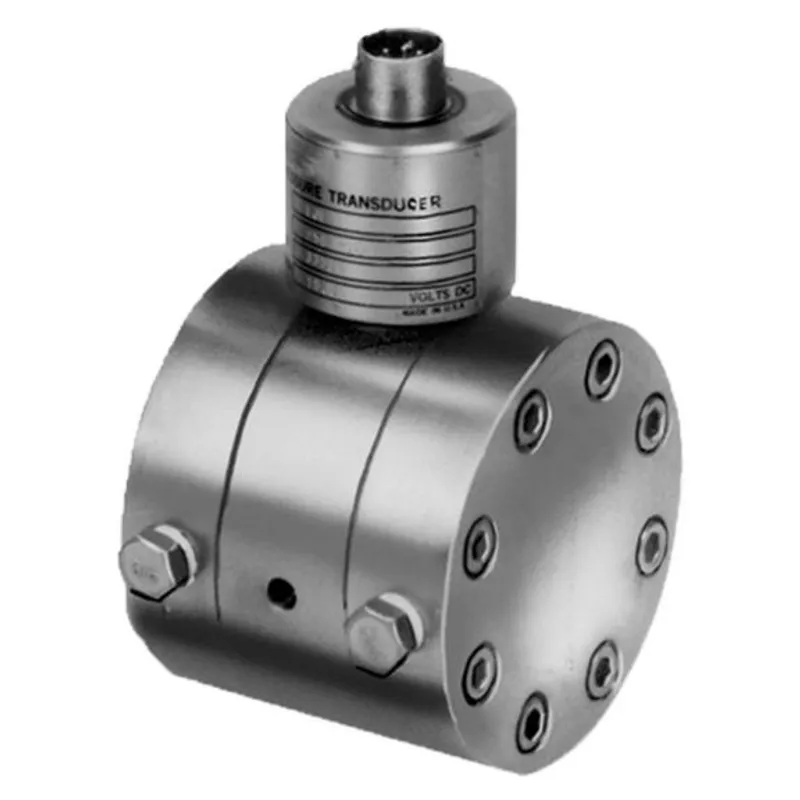

Part of Honeywell's Model Z Mid Range Differential Pressure Transducer range. The Model Z Mid range, wet/wet, differential is high accuracy, bonded, foil strain gauge transducer designed to accept fluid in both ports and measure differential pressure ranges of 50 to 750 psid. Standard features, such as overload stops and manufactured from 17-4 PH stainless steel, wetted material construction, provide unit durability in rugged, industrial environments. Each transducer is bi-directional and achieves accuracies of 0.25 % to 0.5 % full scale. The models are available with extended temperature ranges. Typical applications include flow measurement, depth sensing, pressure equalization and liquid level.

Features

0.25% accuracy

50 psid to 750 psid

mV/V (standard), 4 mA to 20 mA, 0 Vdc to 5 Vdc, or 0 Vdc to 10 Vdc output

Intrinsically safe available (2N option only)

CE approved

Honeywell 060-CS99359688915 — AD115BL,1B,2U,5H,6A,25A:MODEL KZ Low, (Model Z Mid Range Differential Pressure Transducer). PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications
