Honeywell 060-54750-2190-013

What is the Honeywell 060-54750-2190-013?

Part of Honeywell's Model 2101 Rotary Measurement System range. The Model 2100 series rotary torque measurement systems are often well suited for both short- and long-term testing and monitoring of torque or strain on rotating applications where other measurement methods are affected by vibration, dust, moisture, high RPMs, and large axial/radial shaft movements.

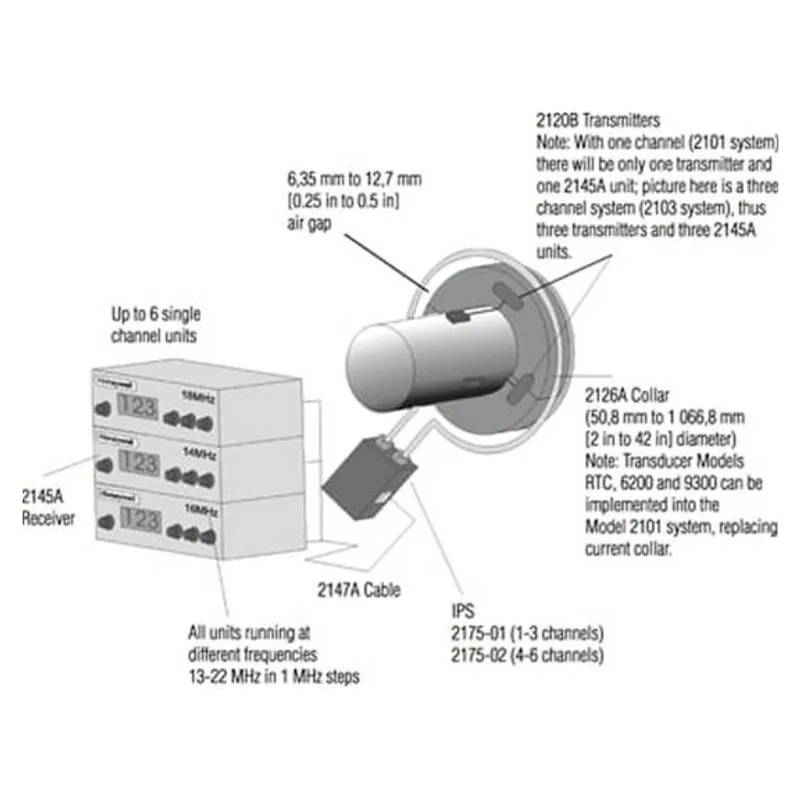

Utilizing an existing customer gage shaft assembly, the Honeywell Model 2100 Series Rotary Torque Measurement System takes the strain data from a rotating bridge assembly and converts it to a high level output via wireless telemetry. A combination of up to six transmitters and receivers operating on different frequencies will provide up to six points of measurement on the same shaft. Please contact the factory if more than six points of measurement are required. A scalable analog output and numeric display readout on the receiver provides an electrical and visual indication of the measurement. The receiver provides controls for gain and zero adjustments, display scaling, and IPS power setting.

Features

Quick short-term installation

1 channel of measurement

Induced power, no batteries required

Wireless telemetry

Custom machined, clamp-on collar machined to fit each application

Custom machined collar assembly, stationary loop antenna, induced power supply (IPS), and receiver are pre-tested as a set at the factory, enabling quick installation and setup of the system for the user

Honeywell 060-54750-2190-013 — Model 2100 1-CH Sys, 13MHZ, 8.620 Inch (Model 2101 Rotary Measurement System). PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
