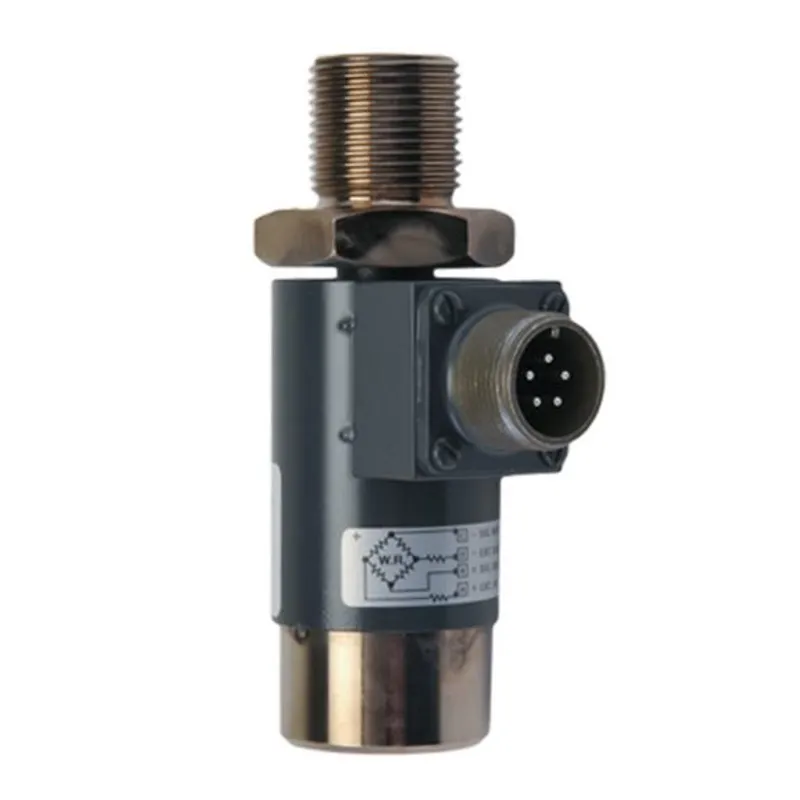

Honeywell 060-3552-01

AL410CV,2J,13A Model RM, 1,000 LBS.

MPN: 060-3552-01
Category: Honeywell Test & Measurement

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Honeywell parts? We buy surplus →

What is the Honeywell 060-3552-01?

Part of Honeywell's Model RM, RF, RH Rugged Rod End In-line Tension Load Cell range. Manufactured out of welded stainless steel to work in both laboratory settings and field applications.

Intended for tension measurement and mounted inline to the load axis and capable of ±5 Vdc or 10 Vdc, or 4 mA to 20 mA (two wire) output with an optional high output signal for added electrical noise resistance and signal resolution. In addition, they can be equipped with an optional built-in buffered shunt calibration circuit. The available models include RM model with male threads, RF with female threads and RH model with male and female threads.

Available in either tension or tension/compression versions. The tension/compression series are capable of withstanding significant off-axis loads, making them an ideal choice for in-line compression measurement or tension measurement where side loading cannot be completely controlled.

Potential applications may include fluid power transfer systems, hydraulic actuator testing, oil and gas applications, field testing, and laboratory measurements.

Honeywell 060-3552-01 — AL410CV,2J,13A Model RM, 1,000 LBS (Model RM, RF, RH Rugged Rod End In-line Tension Load Cell). PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Active
Description	AL410CV,2J,13A Model RM, 1,000 LBS.
Product series	Model RM, RF, RH Rugged Rod End In-line Tension Load Cell

060-3552-01: frequently asked questions

When can 060-3552-01 be shipped?

060-3552-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 060-3552-01 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 060-3552-01 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 060-3552-01, subject to availability and destination.
