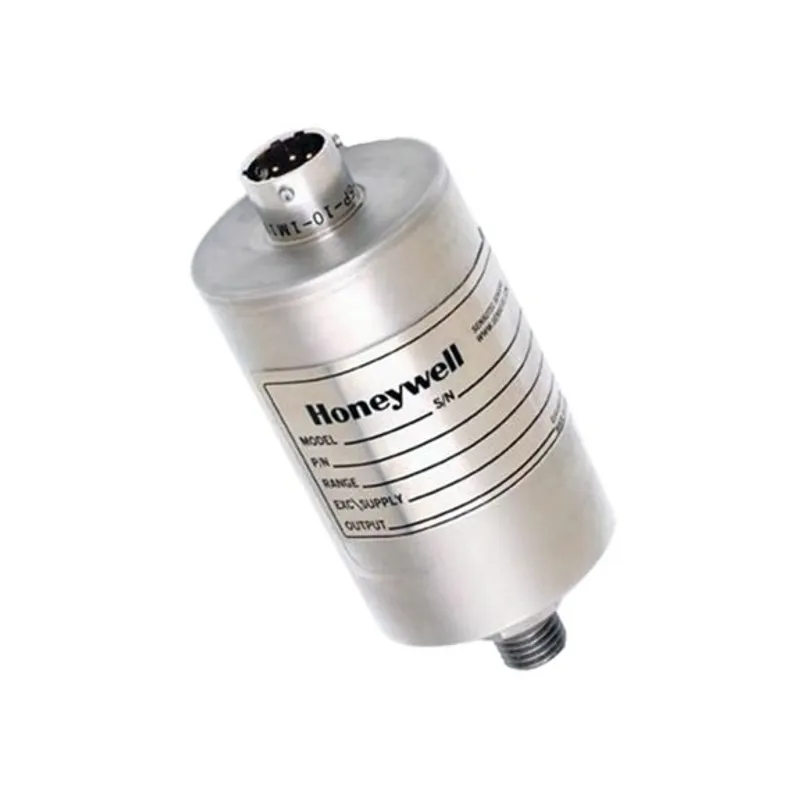

Honeywell – 060-1833-05-09 AP112BN,1A,2U,5B,6A,9A:MODEL Stje, 50
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Honeywell Test & Measurement |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 060-1833-05-09 be shipped?
060-1833-05-09 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 060-1833-05-09 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 060-1833-05-09 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 060-1833-05-09, subject to availability and destination.
Part of Honeywell's Model Super TJE Ultra Precision Pressure Transducer range. Model Super TJE is one of the most accurate industrial pressure transducers available today. The Super TJE features 0.05 % accuracy and zero temperature error of less than 0.0015 % FS/°F. These specifications are maintained by welding a double jacket shell of stainless steel along with our proprietary “true gage” second diaphragm that isolates the strain gage circuitry from atmospheric contamination. The Model STJE is manufactured out of 17-4 PH Stainless Steel for range up to 2,000 psi and 15-5 PH Stainless Steel for ranges 2,000 and above. High output options of 5 Vdc or 10 Vdc and 4 mA to 20 mA eliminate the need for an amplifier card in the data system. An optional signature calibration chip provides calibration information for automatic set-up with the Model SC four-or-twelve-channel digital indicator. The gage Model Super TJE is a strain gage based transducer and features a unique “true gage” design which utilizes a second welded stainless steel diaphragm that hermetically seals the strain gage circuitry from atmospheric contamination. This design references the primary pressure sensing diaphragm to the atmosphere, and provides a stable zero regardless of the transducer environment. The absolute Model Super TJE has an all-welded vacuum reference chamber assuring long-term stability.
Features
10 psig/a to 7500 psig/a
17-4 PH stainless steel wetted material for ranges up to 2,000 psi and 15-5 PH stainless steel wetted material for ranges 2,000 psi and greater
Isolated double wall construction
Enhanced temperature stability
0.05 % accuracy
Intrinsically safe available
Honeywell 060-1833-05-09 — AP112BN,1A,2U,5B,6A,9A:MODEL Stje, 50 (Model Super TJE Ultra Precision Pressure Transducer). PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Description | AP112BN,1A,2U,5B,6A,9A:MODEL Stje, 50 |
| Product series | Model Super TJE Ultra Precision Pressure Transducer |
