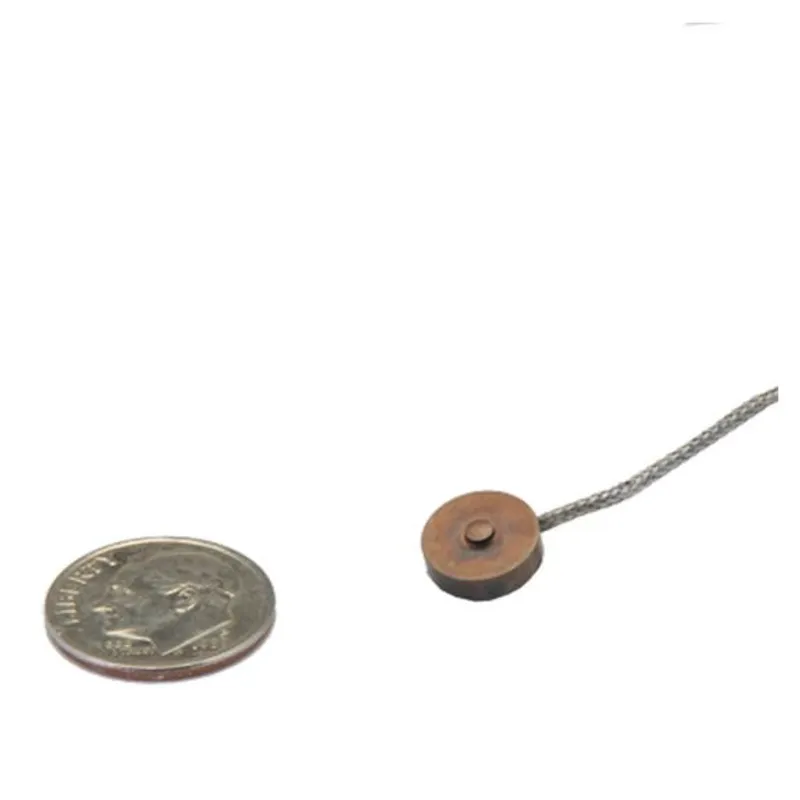

Honeywell – 060-1300-25 AL322AT,1A,2U,4A,6AM,15C:MODEL 13, 5 LBS
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Honeywell Test & Measurement |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 060-1300-25 be shipped?
060-1300-25 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 060-1300-25 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 060-1300-25 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 060-1300-25, subject to availability and destination.
Part of Honeywell's Model 13 Subminiature Load Cell range. The Model 13 (compression only) subminiature load cell is designed to measure load ranges from 150 grams to 1,000 lbs. With subminiature dimensions, including diameters from 0.38 in to 0.75 in and heights of 0.13 in to 0.25 in, these units are easily incorporated into systems having limited space. Model 13 combines high-frequency response and low deflection to achieve a combined non-linearity and hysteresis of 0.25 % to 0.5 % full scale. A balance module is included in the load cell̵7:s lead wire cable for temperature compensation and should not be removed.
Features
150 g to 1000 lb
0.7 % accuracy
mV/V output
Subminiature design
Single diaphragm construction
Honeywell 060-1300-25 — AL322AT,1A,2U,4A,6AM,15C:MODEL 13, 5 LBS (Model 13 Subminiature Load Cell). PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Description | AL322AT,1A,2U,4A,6AM,15C:MODEL 13, 5 LBS |
| Product series | Model 13 Subminiature Load Cell |
