Honeywell – 060-0713-10ZA-06 AP132BR,1G,2U,5B,6A:MODEL Z, 100 PSI

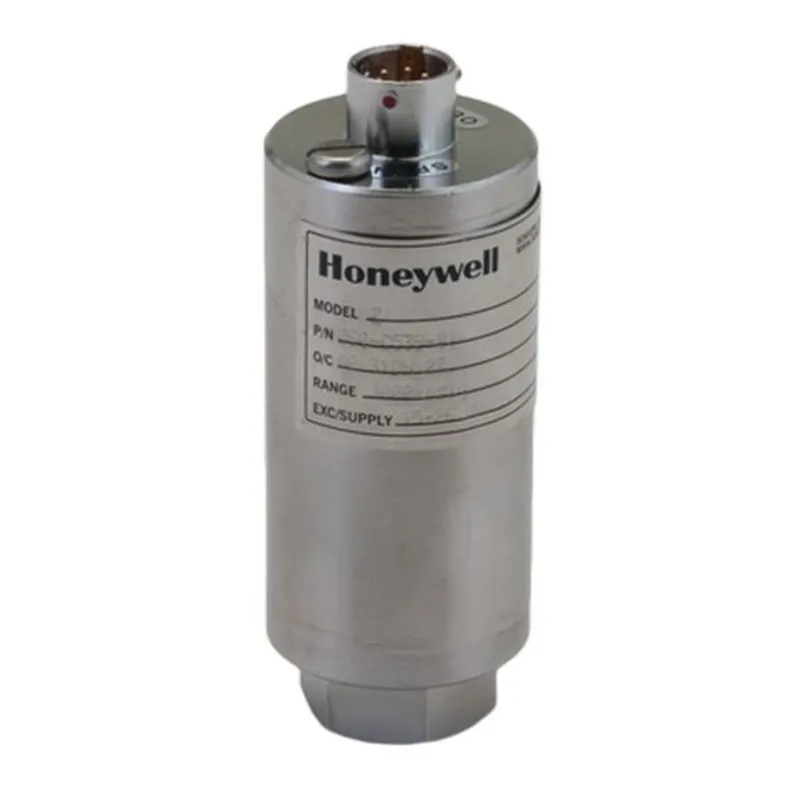

Part of Honeywell's Model Z Gage/Absolute Pressure Transducer range. The Model Z pressure transducers are sensors manufactured out of 17-4 PH stainless steel, wetted material for ranges up to 2,000 psi, 15-5 PH stainless steel, wetted material for ranges 2,000 psi and greater. These pressure transducers are built for rugged, industrial applications that require high accuracy and measurement stability. Pressure ranges span from 0.5 psi to 60,000 psi. They utilize complete four-arm 350 ohm strain gauge bridges.

The Model Z is available with a variety of options for extended temperature operation, electrical terminations, wetted material and high-level outputs including 5 Vdc or 10 Vdc and 4 mA to 20 mA. Most high-level output models have internal shunt calibration circuits as a standard feature to allow easy setup of the sensor to the data system. An optional internal signature calibration chip provides calibration information for automatic setup with the Model SC four-or-twelve channel digital indicator.

The Model Z is a strain gauge-based transducer. This design references the primary pressure sensing diaphragm to the atmosphere and provides a stable zero regardless of the transducer environment. The absolute Model Z has an all-welded, vacuum reference chamber ensuring long-term stability.

Features

0.25 % accuracy

0.005 %FS/°F temperature effect

0.5 psig/a to 60000 psig/a range

mV/V, 4 mA to 20 mA, 0 Vdc to 5 Vdc, or 0 Vdc to 10 Vdc available outputs

All-welded, stainless steel construction

Intrinsically safe available (2N option only)

CE approved

Honeywell 060-0713-10ZA-06 — AP132BR,1G,2U,5B,6A:MODEL Z, 100 PSI (Model Z Gage/Absolute Pressure Transducer). PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
