Honeywell – 060-0574-02 Model 41, 50,000 Newton
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Honeywell Test & Measurement |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 060-0574-02 be shipped?
060-0574-02 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 060-0574-02 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 060-0574-02 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 060-0574-02, subject to availability and destination.

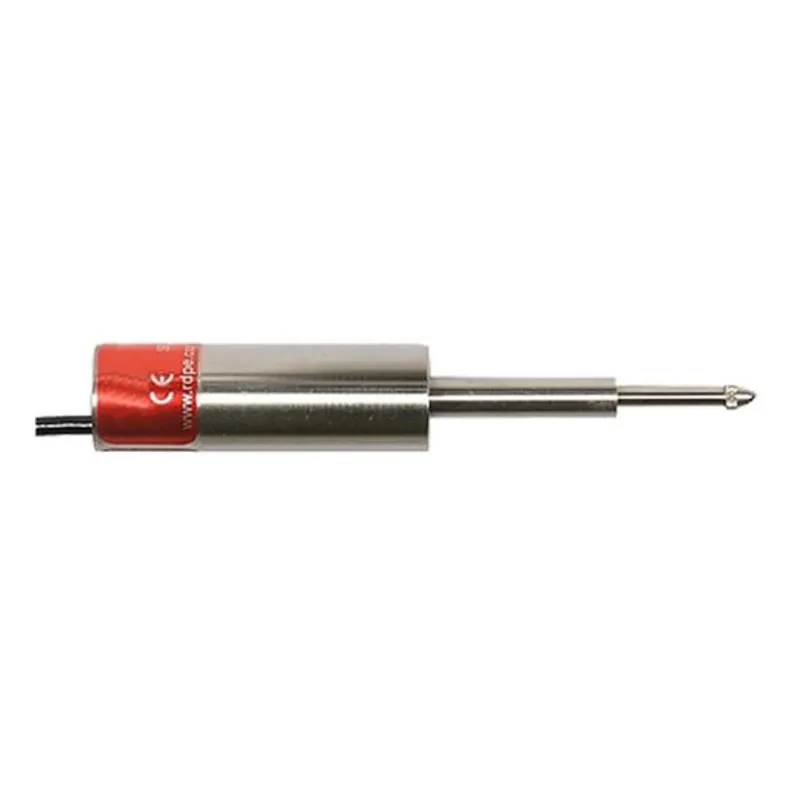

Part of Honeywell's Model S3C Miniature Displacement Transducer range. Model S3C DC-DC Miniature Displacement Transducer with captive guided spring return armature, ranges of ± 0.1 in to ± 0.4 in and accuracy of ± 0.25 % of full scale. Output of either ± 5 Vdc or 0 to 10 Vdc with supply that can operate with either a dual power supply of ± 12 Vdc to ± 20 Vdc or a single power supply of 24 Vdc to 40 Vdc. Unit can operate from a temperature of -58 °F to +158 °F and is constructed with a stainless steel body and has a 6 ft long multi-conductor shielded cable.
Features
Miniature design
Cost efficient
0.25 % non-linearity
Stainless steel construction
±0.1 in to ±0.4 in range
Infinite resolution
Single or dual supply wiring (field selectable)
Captive guided spring return armature
Not RoHS compliant
Honeywell 060-0574-02 — Model 41, 50,000 Newton (Model S3C Miniature Displacement Transducer). PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Description | Model 41, 50,000 Newton |
| Product series | Model S3C Miniature Displacement Transducer |
