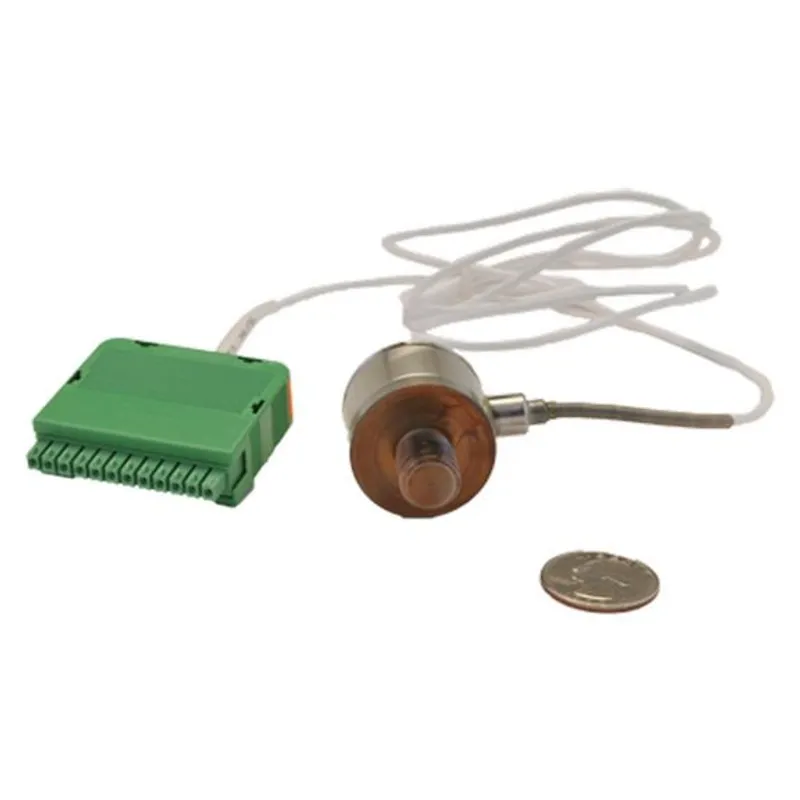

Honeywell – 060-0544-02-01 AL311CR,1A,2U,4A,6E,9A,15C:MODEL 31,

Part of Honeywell's Model 31 High Range Precision Miniature Load Cell range. Honeywell miniature load cells are designed to fit into systems with limited space or tight clearances. The Model 31 series are Honeywell's highest accuracy, rugged, miniature load cells designed to measure both tension and compression load forces from 50 g to up to 10,000 lb or 0.5 N up to 50,000 N, with high accuracies of 0.15 % to 0.25 % full scale.

The all-welded, stainless steel construction is designed to eliminate or reduce to a minimum the effect of off-axis loads. Can be completely welded for underwater applications. If you need special modifications or a complete custom design to meet your unique requirements, please contact us.

Features

Miniature sizes ranging from 12,7 mm to 35,05 mm in diameter and from 11,43 mm to 38,1 mm height

Load range measurements: 50 gs to 10,000 lb: 0.5 N to 5,000 N: or 5 lb to 50,000 lb

Stainless steel construction: All-welded option available for underwater applications

High accuracies of 0.15 % to 0.25 % full scale

mV/V output

Honeywell 060-0544-02-01 — AL311CR,1A,2U,4A,6E,9A,15C:MODEL 31, (Model 31 High Range Precision Miniature Load Cell). PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications
