Honeywell 0235-0303

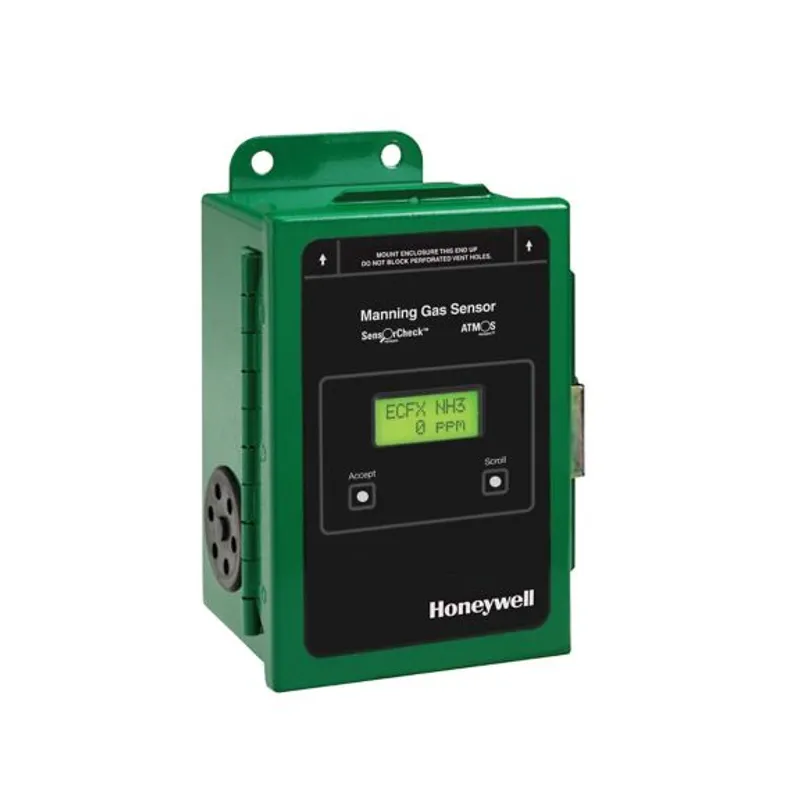

Manning EC-FX-NH3 Gas Detector

MPN
0235-0303
Price and lead time confirmed within 1 business day

Discontinued by Honeywell — we can still source the original 0235-0303 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Honeywell parts? We buy surplus →

What is the Honeywell 0235-0303?

Now one tough sensor can work in three harsh environments. With the stability you can count and low cost you want, the EC-FX-NH3 is the new gold standard in ammonia detection.

Product Overview:

If you use ammonia as part of your refrigeration process, you face several challenges in protecting your plant from the danger and expense of ammonia leaks within cold storage, refrigerated process areas and the engine rooms. Introducing a better, tougher, longer-lasting sensor to cover your needs. The EC-FX-NH3 maintains sensitivity and accuracy — even with rapid changes in temperature and humidity.

Features & Benefits:

Responds quickly to ammonia concentrations in low parts per million (PPM)

Rugged construction for long-term reliability

ATMOSTM Technology for environmental flexibility

Quick Specs:

Stainless steel enclosure with LCD options

All-new ammonia sensor with a proprietary electrolyte

3-year warranty—twice the warranty of most sensors

Honeywell Manning 0235-0303 — Rugged gas detector with an electrochemical sensor for Ammonia. Discontinued by Honeywell — no longer in the current range. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleDiscontinued by Honeywell
Brand lineManning

Overview

BrandManning
Warranty3 Years from Date of Shipment

Features

Sub-CategoryGas Detection Sensors & Transmitters, Gas Detection Sensors & Transmitters
Display TypeLCD
Display IncludedYes
Features & BenefitsATMOS™ Technology, Lower Cost of Ownership, Optional LCD for Real-Time Visibility, Rugged Construction for Long-Term Reliability, SensorCheck™ Technology, Stability
Relay IncludedYes
Sensors Included1
Wireless TechnologyATMOS™ Technology
Visual IndicatorsLED Indicator
Replacement PartsAmmonia (NH3) Cell
Repeatability<10% Full Scale

Dimensions & Weight

Weight range3 lbs

Technical Specifications

Humidity Range5 to 100% RH (Condensing)
Number of Analog Outputs1
Analog Output Signal TypemA
Display MatrixAlpha Numeric
Accuracy± 5% Full Scale
Maximum Pressure10 psig
Gas TypeNH3
Measuring RangeHigh Range: 0-500 ppm, 0-1000 ppm, Low Range: 0-100 ppm (Standard), 0-200 ppm, 0-250 ppm

Operating Characteristics

Minimum Temperature-45°C
Storage Temperature-40 to +49°C

Electrical Specifications

Analog Output Signal Current4 to 20 mA
Power Requirement24 VDC
Operating Voltage24 VDC

Material Specifications

MaterialStainless Steel
Enclosure MaterialStainless Steel

Standards & Certifications

Specifications Met0.125 (ID) x 0.250 (OD)
NEMA RatingNEMA 1
Ingress ProtectionIP44

Applications & Compatibility

ApplicationCold Storage, Engine Rooms, Refrigeration Systems

Others

IndustryEnergy

Ordering codes

Part numbers on this product page0235-0303, 10249-L9, 106584, 1998M0872, EC-FX-CA, EC-FX-CK, EC-FX-CK1, EC-FX-CK2, EC-FX-NH3-HR, EC-FX-NH3-LR, EC-FX-REG1, EC-FX-REG2, ECFX-100-ALN, ECFX-100-ALS, ECFX-100-AN, ECFX-100-AS, ECFX-100-LN, ECFX-100-LS, ECFX-100-N, ECFX-100-N-EM, ECFX-100-S, ECFX-1000-ALN, ECFX-1000-ALS, ECFX-1000-AN, ECFX-1000-AS, ECFX-1000-LN, ECFX-1000-N, ECFX-1000-N-EM, ECFX-1000-S, ECFX-200-AN, ECFX-200-AS, ECFX-200-N, ECFX-200-N-EM, ECFX-200-S, ECFX-250-ALN, ECFX-250-ALS, ECFX-250-AN, ECFX-250-AS, ECFX-250-LN, ECFX-250-N

0235-0303: frequently asked questions

Can I still buy the 0235-0303 now that it is discontinued?

Yes. Honeywell has discontinued the 0235-0303, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 0235-0303 be shipped?

0235-0303 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 0235-0303 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 0235-0303 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0235-0303, subject to availability and destination.
