Honeywell 022253.10

Escape Route Technology - 1380 Switch Programme Door Terminals

MPN: 022253.10
Category: Honeywell Access Control

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Honeywell parts? We buy surplus →

What is the Honeywell 022253.10?

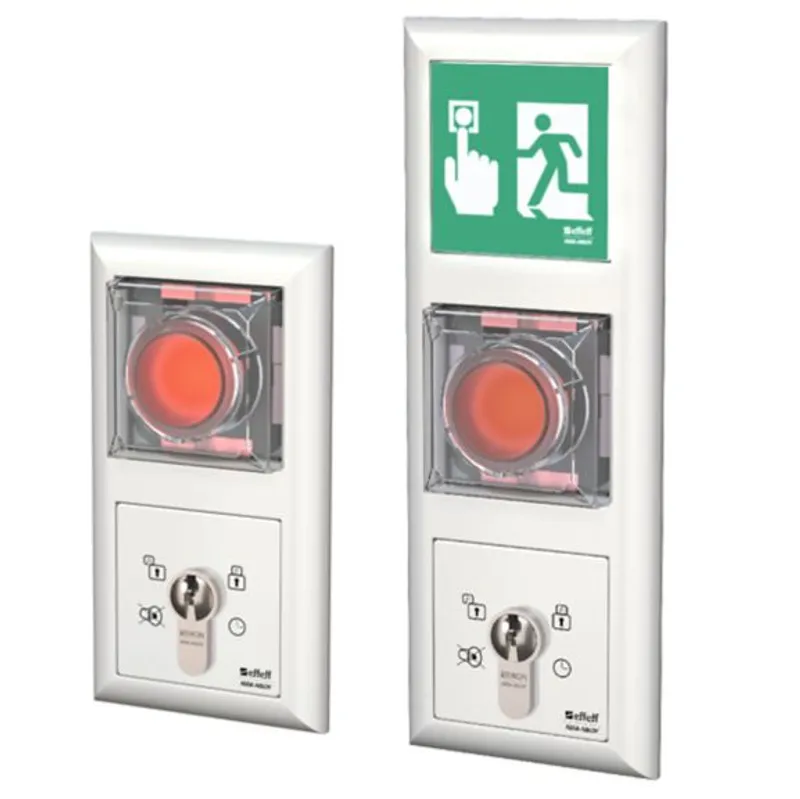

The flush-mounted emergency exit terminal is suitable for integration into standard switch ranges from leading manufacturers. The terminal, consisting of the emergency button and operating unit, is installed in two flush-mounted switch boxes and covered with the included frame. It is also suitable for connection to an emergency exit control unit (part no. 022660, model 720-40).Emergency button with transparent cover. The red operating lens of the flush-mounted emergency exit terminal is integrated into the emergency button with its transparent protective cover in such a way that it cannot be lost after activation. The transparent cover can be opened. A buzzer and tamper contact are integrated into the emergency button and the key switch.

Features & Benefits:

Emergency button (transparent cover) and key switch with integrated tamper contact

Red operating lens cannot be lost, as it is integrated into the transparent cover

Fits standard flush-mounted boxes (deep)

Compatible with switch ranges from leading manufacturers

Hinged transparent cover

Emergency button and key switch with integrated buzzer

Screw-in terminals for easy installation

Meets the highest design standards and offers optimal integration into buildings

Technical Data

Control unit not included, external emergency exit control unit 022660 required (model 720-40)

Emergency button

Key switch with Euro profile cylinder, adjustable locking bolt 8 x 45°, length 30.5 mm

LED indicator: red, green, yellow

Buzzer

Tamper contact on emergency button and key switch

Operating voltage 12-24 V DC

Current consumption 0.09 A at 24 V DC

Operating temperature range 0 °C to +40 °C

Protection class IP 30

Color per switch range

Honeywell 022253.10 — Door terminal, model 1380, including: 1 x Exit warning sign (or warning sign module in the 3 frame model), 1 x escape door control module, 1 x key switch module, 1 x frame. Requires remote escape door controller 720-40. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle

Active

Ordering codes

Part numbers on this product page

022253.10, 022254.10, 022258.10, 022270.10, 022677.20, 022678.20, 022680.20, 022682.20, 022683.20
