Honeywell – 02104-N-4061 XL Atex LR SI DVC KIT

MPN: 02104-N-4061 · Brand: Honeywell

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Honeywell Gas & Flame Detection
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 02104-N-4061 be shipped?

02104-N-4061 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02104-N-4061 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02104-N-4061 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02104-N-4061, subject to availability and destination.

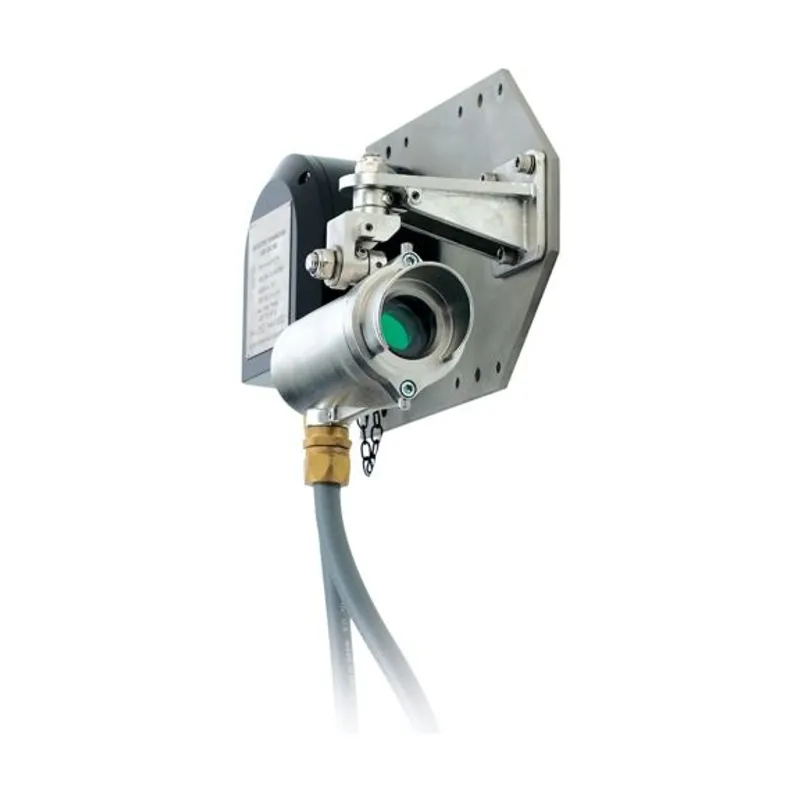

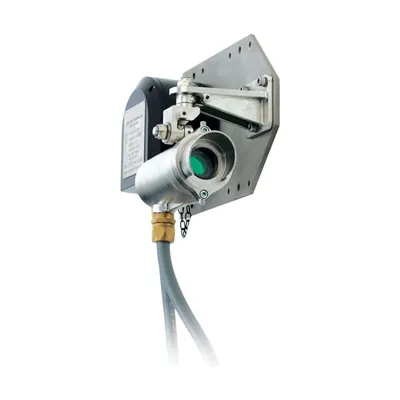

Part of Honeywell's Searchline Excel Open Path Infrared Gas Detector range. World-renowned infrared open path flammable gas detector offering unrivalled performance and sensitivity.

Product Overview:

The Searchline Excel is the World’s best selling infrared open path gas detector with over 6,000 units installed in challenging applications throughout industry. From the Arctic Circle to Middle Eastern Deserts, customers have repeatedly selected the Searchline Excel as their preferred choice.

The fundamental design of Searchline Excel has remained the same since its original launch and it continues to lead the field.

Searchline Excel is totally immune to interference from sunlight or any other sources of radiation such as flare stacks, arc welding or lightning.

The patented optical design used in Searchline Excel has proven itself as the only solution available that fully addresses all the challenges of open path gas detection. Unlike some competitive devices, it does not try to hide fundamental design inadequacy with the use of software masks that can compromise the unit’s ability to detect gas.

Searchline Excel employs a patented double band pass filter that fully compensates for all types of fog and / or rain, thereby allowing it to continue to operate accurately and reliably in all climatic conditions.

Additional Features and Benefits:Why open path gas detection?

Open path detectors complement the use of individual point detectors and offer many significant benefits including:

Wider area coverage - most likely to pick up any leak

Very high speed of response

NO unrevealed failure modes - no possibility of blocked gas path to detector

Detector location not as critical

Indicates size of hazard

Sample and reference detector alignment:

Reduced sensitivity to alignment

Guaranteed performance

Reduced sensitivity to partial obscuration

Improved hand-held software:

Simple confirmation of alignment

Visual indication of target and current signal levels

Compatible with existing systems

Improved telescope:

High Power Rifle Telescope

Easier to align with greater zoom and magnification

Robust shock resistant design

Features & Benefits:

Fast speed of response provides earliest warning

High sensitivity allows low alarm set points

Alignment free design makes installation simple

Duct flex and vibration tolerance keeps the system online

Integral functional gas test facility allows for simple system check

Contamination resistant optics reduce the need for unscheduled maintenance

Not affected by interference from water vapor

Immune to catalytic poisons

Works in inert atmospheres

Quick Specs:

Response speed: T90 less than 3 seconds (under normal operating conditions)

Range: 0 to 5 LEL m.

Operating temperature: -40° to +65°C (-40° to 150°F)
