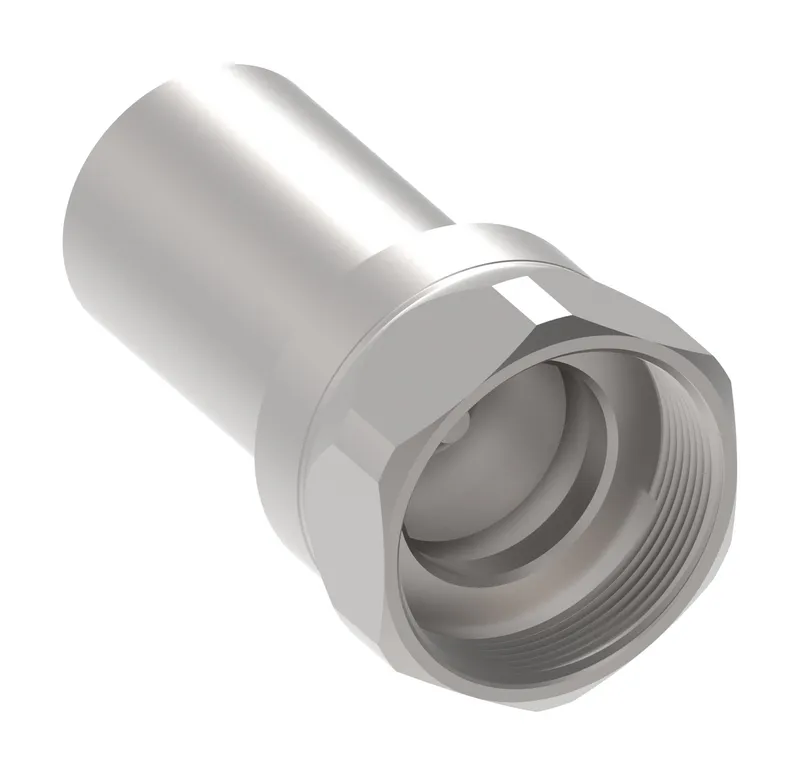

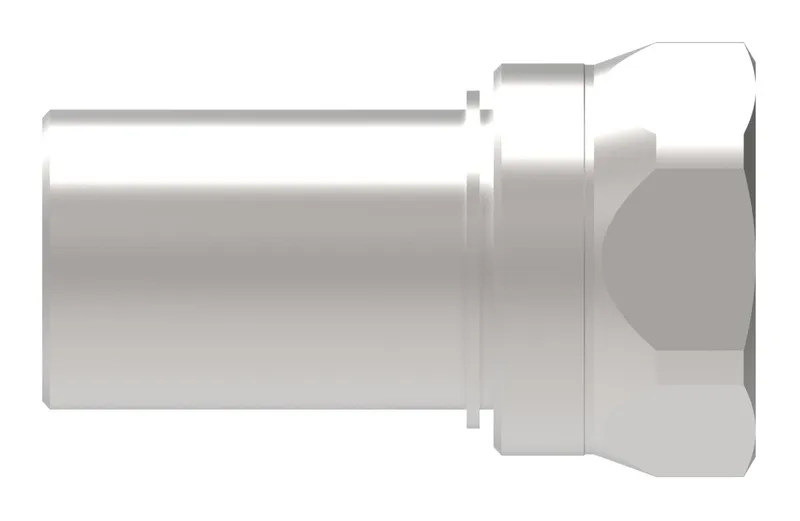

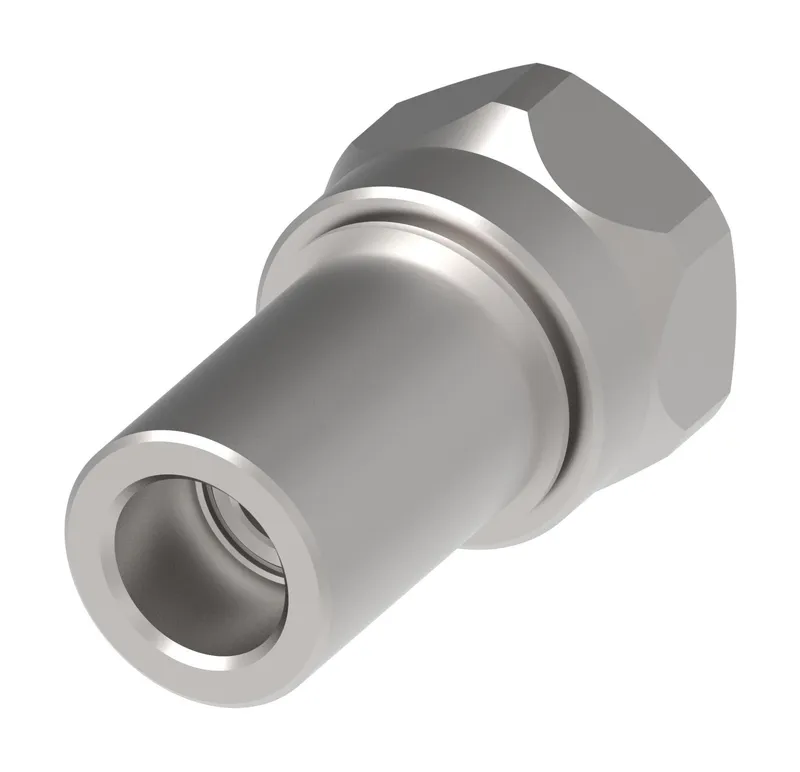

COUPLING,W6000,F,1/4,SS,-4MNPT,FKM

Name: COUPLING,W6000,F,1/4,SS,-4MNPT,FKM
Brand: Danfoss (Drives)
SKU: WV0621700

MPN: WV0621700 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Danfoss Hansen® quick disconnect couplings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can WV0621700 be shipped?

WV0621700 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up WV0621700 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for WV0621700 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for WV0621700, subject to availability and destination.

Danfoss COUPLING,W6000,F,1/4,SS,-4MNPT,FKM, manufacturer part number WV0621700. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Angle shape	Straight
Body size	1/4
Brand	Danfoss
End Type 1	Male pipe (NPT)
Hex size 1 IN	1.260
Item type	Female half
Latch type	Screw to connect
Product height in	1.380
Product height mm	35.052
Product length in	2.090
Product length mm	53.086
Product material	Stainless steel
Product width in	1.380
Product width mm	35.052
Safety locking mechanism	None
Seal material	Fluorocarbon (FKM)
Sub brand	Gromelle
Thread size 2	1/4-18 NPT
Valve type	2 way
Working pressure max psi	15950
Working temperature max F	392
Working temperature min F	-4
