Danfoss WV0601744

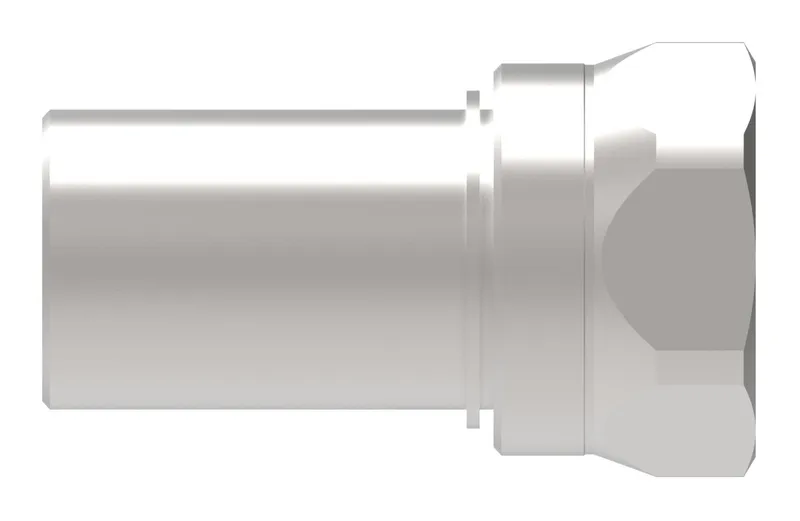

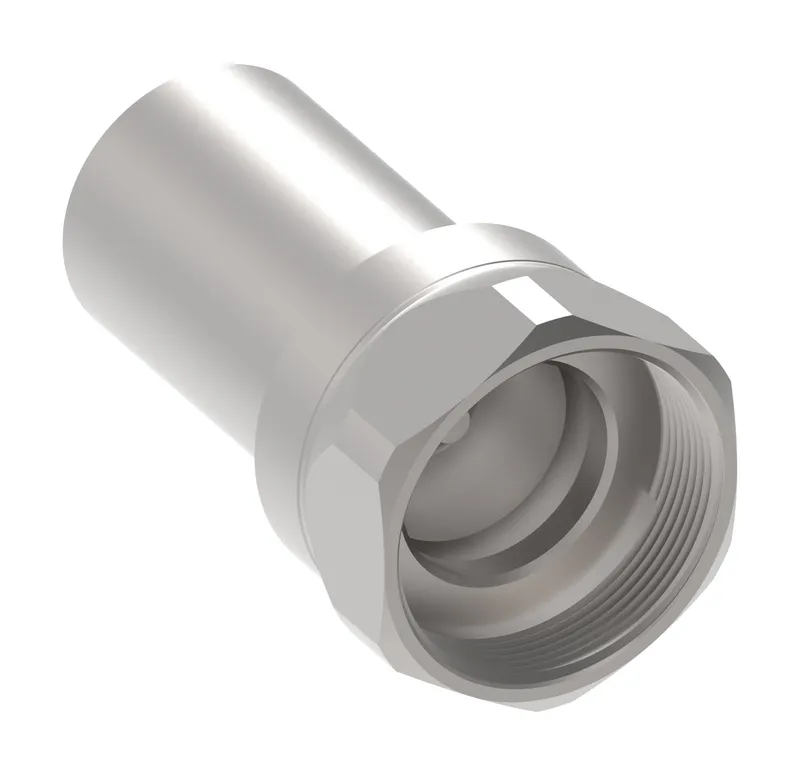

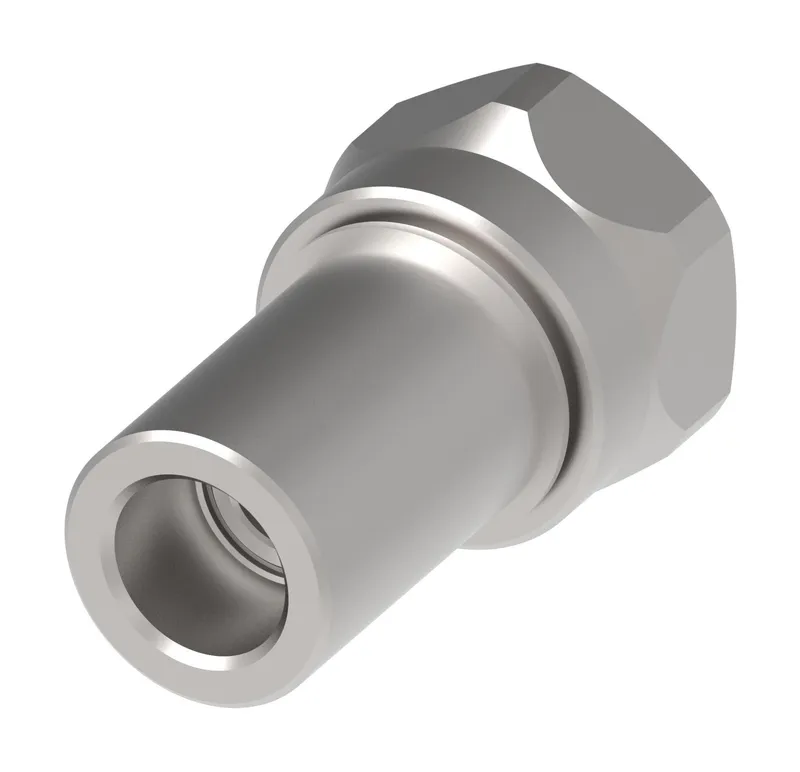

COUPLING,W6000,F,1/4,CS,-4BSPP,NBR

MPN: WV0601744
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss WV0601744?

Danfoss COUPLING,W6000,F,1/4,CS,-4BSPP,NBR, manufacturer part number WV0601744. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Angle shape	Straight
Application	Construction, General industry, Heavy load and high pressure, Material handler, Petrochemical
Body size	1/4
Brand	Danfoss
End size 1	-4
End Type 1	Female BSPP port washer seal.
Finish plating	Zinc trivalent
Flow rate GPM	3.06
Fluid loss cc	1.10000
Hex size 1 IN	1.260
Item type	Female half
Latch type	Screw to connect
Product height in	1.380
Product height mm	35.052
Product length in	2.090
Product length mm	53.086
Product material	Carbon steel
Product width in	1.380
Product width mm	35.052
Safety locking mechanism	None
Sub brand	Gromelle
Thread size 1	G 1/4
Valve type	2 way
Working pressure max psi	15950
Working temperature max F	212
Working temperature min F	-4
