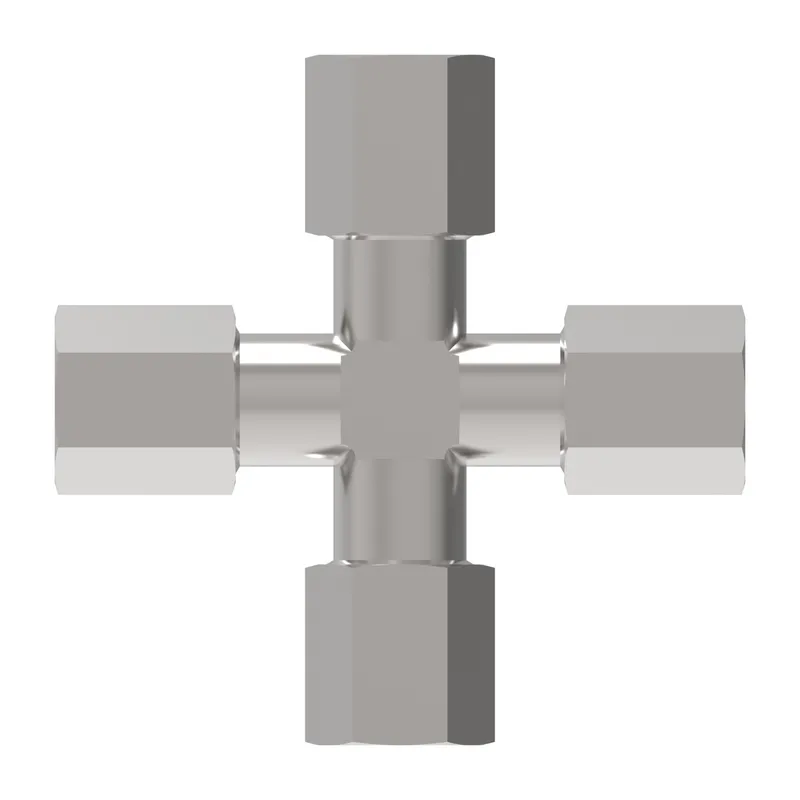

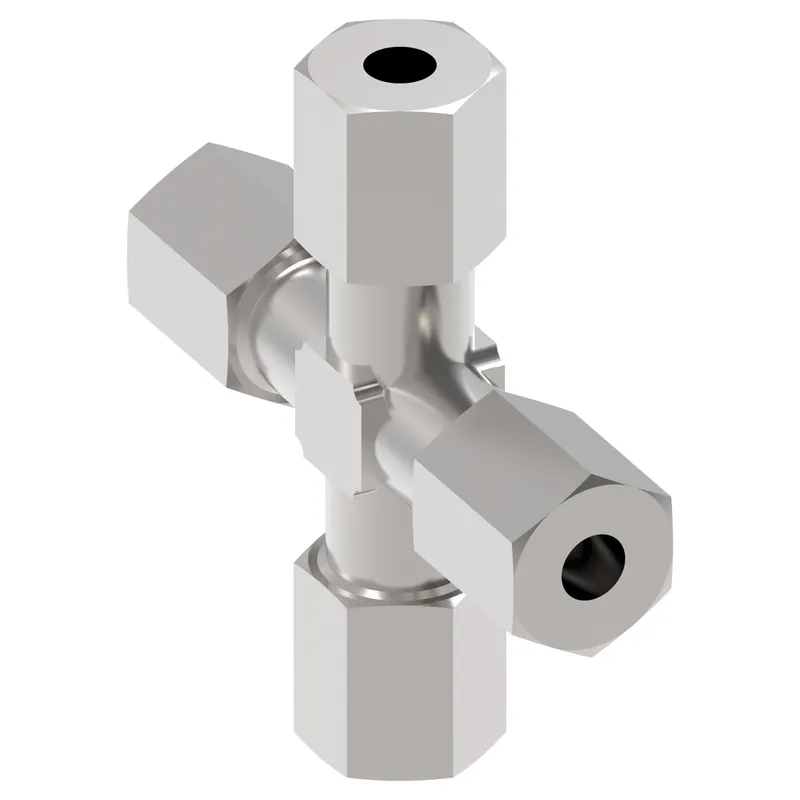

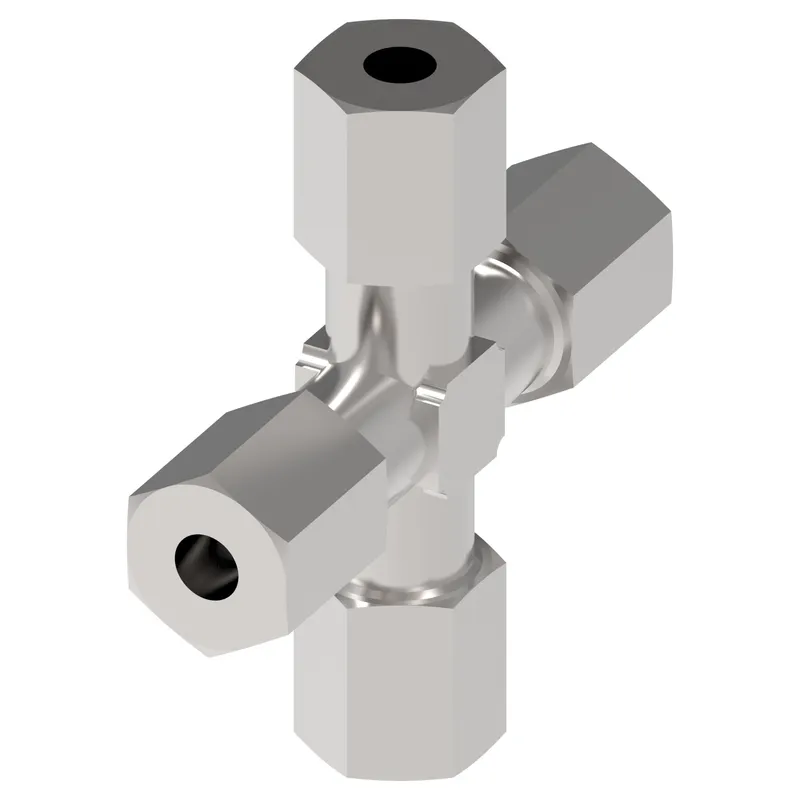

Danfoss WAL621034

TUBE FTG, P-KV 16 S-1.4571

MPN: WAL621034
Category: Tube fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss WAL621034?

Danfoss TUBE FTG, P-KV 16 S-1.4571, manufacturer part number WAL621034. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Angle shape	Cross
Brand	Danfoss
Complete connector	Yes
End size 1	18L
End size 2	18L
End size 3	18L
End size 4	18L
End Type 1	24 deg. tube port light duty
End Type 2	24 deg. tube port light duty
End type 3	24 deg. tube port light duty
End type 4	24 deg. tube port light duty
Finish plating	Guardian Seal
Item type	Tube to tube connector
Model Code 1	P-KV 18 L A4GS
Product height in	3.386
Product height mm	86.000
Product length in	3.386
Product length mm	86.000
Product material	Carbon steel
Product serial name	P-KV …
Product width in	3.386
Product width mm	86
Sub brand	Waltech
Thread size 1	M26x1.5
Thread size 2	M26x1.5
Thread size 3	M26x1.5
Thread size 4	M26x1.5

WAL621034: frequently asked questions

When can WAL621034 be shipped?

WAL621034 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up WAL621034 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for WAL621034 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for WAL621034, subject to availability and destination.
