Danfoss WAL617631

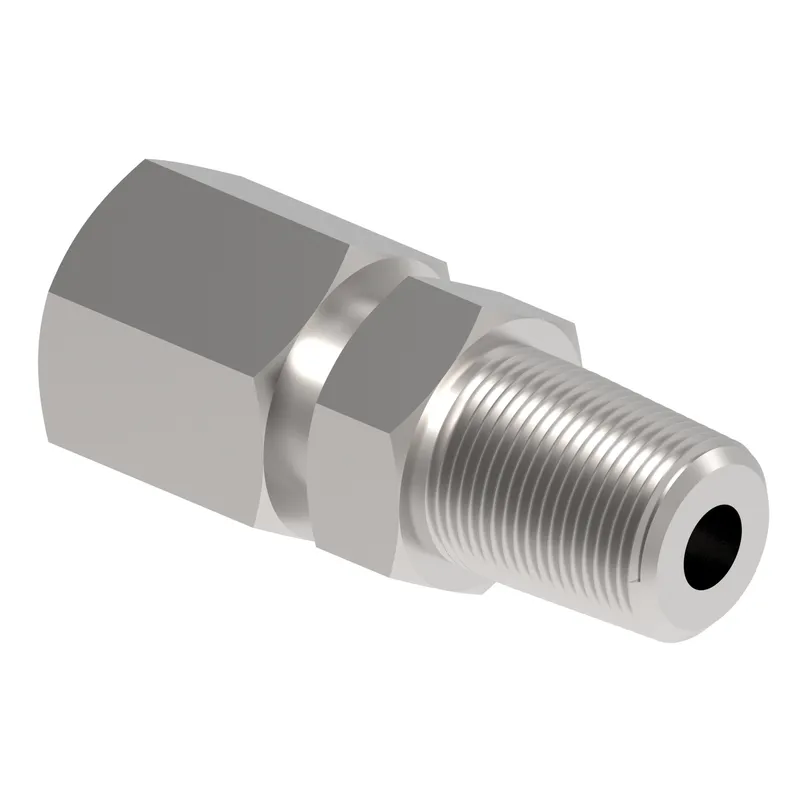

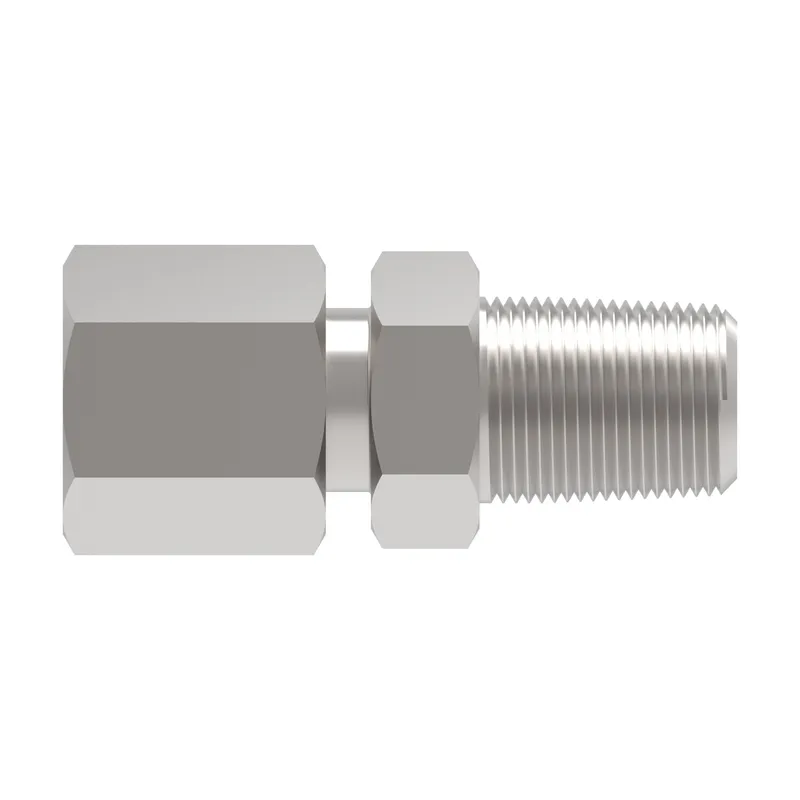

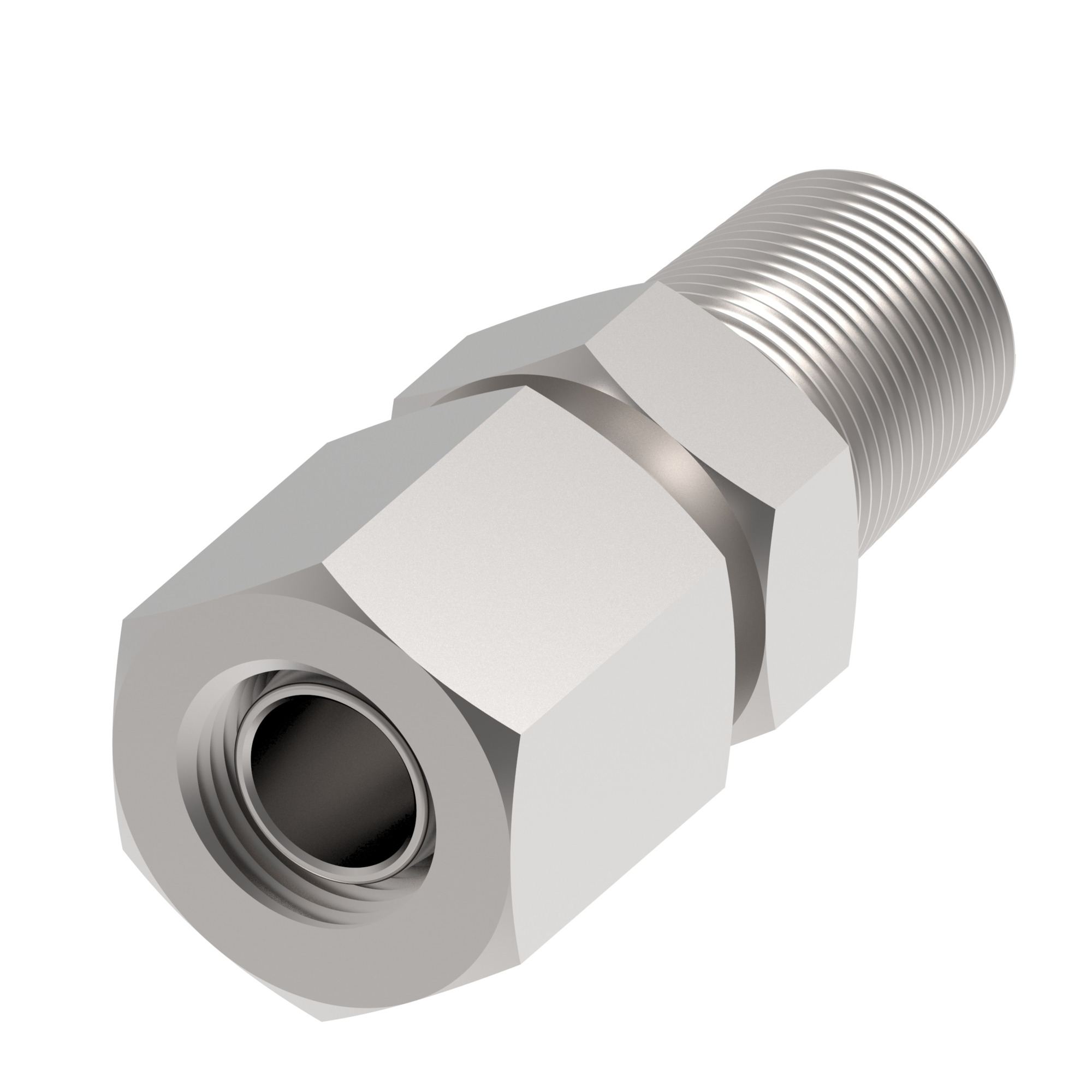

TUBE FTG, EGESD 18 L/1/2NPT-VI-1.4571

MPN: WAL617631
Category: Tube fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss WAL617631?

Danfoss TUBE FTG, EGESD 18 L/1/2NPT-VI-1.4571, manufacturer part number WAL617631. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Angle shape	Straight
Brand	Danfoss
Complete connector	No
End size 2	18L
End Type 1	Male ISO 9974-2 type E (L)
End Type 2	24 deg. DKO swivel light duty
Finish plating	Guardian Seal
Hex size 1 IN	0.940
Hex size 2 IN	1.260
Item type	Adjustable connector
Model Code 1	EGESD 18 L/M18X1,5-WD A4GS
Product height in	1.260
Product height mm	32.000
Product length in	1.870
Product length mm	47.500
Product material	Carbon steel
Product serial name	EGESD … M-WD
Product width in	1.260
Product width mm	32
Seal material	Nitrile (NBR)
Sub brand	Waltech
Thread size 1	M18x1.5
Thread size 2	M26x1.5
Tube outside diameter 1 IN	0.390
Tube outside diameter 2 IN	0.390
Working pressure bar	400.0
Working temperature max C	120
Working temperature min C	-40
