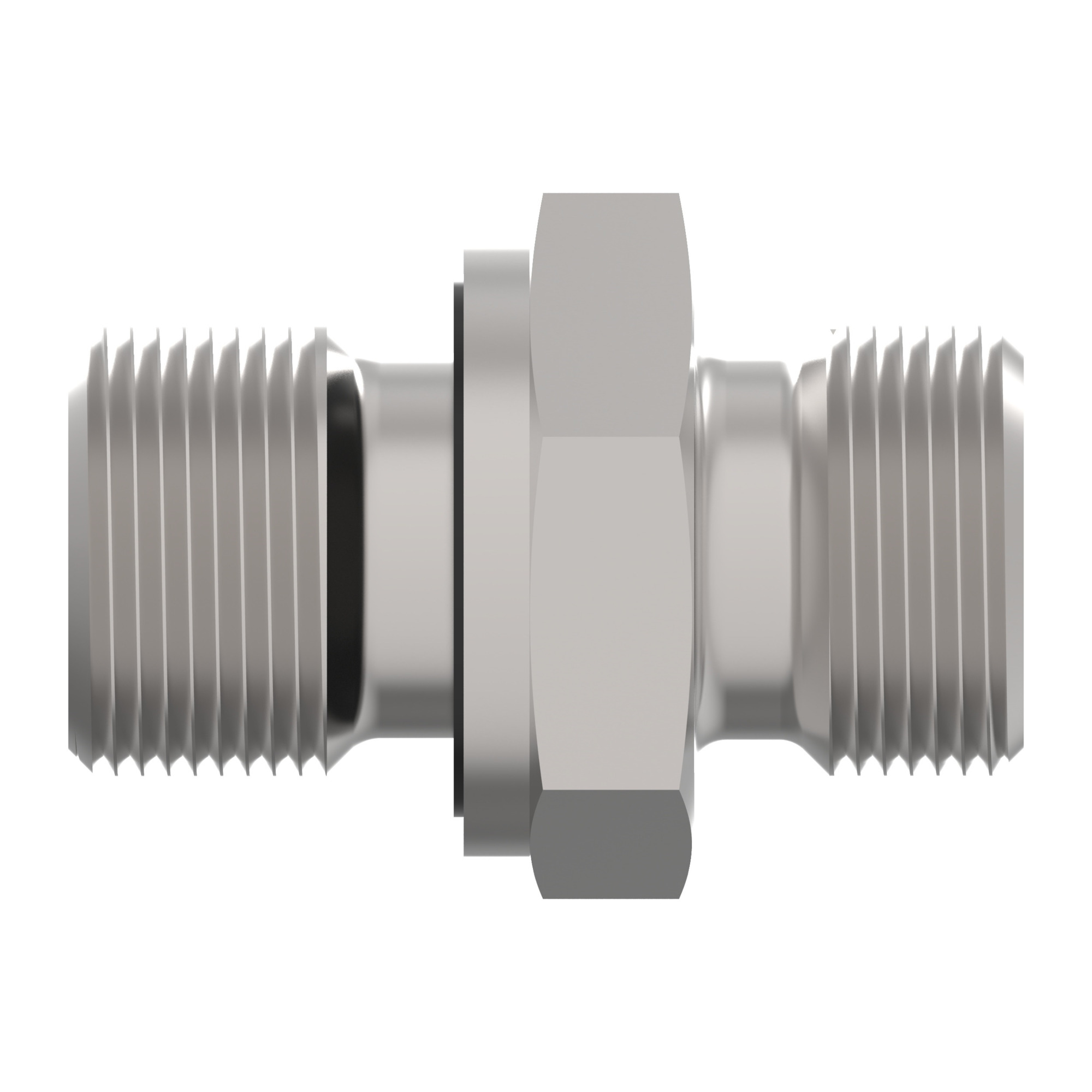

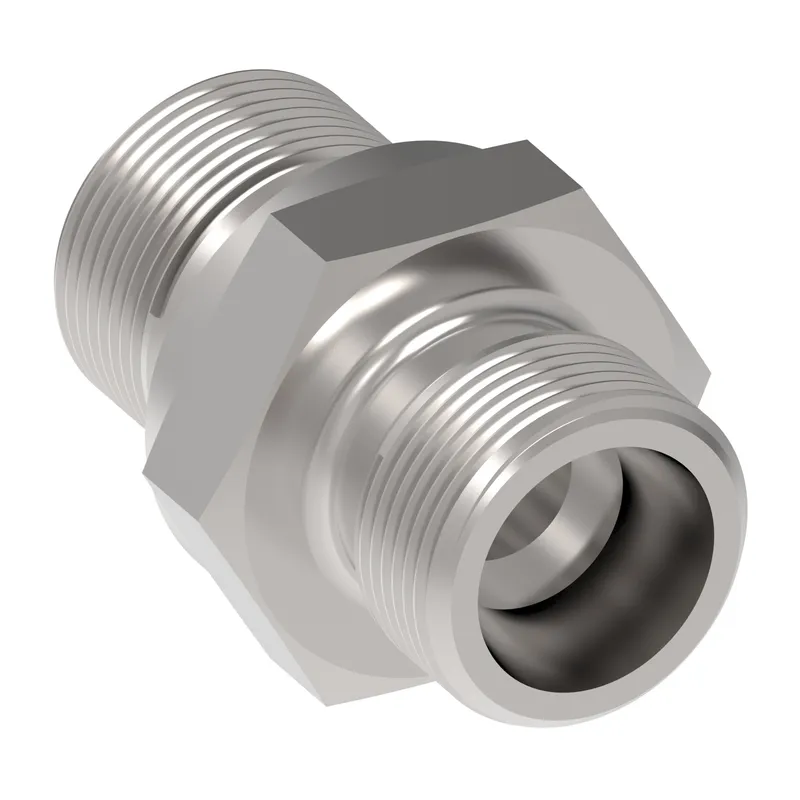

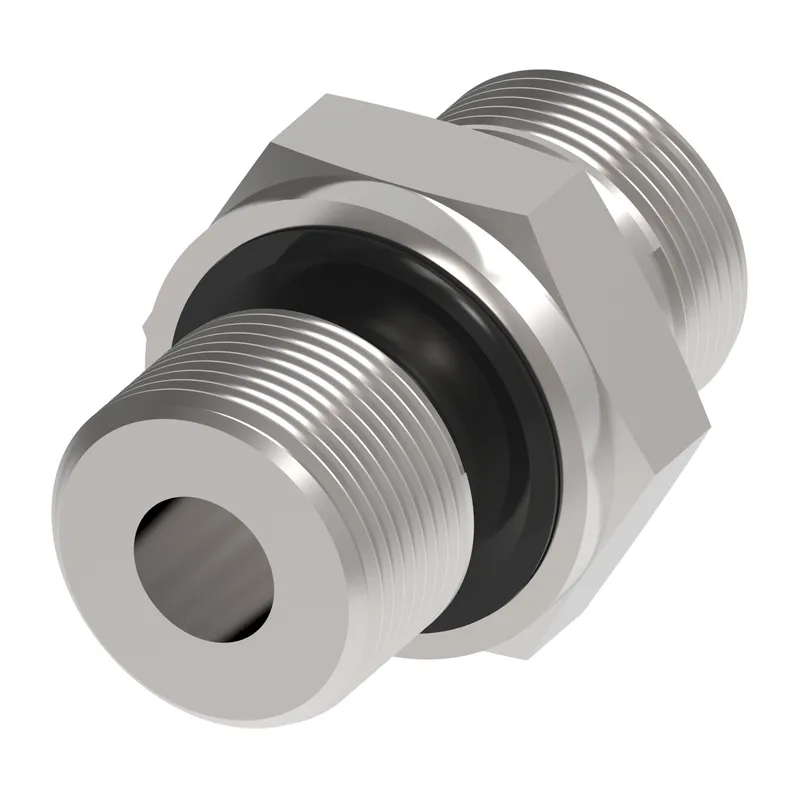

Danfoss WAL615697

TUBE FTG, GES 10 L/9/16-18UNF VI A4GS

MPN: WAL615697
Category: Tube fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Danfoss WAL615697?

Danfoss TUBE FTG, GES 10 L/9/16-18UNF VI A4GS, manufacturer part number WAL615697. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Angle shape	Straight
Brand	Danfoss
Complete connector	No
End size 1	10L
End Type 1	24 deg. tube port light duty
End Type 2	Male ISO 9974-2 type E (L)
Finish plating	Guardian Seal
Item type	Male stud connector
Model Code 1	GES 10 L/M10X1-WD A2GS
Product height in	0.748
Product height mm	19.000
Product length in	1.417
Product length mm	36.000
Product material	Carbon steel
Product serial name	GES … M-WD
Product width in	0.748
Product width mm	19
Seal material	Nitrile (NBR)
Sub brand	Waltech
Thread size 1	M16x1.5
Thread size 2	M14x1.5

WAL615697: frequently asked questions

When can WAL615697 be shipped?

WAL615697 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up WAL615697 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for WAL615697 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for WAL615697, subject to availability and destination.
