Danfoss WAL613789

TUBE FTG, EMASD 8 SR VI A4GS

MPN: WAL613789
Category: Tube fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss WAL613789?

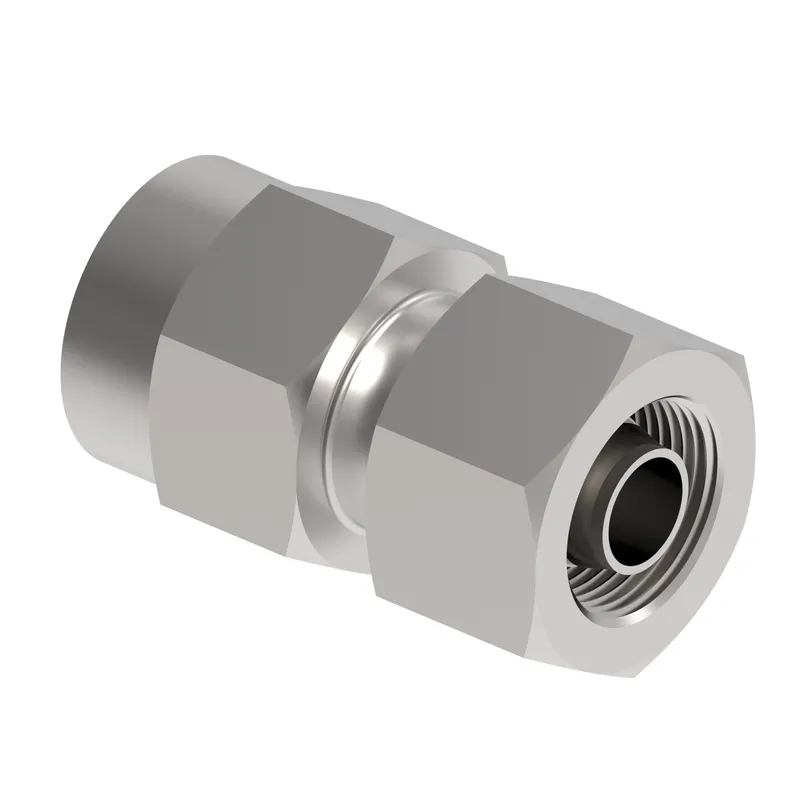

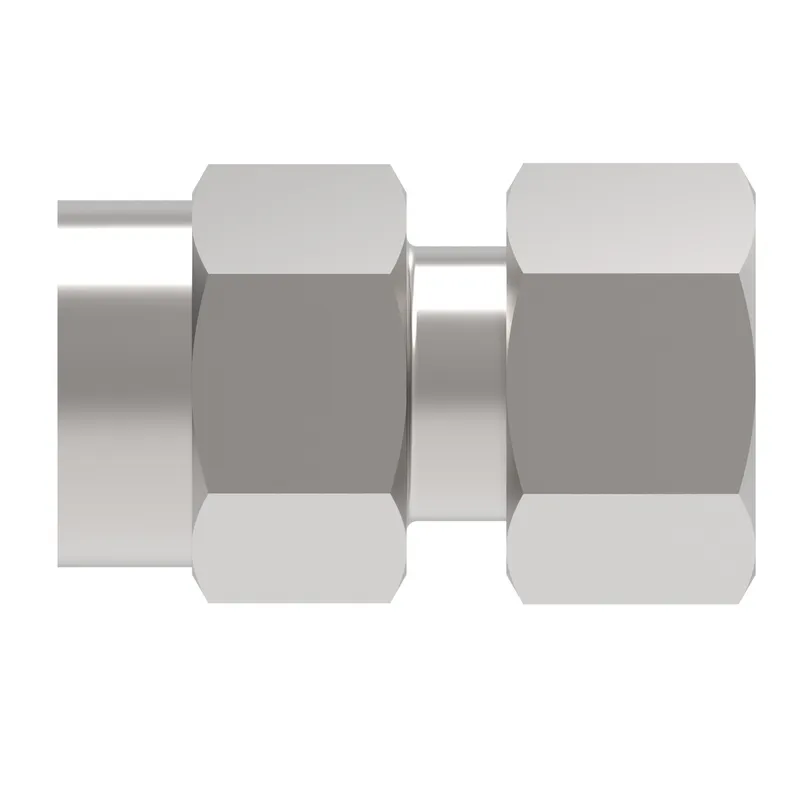

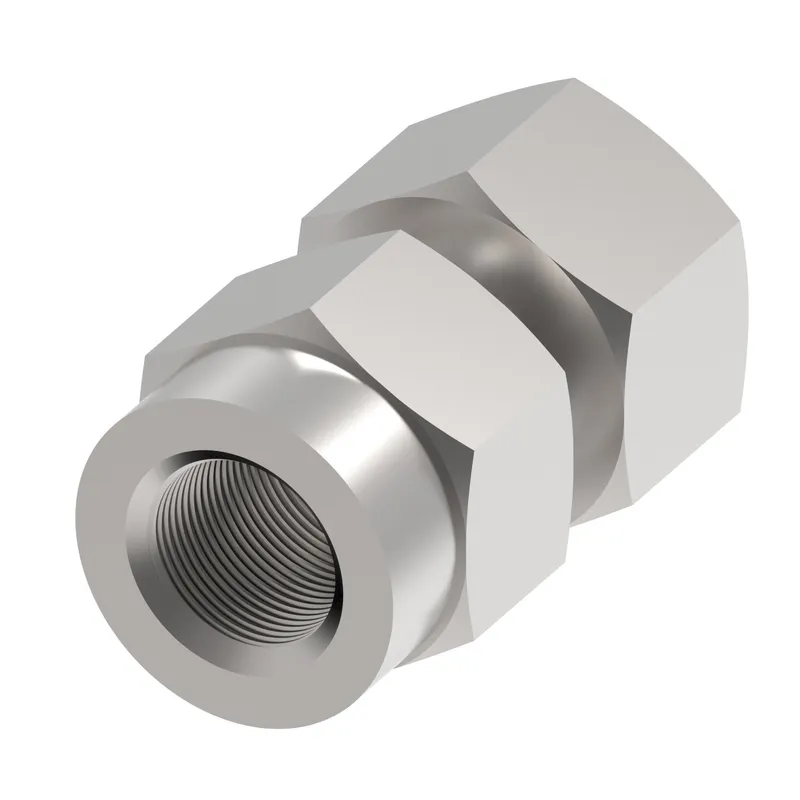

Danfoss TUBE FTG, EMASD 8 SR VI A4GS, manufacturer part number WAL613789. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Angle shape	Straight
Brand	Danfoss
Complete connector	No
End size 1	8S
End Type 1	24 deg. DKO swivel heavy duty
End Type 2	Female ISO 9974-1 port
Hex size 1 MM	27.000
Hex size 2 MM	19.000
Item type	Gauge fitting
Model Code 1	EMASD 8 SR-VI-1.4571
Product height in	1.063
Product height mm	27.000
Product length in	1.772
Product length mm	45.000
Product material	316Ti Stainless steel
Product serial name	EMASD …
Product width in	1.063
Product width mm	27
Seal material	Fluorocarbon (FKM)
Sub brand	Waltech
Thread size 1	M16x1.5
Thread size 2	M16x1.5
Tube outside diameter 1 MM	8.0
Tube outside diameter 2 MM	8.0
Working pressure bar	630.0
Working temperature max C	400
Working temperature min C	-60

WAL613789: frequently asked questions

When can WAL613789 be shipped?

WAL613789 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up WAL613789 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for WAL613789 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for WAL613789, subject to availability and destination.
