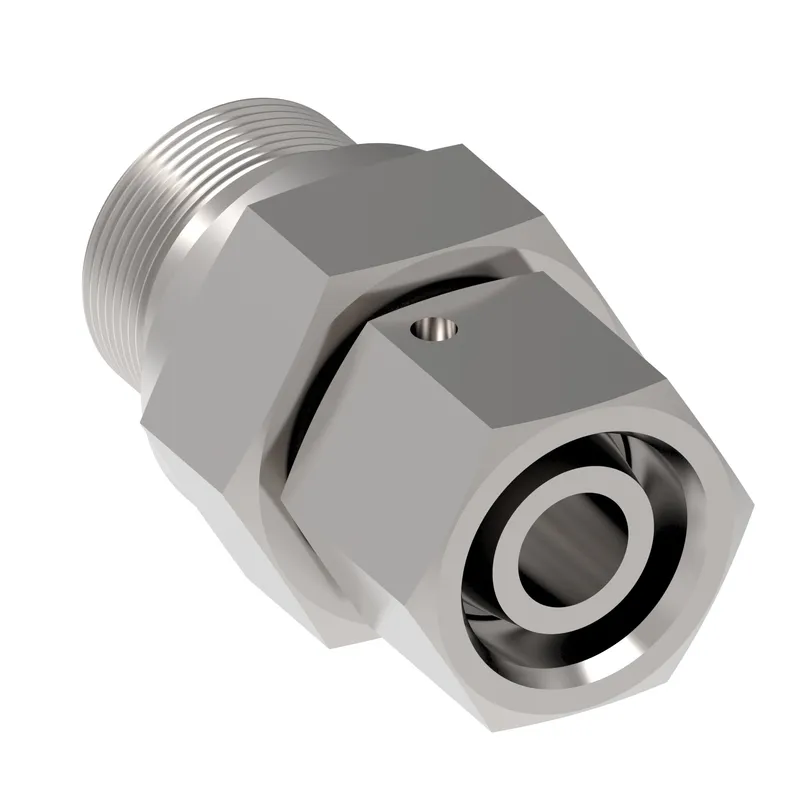

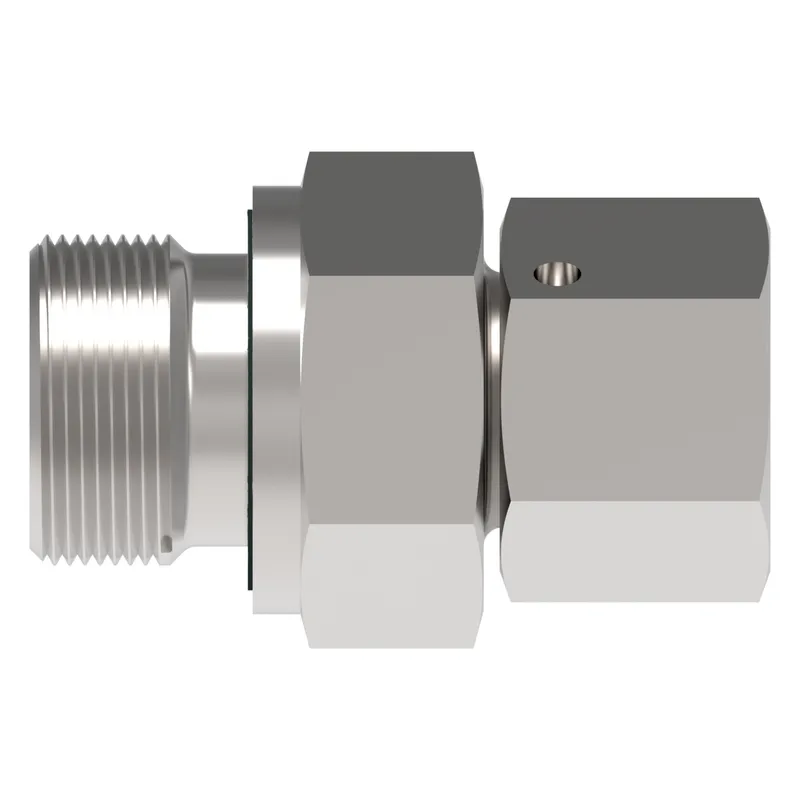

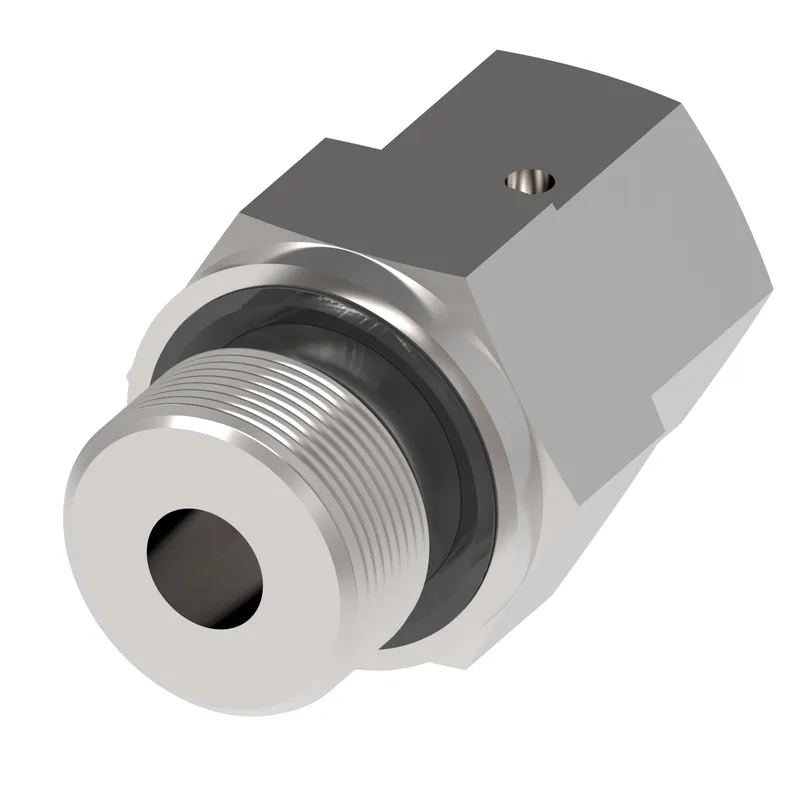

TUBE FTG, EGESD 18 L/R3/4-WD A4GS

Name: TUBE FTG, EGESD 18 L/R3/4-WD A4GS
Brand: Danfoss (Drives)
SKU: WAL613131

MPN: WAL613131 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Tube fittings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can WAL613131 be shipped?

WAL613131 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up WAL613131 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for WAL613131 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for WAL613131, subject to availability and destination.

Danfoss TUBE FTG, EGESD 18 L/R3/4-WD A4GS, manufacturer part number WAL613131. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Angle shape	Straight
Brand	Danfoss
Complete connector	No
End size 2	18L
End Type 1	Male ISO 9974-2 type E (L)
End Type 2	24 deg. DKO swivel light duty
Finish plating	Guardian Seal
Hex size 1 MM	27.000
Hex size 2 MM	32.000
Item type	Adjustable connector
Model Code 1	EGESD 18 LM-WD A4GS
Product height in	1.259
Product height mm	31.979
Product length in	1.811
Product length mm	45.999
Product material	Carbon steel
Product serial name	EGESD … M-WD
Product width in	1.259
Product width mm	31.979
Seal material	Nitrile (NBR)
Sub brand	Waltech
Thread size 2	M26x1.5
Tube outside diameter 1 MM	18.0
Tube outside diameter 2 MM	18.0
Working pressure bar	400.0
